Determination of norflurazon concentration in wheat leaves using a modified QuEChERS method*

Kamil F. Trzebuniak and Beata Mysliwa-Kurdziel*

Department of Plant Physiology and Biochemistry, Faculty of Biochemistry, Biophysics and Biotechnology, Jagiellonian University, Kraków, Poland

The aim of this analytical study was to develop and validate an easy-to-use method for measuring the actual level of norflurazon that accumulates in leaves. We amended the QuEChERS method, i.e. Quick, Easy, Cheap, Effective, Rugged, and Safe, which is widely used for pesticide and herbicide analysis in food, and usually combined with HPLC-MS detection. We adapted this method for the detection of norflurazon in leaves or leaf fragments and proposed a useful modification using of HPLC-UV detection. Reproducible retention times of 3.11±0.04 min, precision (RSD<8.0%), LOQ=315 ng ∙ mL–1 and linearity (R2=0.99874) were achieved.

Key words: norflurazon, QuEChERS, Wheat, Triticum aestivum, HPLC-UV

Received: 22 March, 2017; revised: 28 April, 2017; accepted: 01 August, 2017; available on-line: 19 August, 2017

*e-mail: b.mysliwa-kurdziel@uj.edu.pl

* This work was, in part, presented at the XLIV Winter School of the Faculty of Biochemistry, Biophysics and Biotechnology of the Jagiellonian University in Cracow “No stress – no life”, Zakopane, Poland, 14–18th February 2017.

Abbreviations: ACN, acetonitrile; DAD, diode-array detector; HPLC, high performance liquid chromatography; LOD, limit of detection; LOQ, limit of quantification; MS, mass spectrometry; NF, norflurazon; QuEChERS, quick, easy, cheap, effective, rugged, and safe; RSD, relative standard deviation; UV-Vis, ultraviolet-visible spectroscopy

INTRODUCTION

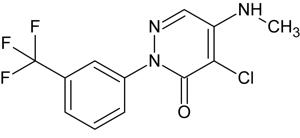

Norflurazon (4-Chloro-5-(methylamino)-2-(α,α,α-trifluoro-m-tolyl)-3(2H)-pyridazinone; NF) (Fig. 1) is a bleaching herbicide used to treat weeds. It works by inhibiting phytoene desaturase (EC 1.3.99.30) (Kümmel & Grimme, 1975; Breitenbach et al., 2001) and leads to the arrest of carotenoid synthesis (Sandmann et al., 1989). Chlorophyll excitation into an unquenched triplet state in the absence of carotenoids induces the formation of reactive oxygen species, photooxidation processes, chloroplast damage, and finally results in plant photobleaching.

NF is also useful in plant science to study the mechanisms of oxidative stress as well as their influence on photosynthesis and chloroplast biogenesis, especially retrograde chloroplast-nucleus signalling (Terry & Smith, 2013). A reduction in the expression of many nuclear genes has already been demonstrated in plants treated with this herbicide (Oelmüller et al., 1986; Strand et al., 2003; Moulin et al., 2008). However, taking into account that different ways of applying herbicides are currently used in different studies e.g. spraying (Van Aken et al., 2016) and watering (Burgess et al., 2016), explaining the NF effect and comparing results of various studies requires the actual concentration of NF in plant tissue to be determined. In the above mentioned papers the authors use a different concentration of NF, between 1.52–15.18 μg ∙ mL–1 (i.e. between 5 and 50 µmol ∙ L–1).

The QuEChERS method (quick, easy, cheap, effective, rugged, and safe) was developed in 2003 (Anastassiades et al., 2003) and found widespread application in food analysis. The method was standardised in Europe (EN 15662:2008) and in the United States (AOAC International, 2007). The most important step in the QuEChERS method is dispersive solid phase extraction using secondary-primary amine sorbents. There are multiple methods derived from the standard QuEChERS method, which focus on unusual or challenging matrices – Gil Garcia and coworkers (2017) write about over 100 variations. It has also been used in order to detect up to 450 pesticides simultaneously (Pang et al., 2006). Currently, the gold standard for pesticide and herbicide detection in food are methods based on gas or high performance liquid chromatography coupled with (tandem) mass spectrometry (HPLC-MS). This is also the detection method described in the QuEChERS procedure. Although the mass spectrometer is a very sensitive and universal detector, it is not affordable for many laboratories. When only a single (or just a few) analyte concentration needs to be determined, while keeping the chromatographic procedure short and simple, there is the possibility of using a different detector.

The aim of this study was to develop a simple QuEChERS-based method, with a diode-array-ultraviolet detector (DAD-UV), for measurements of NF concentration in juvenile wheat leaves and leaf fragments. Wheat, which is the second most cultivated crop in the world (document FAO UN, 2017), is often used for studying deetiolation due to the ease of cultivating it and its fast growth. In addition to this, being monocot plants, wheat seedlings accumulate plastids that show a developmental gradient from the pregranal plastids at the leaf base to the eldering etioplasts at the leaf tip (Solymosi & Aronsson, 2013).

MATERIALS AND METHODS

Chemicals and reagents. Norflurazon (NF) analytical standards, QuEChERS sorbents and tubes (PSA/ENVI-Carb Tube 2, suitable for EN 15662:2008 per BS) were purchased from Sigma-Aldrich. HPLC-grade acetonitrile (ACN) and water, purchased from Honeywell, were used unless indicated otherwise. Analytical grade reagents purchased from Chempur or Sigma-Aldrich were used unless indicated otherwise.

Wheat cultivation. Wheat seedlings (Triticum aestivum L.) were hydroponically cultivated on Hoagland salt (0.16 g ∙ L–1; Sigma-Aldrich) at 295 K. They were grown in darkness for 7 days and for the following 24 hours they were treated with white light of 100 µmol of photons ∙ m–2 ∙ s–1. For NF-treated samples, NF was added to the cultivation medium at the beginning of the cultivation period at a concentration of 6.1 μg ∙ mL–1. For NF-spraying experiments the culture was sprayed daily with a 6.1 μg ∙ mL–1 NF solution using a spray bottle. Care was taken to minimise spraying the cultivation medium.

The leaves were harvested under dim green light in order to prevent photoxidation of the pigments (Holden, 1965) and were cut into pieces of about 1 cm. The pieces of leaves were analysed immediately after harvesting or stored at 193 K in the absence of light.

Sample preparation. The samples were prepared using a modified QuEChERS method (European Committee for Stantarization, 2008). A pooled portion of 7.0±0.1 g of leaf fragments was collected and hand-ground with liquid nitrogen (77 K) using a pestle and mortar. The homogenate was quantitatively transferred with ACN into a 50 mL plastic tube, using 10 mL of ACN. The tube was shaken vigorously for 1 minute using a lab vortex. A buffer-salt mixture (4.0 g anhydrous magnesium sulphate(VI), 1.0 g sodium chloride, 1.0 g trisodium citrate dihydrate, 0.5 g disodium hydrogencitrate sesquihydrate) was added to the suspensions and the tubes were shaken again for 1 minute. The samples were then centrifuged for 5 minutes at 3 100 × g, at 277 K. Then the sample was placed in a freezer overnight to precipitate the waxes and sugars. After that time an aliquot of 6 mL of the ACN phase was transferred to dispersive-SPE QuEChERS tubes containing an amino-sorbent, graphitized non-porous carbon and magnesium sulphate(VI), and shaken vigorously for 2 minutes. The samples were then centrifuged for 5 minutes at 3 100 × g at 277 K. Then 5 mL of the ACN phase was transferred to a new tube, evaporated until dry and dissolved in 500 μL of the mobile phase (60% ACN in HPLC-grade water). Finally the samples were filtrated using centrifugal filtering tubes (Costar Spin-X 0.22 μm) for 90 seconds at 11 000 × g.

Chromatography and norflurazon detection. The samples were separated chromatographically using a JASCO PU-2089 Plus HPLC system with a JASCO MD-2015plus DAD-UV-VIS detector. The data were obtained using JASCO ChromPass 1.8.6.1 software. 100 µL of the sample was injected with a Rheodyne Manual Sample Injector (7725i). They were separated with a C18 column (Teknokroma TRACER EXCEL 120 ODSA 3 µm 15 × 0.4 cm). An isocratic elution with 60% ACN at 1.0 mL ∙ min–1 was used. The total run time was 5 minutes. The chromatographic system was equilibrated for at least 20 minutes with the mobile phase and a flowrate of 1.0 mL ∙ min–1 before the first run of the day. NF was detected at λ=296 nm. Additionally spectra between 200 and 400 nm were collected in order to confirm the NF identification by UV spectrum. The spectra were collected every 400 ms with a resolution of 3 nm.

Method validation. The quantitative procedure and the method validation were performed by assessing the recovery and clean-up, precision, carry-over, LOD and LOQ and linearity. SANCO guidelines on analytical quality control and validation procedures (document SANTE/11945/2015) were applied unless indicated otherwise.

For the recovery measurements, blank samples (10 mL ACN) were spiked with NF to a concentration of 0.5 μg ∙ mL–1. The samples were evaporated until dry using a rotavapor, dissolved in the mobile phase, filtered and analysed by HPLC-UV. The NF concentration was compared with the blank samples (10 mL ACN) spiked with the same amount of NF and prepared as described in the “sample preparation” section.

The method was checked for carry-over effects. First the chromatogram of a control sample consisting of a leaf extract was recorded. Then the NF spiked sample was injected. The NF concentration chosen was twice as high as in the most abundant NF-treated leaf sample. Finally a blank sample (60% ACN) was injected. All the samples were injected directly one after the other without flushing the column.

The limit of detection (LOD) was calculated by analysing the control samples (leaves not treated with NF). The sample with the highest background between 3.00 and 3.20 minutes at λ=296 nm was selected. The LOD was calculated as 3 times the height of this background. The limit of Quantification (LOQ) was assumed to be 9 times the height of the background, because at this concentration the precision appeared satisfactory.

Linearity was analysed using NF-spiked samples containing 5 μg ∙ mL–1 NF, diluted 2 fold until the calculated LOD was achieved.

Precision was calculated using data gathered from linearity experiments.

Statistical analysis. The retention time of NF was calculated by taking the mean of n=37 curves, i.e. the chromatograms recorded for all the spiked samples used in the calibration curve, those of carry-over experiments and those of all plant extracts, where NF was added to the medium or used to spray the seedlings. In all the cases the NF peak was determined by the UV spectrum. The error of retention time is presented as the calculated standard deviation (S.D.).

The recovery was calculated in triplicate, and the respective value is presented as the mean value ±S.D.

All linearity experiments were performed in triplicate. The peak amplitude was determined automatically using the software provided by the manufacturer of the HPLC-UV system (JASCO ChromPass Chromatography Data System v 1.8.6.1). Results for different concentrations are represented as the mean value ±S.D. Linear regression and slope (method sensitivity) were calculated using OriginPro 2016 b9.3.2.303 software. The results obtained for six NF concentrations were taken into account for the regression calculation.

The method precision was determined during the linearity measurements. The precision is represented as relative standard deviation (RSD) calculated separately for each concentration.

RESULTS AND DISCUSSION

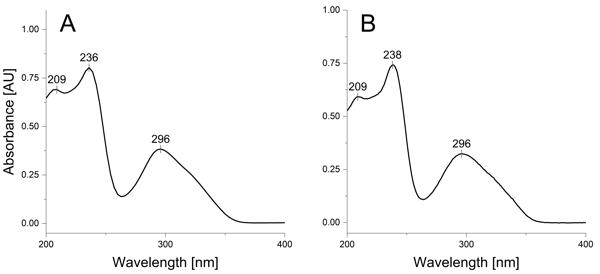

The presence of NF was confirmed by comparing the spectra recorded, with the spectra of the NF standard measured using a Jasco V-650 spectrophotometer (Fig. 2). The absorption spectrum of NF is complex and has tree maxima at 209, 238 and 296 nm. The spectra shown in Fig. 2 were virtually identical; the 2 nm difference in the position of the highest peak is within the detector’s uncertainty range. A wavelength of 296 nm was selected for NF detection due to a low and stable baseline. A wavelength of 238 nm was also tested but found unsatisfactory due to a greater baseline drift. Furthermore, a NF-treated leaf sample was analysed and spiked with additional NF. This resulted in the peak area and amplitude increasing, without a change in the retention time.

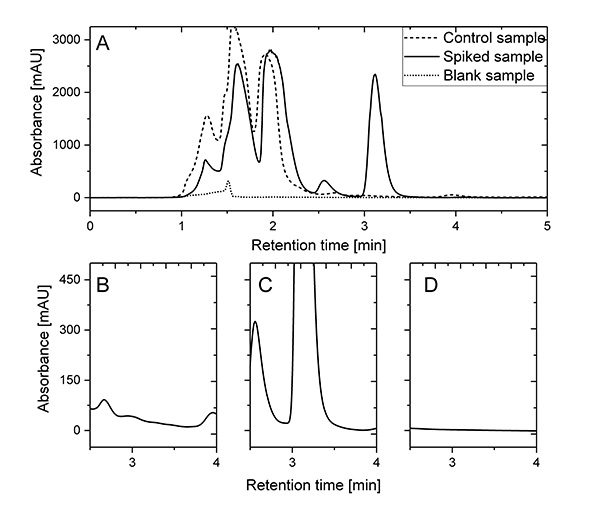

A simple, isocratic elution was used, allowing for a short total run time of 5 minutes (Fig. 3) without the need for reequilibration. We achieved a retention time of 3.11±0.04 min (n=37) and resolution above 2 (calculated using the base-width 4 sigma method (Neue, 1997). The dead time was about 1 minute, followed by a very high matrix peak between 1.25 and 2.00 minutes. The height of this peak varied between samples. Around 2.55 min there is a small peak in the NF-treated samples. It is possible that this is from some NF metabolites but we were unable to verify this unambiguously. Additionally, more elaborated elution programs were tested, but resulted in worse resolutions or longer analysis times due to the need for column reequilibration (not shown).

Recovery was calculated in triplicate for an NF concentration of 0.5 μg ∙ mL–1. The result was the recovery of 79.8±1.5% of the analyte.

Carry-over effects may result in false positive samples when a blank sample is analysed directly after a sample with a high concentration of the analyte. In order to check for those effects three chromatograms were recorded as follows: a control sample (Fig. 4B), a high NF concentration spiked sample (Fig. 4C), and a blank sample (Fig. 4D). The concentration of NF in the spiked sample was chosen so that the recorded signal was as close as possible to the highest value that can be recorded using our detector setup and is twice as large as the greatest signal recorded from NF-treated leaves. The concentration of NF measured in the final sample was below the LOD, and virtually no rise to the baseline was visible (Fig. 4A).

In order to calculate the LOD, six control samples consisting of non-NF-treated leaf extracts were analysed. The highest baseline between 3.00 and 3.20 minutes at a wavelength of 296 nm was selected for further calculations. LOD was calculated as three times the value of the baseline and was equal to 120 ng ∙ mL–1. LOQ was calculated as nine times the baseline and equalled 315 ng ∙ mL–1. These values are much smaller than those found in NF-treated plants (usually between 700 ng ∙ mL–1 and 1.50 μg ∙ mL–1) which suffer a visible bleaching effect.

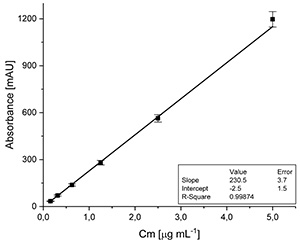

Linearity was measured in triplicate starting from a NF-spiked sample containing 5 μg ∙ mL–1 NF, diluted 2 fold until a concentration below the LOD calculated was achieved (ca. 84 ng ∙ mL–1). The sensitivity calculated was 230.5±3.7 mAU ∙ μg ∙ mL–1. A very good fit was found through the entire range measured R2=0.99874 (A=230.5 ∙ Cm–2.5; where A – absorbance in mAU, ∙Cm – mass concentration in μg ∙ mL–1) (Fig. 5).

The measurements for the linear range were used to assess the precision of the methods. The relative standard deviation (RSD) was lower than 8.0% for all measurements (ca. 6% for most measurements).

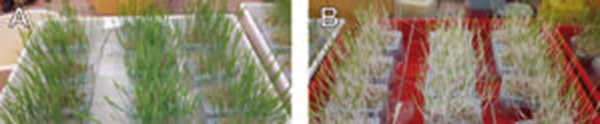

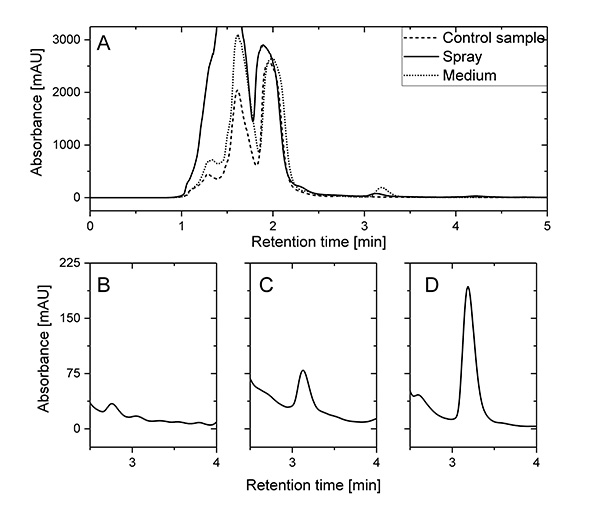

Plants treated with norflurazon are easily distinguishable from control plants due to the bleaching effect of herbicides. As demonstrated in Fig. 6 the control plants underwent greening as expected (Fig. 6A). In contrast, the NF-treated plants were mostly white or light yellow (Fig. 6B). No observable difference in leaf size was visible under our cultivation conditions.

In the literature different methods of applying NF can be found e.g. supplementation of the growth medium or spraying different parts of the plant. The concentration of NF in the growth medium or in the solution used to spray the plants is specified, but comparing the results is challenging since there is no information about the actual NF concentration in the plant tissue. We have demonstrated (Fig. 7) that the modified QuEChERS method can be helpful in this application. For the control sample the measured signal was 3.5 mAU which corresponds to 26 ng ∙ mL–1 and is far below the LOD and can be explained by random noise. The NF-sprayed sample generated a signal of 80.2 mAU, which corresponds to a NF concentration of 359±6 ng ∙ mL–1. The sample where NF was added to the growth medium provided a signal of 181.9 mAU, which corresponds to 800±13 ng ∙ mL–1. Further calculations per gram of fresh leaf mass provided a NF amount of 512±8 ng in NF-sprayed samples and of 1143±19 ng in samples supplied with NF in the growth medium.

CONCLUSION

The QuEChERS with UV-Vis detection developed and validated in this work is useful for determining the amount of NF that accumulates in a plant tissue, seedlings, leaves or leaf fragments. It is useful for comparing the distribution of NF among different parts of a plant or among leaf fragments. NF detection is not disturbed by the presence of chlorophylls in samples. Therefore this method allows us to study the influence of NF on photosynthetic processes.

Declaration of conflicting interest

The authors declare that there is no conflict of interest.

Acknowledgements

We would like to thank Agata Zubrycka, Natalia Duraczyńska, Dominika Żuk and Stanisław Listwan for their help with the sample collection.

The Faculty of Biochemistry, Biophysics and Biotechnology of the Jagiellonian University is a partner of the Leading National Research Center (KNOW) supported by the Ministry of Science and Higher Education.

This work was financially supported by grant UMO-2013/10/E/NZ3/00748 from the Polish National Science Centre (NCN).
