Acta Biochimica Polonica, Vol. 65, No 2/2018, 163–171, https://doi.org/10.18388/abp.2018_2592

Review

Phosphatidic acid – a simple phospholipid with multiple faces*

Jolanta Zegarlińska, Magda Piaścik, Aleksander F. Sikorski and Aleksander Czogalla*

Laboratory of Cytobiochemistry, Faculty of Biotechnology, University of Wrocław, Wrocław, Poland

Phosphatidic acid (PA) is the simplest glycerophospholipid naturally occurring in living organisms, and even though its content among other cellular lipids is minor, it is drawing more and more attention due to its multiple biological functions. PA is a precursor for other phospholipids, acts as a lipid second messenger and, due to its structural properties, is also a modulator of membrane shape. Although much is known about interaction of PA with its effectors, the molecular mechanisms remain unresolved to a large degree. Throughout many of the well-characterized PA cellular sensors, no conserved binding domain can be recognized. Moreover, not much is known about the cellular dynamics of PA and how it is distributed among subcellular compartments. Remarkably, PA can play distinct roles within each of these compartments. For example, in the nucleus it behaves as a mitogen, influencing gene expression regulation, and in the Golgi membrane it plays a role in membrane trafficking. Here, we discuss how a biophysical experimental approach enabled PA behavior to be described in the context of a lipid bilayer and to what extent various physicochemical conditions may modulate the functional properties of this lipid. Understanding these aspects would help to unravel specific mechanisms of PA-driven membrane transformations and protein recruitment and thus would lead to a clearer picture of the biological role of PA.

Key words: phosphatidic acid, protein-lipid interaction, signaling, membrane curvature, membrane model systems

Received: 21 March, 2018; revised: 11 May, 2018; accepted: 14 May, 2018; available on-line: 18 June, 2018

*e-mail: aleksander.czogalla@uwr.edu.pl

*This subject was presented at the 5th European Joint Theoretical/Experimental Meeting on Membranes (EJTEMM); December 6-8, 2017 Kraków, Poland

Abbreviations: BARS, brefeldin-A ADP-ribosylated substrate; CL, cardiolipin; COPI, coat protein I; DAG, diacylglycerol; DAGPP, diacylglycerolpyrophosphate; DGK, diacylglycerol kinase; DHAP AT, dihydroxyacetone phosphate acyltransferase; DMPA, dimyristoyl phosphatidic acid; DOPA, dioleoyl phosphatidic acid; DPPA dipalmitoyl phosphatidic acid; ER, endoplasmic reticulum; G-3-P AT, glycerol-3-P acyltransferase; LPA, lysophosphatidic acid; LPAAT, lysophosphatidic acid acetyltransferase; MitoPLD, mitochondrial PLD; PA, phosphatidic acid; PAP, phosphatidic acid phosphohydrolase; PC, phosphatidylcholine; PE, phosphatidylethanolamine; PI, phosphatidylinositol; PLD, phospholipase D; PM, plasma membrane; PS, phosphatidylserine

Introduction

Phosphatidic acid (PA) is a minor component of biological membranes (about 1% of phospholipids) (Buckland & Wilton, 2000). Nevertheless, its presence is critical due to the multiple roles played by this lipid within the living cell. For example, PA is a central element in synthesis and turnover of glycerophospholipids and is essential in numerous cellular functions, such as vesicular trafficking, signal transduction, cytoskeletal organization and cell proliferation (Yang & Frohman, 2012; Carman & Henry, 2013; Pleskot et al., 2013). Most of these tasks are accomplished via binding of a broad range of effector proteins and thus through regulation of their functions. PA is also able to remodel membranes by changing their physicochemical properties when it is locally concentrated, which can also affect protein functionality (Yang et al., 2008; Jang et al., 2012).

Phosphatidic acid is the simplest membrane glycerophospholipid. However, despite its simple chemical structure, the nature of the lipid itself is much more complex. Its head group charge can be altered by various environmental components, including those that undergo spatial and temporal fluctuations within a cell (Fig. 1). Numerous PA-binding proteins of various functions and cellular localizations have been so far identified in yeast, plant and mammalian cells (Testerink & Munnik, 2005; (Stace & Ktistakis, 2006). Although the exact character of PA-protein interactions is still not fully resolved, it seems that at least for some PA effectors a high specificity over other negatively charged phospholipids present in the membrane could be observed (Burger et al., 2000; daCosta et al., 2004). Moreover, the sensitivity of PA to changes in the aqueous compartment that surrounds the lipid bilayer (e.g. pH or local concentration of divalent ions) can modulate the way proteins interact with this lipid. PA plays a dual function for its partner proteins, as it may not only anchor them in the membrane but also modulate their activity (e.g. enzymatic activity). Hence, it is obvious that selectivity is required to allow a particular PA molecule to bind a specific protein at a certain time and in a particular membrane region. Thus, the issue is how the specificity of PA effectors is achieved. In this review, we summarize the current knowledge about the relationship between the local cellular conditions and the properties of PA in the context of the lipid membrane and how it may influence interactions of this lipid with proteins.

Different PA sources

PA synthesis within a cell occurs in several pathways, driven by different sets of enzymes. Because of the different substrates, cellular localization and metabolic pathways that those enzymes are involved in, it is obvious that their products are not identical in terms of their structure, behavior, and impact on cellular functions. In general, cellular PA could be divided into various pools: for example a structural one, where it functions as a precursor of glycerophospholipids and triacylglycerol, and the PA pool that plays a role as a component in signaling pathways (Fig. 2A) (Liu et al., 2013). However, most probably, the functional cross-talk between different pools of PA occurs to a large degree. In mammalian cells, structural PA is mainly synthesized de novo through two successive acylation reactions. Enzymes that take part in these pathways are two acyltransferases: glycerol-3-P acyltransferase (G-3-PAT) and dihydroxyacetone phosphate acyltransferase (DHAP AT). Lysophosphatidic acid (LPA) produced through these reactions is transformed in the second acylation step into PA (Ammar et al., 2014). PA produced through these pathways can be further converted to either diacylglycerol by phosphatidic acid phosphohydrolase (PAP), such as lipin-1 (Han & Carman, 2010), or to CDP-diacylglycerol by CDP-DAG synthetase. Both products act as sources for further synthesis of phospholipids and triacylglycerols (Vance & Vance, 2004). In yeast and plant cells, PA can be phosphorylated to diacylglycerolpyrophosphate (DAGPP). This phospholipid was identified for the first time in the Catharanthus roseus plant as a product of previously unknown PA kinase reaction (Wissing & Behrbohm, 1993). Moreover, this kinase uses only PA as a substrate to synthesize DAGPP (Wissing & Behrbohm, 1993; van Schooten et al., 2006).

Signaling species of PA are believed to be generated through the pathways driven by enzymes that belong to one of the following families: phospholipase D (PLD), diacylglycerol kinase (DGK) or lysophosphatidic acid acetyltransferase (LPPAT). PA can be generated via hydrolysis of phosphatidylcholine (PC) or cardiolipin (CL) as a result of the activity of classical phospholipase D (PLD) family members, present at most of the cytoplasmic membrane surfaces or by MitoPLD, found mainly within mitochondrial membranes (Choi et al., 2006), respectively. Primarily, two isoforms of PLD have been identified in animal cells: PLD1 and PLD2, with two splicing variants for PLD1 (PLD1a and PLD1b) and three for PLD2 (PLD2a, PLD2b and PLD2c). The structural analysis of both variants showed that they possess a highly conserved sequence, which is duplicated in all canonical PLDs: the HKD motifs (HxxxKxD) critical for enzymatic catalysis (Frohman & Morris, 1999). However, only PLD1 contains a “loop domain”, which is thought to be involved in auto-inhibition (Sung et al., 1999a; Sung et al., 1999b). The most recently discovered isoform is a mitochondrial PLD (MitoPLD), which has only one HKD motif, thus comprising half of the catalytic site, which means that it has to dimerize to be active, and it does not possess any of the classical membrane binding domains (such as PX or PH) that all of the other PLD family members have. The protein anchors into the mitochondrial membrane by its N-terminal sequence (Ammar et al., 2014). Other pathways of PA generation in the cells are phosphorylation of diacylglycerol (DAG) through the activity of DAG kinases (DGK), and acylation of lysoPA through the action of LPAAT. Also, for these enzymes different isoforms were characterized (ten for DGK and six for LPAAT in mammals cells) (Coleman & Lee, 2004; Shulga et al., 2011; Gonzalez-Baro & Coleman, 2017). Signaling PA produced by these enzymes is involved in numerous cellular processes, e.g. membrane and vesicle trafficking, cell survival and proliferation or cytoskeletal organization.

As a result of the variety of substrates and metabolic pathways described above, different species of PA may vary in length and saturation level of their fatty acyl chains. For example, since PLDs process mostly the cellular pool of PC species, their activity preferably results in generation of PA containing one saturated (e.g. palmitoyl-) and one unsaturated (e.g. oleoyl-) acyl chain. These variations are important as they may be at least partly responsible for the differences in the PA-effector interactions, in analogy to sphingomyelin-interacting transmembrane proteins (Contreras et al., 2012). Indeed, it has been shown in three different but well-characterized PA protein sensors (Spo20 and Opi1, both originating from Saccharomyces cerevisiae, and mammalian PDE4aA1) that each of them interacts with PA-enriched lipid bilayers exhibiting differences in acyl chain length and saturation level (Kassas et al., 2017). Thus, the differences in molecular architecture between different species of PA may affect the biological activity of the lipid. Remarkably, a similar phenomenon was also described for diacylglycerols (Nadler et al., 2013). These data clearly show that acyl chain composition strongly influences the lipid-protein recognition. Some hints regarding this issue come from the mTOR signaling pathways that are modulated by PA. It has been revealed that PA is required for the stabilization of two mTOR protein complexes: mTORC1 and mTORC2 (Toschi et al., 2009; Foster, 2013). Active mTORC1 stimulates protein synthesis and cell growth by phosphorylation of multiple proteins, including ribosomal S6 kinase (S6K1). On the other hand, catalytically active mTORC2 phosphorylates a different set of substrates, including a well-characterized Akt kinase (Oh & Jacinto, 2011; Laplante & Sabatini, 2012). More detailed investigation of the issue showed that different PA species may not be equal in terms of mTOR activation. PA derived from the PLD pathway activates both mTOR protein complexes; however, PA produced in the glycerolipid synthesis pathway inhibits mTORC2 complex formation (Zhang et al., 2012). Not only the PA derived from different enzymatic pathways, but also PA obtained by different types of PLD has different effect for activating/inhibiting the appropriate effector. Brefeldin-A ADP-ribosylated substrate (BARS) is required in one of the first steps in fission of transport vesicles formed by the COPI coatomer (coat protein I). It has been shown that induction of membrane curvature by BARS is dependent on PA (Yang et al., 2008). However, only PA synthesized by PLD2, and not by PLD1, exhibited such activity. PA synthesized from DAG through DGK also did not have any influence on COPI vesicle formation. Thus, the presence of PA generated by PLD2, together with BARS, is essential for vesicle formation. It was shown that depletion of PLD2 inhibited the transformation of Golgi tubules into vesicles (Yang et al., 2008). These differences may actually be related to the discrete intracellular localization of the enzymes (Fig. 2B), since PLD1 is mainly localized in intracellular membranes, such as endosomes, lysosomes, and Golgi, whereas PLD2 is found mostly in the plasma membrane (PM) (Liscovitch et al., 2000; Freyberg et al., 2001; Selvy et al., 2011; Kolesnikov et al., 2012). Moreover, intracellular transporters, such as Ups1 in yeast, which mediates PA transport between outer and inner mitochondrial membranes, contribute to localization of PA. Ups1 assembles with Mdm35, which stabilizes the lipid transporter (Connerth et al., 2012). Transfer of PA between the plasma membrane and ER is facilitated by Nir2 (Kim et al., 2016). In cells with depleted Nir2, activation of PLC leads to PA accumulation in plasma membrane. It is worth mentioning that PA transported to ER serves as a precursor for PI synthesis (through CDP-DAG pathway) and then PI is transferred from ER to PM by the Nir2 protein (Kim et al., 2016) (Fig. 2B). Interplay between local production of PA within membranes of various composition, fatty acyl chain configuration of the lipid and its biological activity still remains an open question.

Head group charge and hydrogen bond formation by PA

The extraordinary nature of PA stems from its ability to change its protonation state within the physiological pH range. The electric charge of an acid can be predicted from the pKa values of its head group and local pH changes. Thus, its electrical charge can be estimated from the Henderson-Hasselbalch (H-H) formula (Kooijman & Burger, 2009). The phosphomonoester displays two pKa values: pKa1 and pKa2, equal to 3.2 and 7.9 respectively. Exhibiting these two pKa values, PA also shows the unusual ability to form intramolecular hydrogen bonds. However, these features are only relevant in the context of bilayers composed of PC. Under physiological conditions, the ionization of PA is thought to be sensitive to the molecular organization of the lipid membrane, in particular to the presence of other lipids, such as PE or cholesterol (Kooijman et al., 2005a; Kooijman & Burger, 2009), and thus formation of hydrogen bonds is affected (Fig. 3). The deprotonation effect of the PA monoester head group, observed in PC:PE mixed bilayers, is caused by intermolecular hydrogen bond formation. In contrast to PC, which possesses a quaternary amine, PE has a primary amine, which makes it a much better hydrogen bond donor (Kooijman et al., 2005a). Moreover, the arrangement of the PE and PC head groups in the membrane differs, the PE head groups being more parallel to the membrane surface (Langner & Kubica, 1999). This intermolecular hydrogen bond between two membrane lipids will destabilize the intramolecular hydrogen bond within the phosphomonoester head group, decreasing the second dissociation constant (to 6.89 ± 0.05) (Kooijman et al., 2005a). This issue is of high physiological importance due to the fact that in different cellular compartments (i.e. membranes of various composition) PA may interact with its effectors in different ways. For example, in the endoplasmic reticulum (ER), PA is surrounded by PC at a level over 50%, while in the inner leaflet of the plasma membrane phosphatidylserine (PS) and PE are present at much higher concentrations (Kooijman & Burger, 2009). This increased deprotonation of PA by PE was found to increase association of the Yas3p protein (an Opi1 family transcription repressor) with PA (Kobayashi et al., 2013). Similar PE-assisted modulation of PA was observed while studying Spo20 (Horchani et al., 2014), a protein from the SNARE family that mediates spore formation in yeasts.

Changes in composition of the water phase that surrounds the lipid bilayer are also highly influential in regard to the PA head group. PA has been described as a cellular pH-biosensor, the protonation state of which may fluctuate in response to slight changes in pH (Fig. 1). Thus, the binding of its effectors is pH-dependent. This was proposed for the transcription repressor Opi1, one of the PA-binding proteins in yeasts (Young et al., 2010). The protein is sequestered at the ER membranes, where it interacts with PA. When PA is depleted or when the intracellular pH decreases, Opi1 migrates to the nucleus, where it regulates transcription of various genes, especially INO1, which is responsible for inositol synthesis (Carman & Henry, 2013). Under glucose starvation, cytoplasmic acidification occurs (pH decreases to around 6), which stimulates Opi1 release from the ER due to increased protonation of PA. Thus, the lipid mediates translation of intracellular pH fluctuations into changes in localization of the transcription repressor (Young et al., 2010). Alterations of the PA molecule itself also had an influence on the binding characteristics. Methyl-PA, which has a methyl group substituted on the phosphate, has only one pKa value. The binding specificity of Opi1 to the modified PA remains unaffected, but the binding is not that strong and is pH independent within the tested pH range (Young et al., 2010). Another example of all of these phenomena is lipin-1, which binds with high specificity to PA in a pH- and membrane composition-dependent manner (Eaton et al., 2013). Lipin-1 is a phosphatidic acid phosphatase, which is involved in the de novo synthesis of phospholipids and triacylglycerides. However, to fulfill its catalytic function, it has to translocate from the cytosol to the membrane, where it specifically binds to PA. Lipin-1 preferentially binds to di-anionic PA, meaning that such interactions occur preferably in the presence of hydrogen-bond donor molecules (PE or amphiphilic amines) and are dependent on pH (Eaton et al., 2013).

Moreover, the PA head group charge can be also influenced by proteins. The number of identified PA effectors is large, but no distinguishable binding domain or structural motif responsible for interactions with this lipid has been described so far. Nevertheless, it may be concluded that PA-interacting proteins have some common features (Fig. 4). All of the best studied PA binding partners, e.g. Opi1 (Loewen et al., 2004), Spo20 (Tritarelli et al., 2004), and Raf-1 kinase (Ghosh et al., 2003), have clusters of basic, positively charged amino acids in their PA-binding sites (Ghosh & Bell, 1997; Testerink & Munnik, 2005; Kooijman & Burger, 2009) (Fig. 4C). Thus, one would think that the interactions between PA and arginine/lysine residues would be solely electrostatic in nature, but also hydrogen bonding occurs, which altogether assures the specificity towards PA. This phenomenon has been called the hydrogen bond switch model and was proposed for the first time by Kooijman (Kooijman et al., 2007). Arginine and lysine residues possess amine groups in their side chain that are strong hydrogen bond donors and are prone to interact with membranes containing singly charged PA. At first, a protein probes the membrane until it finds PA and interacts with it by means of electrostatic attraction. Upon shortening the distance between the protein and the lipid, a hydrogen bond is formed and a proton dissociates from the phosphomonoester group of PA. This event switches the head group charge from –1 to –2 (Fig. 3C) and makes the electrostatic attraction stronger (Kooijman et al., 2007). Substitution of lysines and/or arginines with alanines usually blocks protein binding to the PA-enriched membrane, proving the importance of these residues for specific binding to this lipid. Opi1 can be given as an example of such occurrence. Amino acids responsible for the Opi1–PA interaction are Lys136Lys137Arg138 (Fig. 4C). Substitution of these residues with alanine caused loss of pH sensitivity in the range of 6.4-7.6 (Young et al., 2010). This means that only direct interactions between PA and its effector are pH dependent and confirms that presence of Arg and/or Lys residues is essential for such interactions. However, it is not necessary for the protein to have both types of residues within the binding domain. On the other hand, these two amino acid residues are not equal in terms of influencing the head group of PA, since arginine seems to be a weaker hydrogen bond donor. This difference is a consequence of the differences in the chemical structure of the side chains of both residues, and a bond formed with Arg is longer (by approx. 0.1 Å) than a bond formed by Lys (Kooijman et al., 2007). Detailed analysis of the PA binding proteins shows that the presence of Arg and Lys is essential but not sufficient for stable interaction with the lipid. Development of a synthetic, tetravalent PA-binding motif, described as PAB-TP (phosphatidic acid-binding tetravalent peptide), showed that tryptophan, as well as histidine residues are required for stabilization of such interactions. This synthetic peptide contains an amino acid stretch with the sequence MARWHRHHH and is able to bind to phosphatidic acid present in lipid bilayers at a concentration as low as 1% (Ogawa et al., 2015). All of these amino acid residues seem to play an important role in natural PA receptors – for example, the FRB domain of mTOR, which binds with high specificity to PA (Veverka et al., 2008).

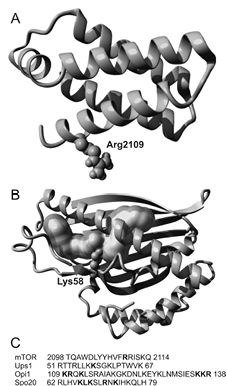

The hydrogen bond switch model also explains PA recognition via proteins over other negatively charged lipids, e.g. phosphatidylserine. This lipid also carries a negative charge and its concentration in biological membranes (particularly in the inner leaflet of the plasma membrane) is relatively high, yet PA binding partners either do not recognize PS or recognize it very weakly. The main reason for this is that, theoretically, PA protonation states vary between three values (0, –1, –2), whereas PS has only two (0 and –1). PA recognition has been summarized in the hydrogen bond switch model, where the “switch” represents the ability of PA to be present in various protonation states (Kooijman et al., 2007). Modification of the PA head group by esterification effectively inhibits binding of effectors, as it makes the switching mechanism no longer possible (Ghosh & Bell, 1997). The electrostatic/hydrogen bond switch model also explains the protein recognition of PA over lysophosphatidic acid (LPA). The latter has a phosphomonoester head group, similarly to PA; however, instead of two acyl chains there is only one and a hydroxyl group at the glycerol backbone. This difference in the chemical architecture of the LPA molecule makes the hydrogen bond switch irrelevant, as the hydrogen bond formed between the hydroxyl group and phosphate head group disables hydrogen bonding with neighboring molecules (Fig. 3) (Pascher & Sundell, 1985; Kooijman et al., 2005a).

Membrane curvature induced by PA

PA is generally considered as a lipid that induces negative curvature in lamellar lipid structures, which facilitates membrane fusion and fission in various organelles, e.g. in mitochondria (Choi et al., 2006) and formation of secretory vesicles during cellular trafficking (Huang et al., 2005; Yang et al., 2008). Local enrichment in PA within the membrane may be responsible for the negative curvature formation but also facilitates recruitment of a particular set of proteins to the membrane (Yang & Frohman, 2012).

In general, the shape of lipid molecules is determined by the packing parameter, and it determines the ability of lipids to form distinct lipid aggregates in an aqueous environment (Cullis et al., 1986; Mouritsen, 2011). The packing parameter (P) is equal to v/(al), where v is the molecular volume, a is the polar head group cross sectional area, and l is the length of the molecule. For different lipids, the packing parameter may be equal to, higher or lower than one (Escribá et al., 1997; Mouritsen, 2011; Jouhet, 2013), while for phosphatidic acid the value of this parameter is always higher than one. It means that under physiological conditions it has the shape of a cone, which allows loose packing of PA head groups in the membrane and hence a stronger propensity to create packing defects within the bilayer. This enables relatively easy penetration of the hydrophobic core of the bilayer by PA-recognizing proteins. Moreover, cone-shaped lipids, such as PE and PA (P>1), tend to induce curvature of a negative character, and create structures such as the inverted micelles or inverted hexagonal phase (HII) (Cullis & de Kruijff, 1986; Chernomordik & Kozlov, 2003; Di Paolo & De Camilli, 2006; Zimmerberg & Kozlov, 2006).

Negative curvature induced by PA can be regulated by pH, temperature and salt concentrations (Kooijman et al., 2005b). Ion concentration and pH influence the actual size of the PA head group. Because the PA head group is negatively charged, its cross sectional area is apparently bigger due to the electrostatic repulsion (e.g. at higher PA concentration or when other negatively charged phospholipids are present in the membrane environment). This effect can be modulated by monovalent and divalent cations or by variations in pH which change ionization of the PA head groups (Träuble & Eibl, 1974; Cullis & de Kruijff, 1986; Pomorski et al., 2014). While studying the effects of salt concentration, it was found that in pure water PA behaves as if it had a cylindrical shape. Studies at pH 7.0 and physiological salt concentration (150 mM of NaCl) proved that the PA-enriched monolayer has a negative spontaneous curvature under these conditions. Remarkably, further increase in salt concentration did not enhance this effect. Such results were obtained for di-oleoyl PA/di-oleoyl PE (DOPA/DOPE) mixed lipid monolayers, with DOPA concentration ranging from 0 to 35 mol%. It has been suggested that this effect correlates with decreased repulsion between head groups, as electrolytes reduce it, resulting in smaller effective size of the lipid head groups (Kooijman et al., 2005b). In another set of experiments, a supported lipid bilayer made of DOPC/DOPA/NBD-PC was examined in buffers containing 250 mM KCl (50 mM MES, 0.1 mM EDTA, pH 5) (Cambrea & Hovis, 2007). When the ionic strength of the buffer above the supported bilayer (distally to the support) was lowered (50 mM KCl), the bilayer tended to bend away from the glass slide, and this effect was observed only for a narrow range of PA concentrations (11–20 mol%). When PA was exchanged for PG, which is also a negatively charged lipid, the bilayer did not bend away from the support. This shows that besides specific ionic conditions, a particular concentration of PA in the bilayer is also essential for curvature generation (Cambrea & Hovis, 2007).

Not only monovalent ions influence the ability of PA to generate curvature. Several studies have shown that the negative curvature generated by PA is more pronounced at low pH and in the presence of divalent cations (Verkleij et al., 1982; Farren et al., 1983; Kooijman et al., 2003). Early investigation of DOPA aggregation at different pH values showed that the lipid at pH higher than or equal to 6.0 prefers lamellar organization (Farren et al., 1983). Much attention was also given to investigate the influence of divalent ions on structural and thermotropic properties of PA (van Dijck et al., 1978; Farren et al., 1983; Kouaouci et al., 1985). The requirement of calcium ions for the formation of non-lamellar structures by this lipid may be related to the fact that these ions usually play an important role in endo- and exocytosis (Yao et al., 2009; Yamashita et al., 2010). Introducing Ca2+or Mg2+ (Me2+/DOPA molar ratio = 0.5) at pH up to 6.0 caused formation of structures in the HII phase (Farren et al., 1983). Increasing the level of divalent cations (Me2+/DOPA molar ratio =1.0) induced disorganization of these structures, and formation of an intermediate between the lamellar and HII phases (Farren et al., 1983). At high pH (~11) calcium binds PA in the molar ratio of 1:1, whereas at physiological and acidic pH calcium binds to PA in the molar ratio of 1:2 (Fig. 1) (Boughriet et al., 1988; Takahashi et al., 1995; Kooijman et al., 2003). This effect of Ca2+ binding seems to be strongly reliant on the PA head group charge, which arises from its pKa2. Other studies using differential scanning calorimetry and X-ray diffraction to analyze aggregates composed of two saturated PA species, di-myristoyl PA (DMPA) and di-palmitoyl PA (DPPA), showed that when calcium ions were present (at physiological pH), no gel-to-liquid crystalline phase transition was observed within temperature ranging from 10°C to 80°C (van Dijck et al., 1978; Liao & Prestegard, 1981). On the other hand, each of the two factors (divalent ions and pH fluctuations) separately did not affect the curvature of membranes containing PA, but taking together high divalent cation concentrations and low pH drives PA to such a behavior. Similar results were obtained using 31P-NMR (Kooijman et al., 2003). When single-lipid systems composed of DOPA were studied at neutral pH, no negative curvature was observed, even in the presence of Ca2+ (Me2+/DOPA molar ratio =1.0). Remarkably, doubling the concentration of Ca2+ or Mg2+ or changing the pH to 5.0 (in the absence of divalent cations) gave the same results. In conclusion, in a single lipid bilayer system, DOPA forms a lamellar phase, which is to a large extent independent of pH or divalent ion concentration. However, when alternative conditions were examined (pH 5 and Ca2+/DOPA molar ratio =0.2 and higher), it caused the local phase transition to the HII phase. These observations may be related to cellular physiology, as each subcellular compartment is unique in terms of pH value and ion concentrations. Examination of the DOPA bilayer behavior under conditions resembling the Golgi lumen (0.3 mM Ca2+, pH range from 6.0 to 7.2) showed that below pH 6.8 the bilayer presented a mixed lamellar/ HII character, with a 5% and 60% HII bilayer at pH 6.4 and 6.0, respectively. Thus, the conditions in the Golgi lumen favor the HII phase of DOPA (Kooijman et al., 2003). Moreover, the effect of calcium and pH was assessed in mixed-lipid systems (PE with 10% PA) (Kooijman et al., 2003). The results confirmed that in the presence of divalent cations and in a slightly acidic environment PA behaves like a cone-shape lipid. Hence, one can assume that the bilayer-to-HII phase transitions (for PA-rich membranes) would be more likely in an intra-Golgi environment, rather than under cytosolic conditions.

Miscibility of lipids can vary in respect to several aspects (Carruthers & Melchior, 1983; Vaz, 1994), which may result in the increase of local concentration of PA, and thus may induce negative curvature and attract PA-binding proteins. The mixing behavior of PA/PC mixtures has been investigated using multiple experimental methods, such as Langmuir monolayers, differential scanning calorimetry (DSC) and molecular dynamics (MD) simulations (Garidel et al., 1997a; Garidel et al., 1997b; Estrela-Lopis et al., 2004; Vila-Vicosa et al., 2014; Kwolek et al., 2015; Santos et al., 2015). Miscibility of PA/PC species of the same (e.g. DPPA/DPPC or DMPA/DMPC) or different chain lengths (e.g. DPPA/DMPC) depends on pH, as the latter affects ionization of PA. Moreover, miscibility depends on the PA concentration. At neutral pH, PA carries one negative charge per molecule; therefore head group repulsion between PA molecules and hydrogen bonds between PA and PC favors mixing of these lipids. When pH drops to acidic (4.0), hydrogen bonds between PA molecules become more preferred, which results in clustering (Garidel et al., 1997a; Vila-Vicosa et al., 2014; Santos et al., 2015). Non-ideal mixing behavior was also observed with increasing PA content in the mixture (Estrela-Lopis et al., 2004; Kwolek et al., 2015). For example, phase separation for DPPA-rich domains and DPPC-rich domains could be observed in mixed monolayers containing 12 mol% of PA (Estrela-Lopis et al., 2004). Furthermore, results from MD simulations are in correlation with the “umbrella model” (Huang & Feigenson, 1999), according to which PA molecules bearing one negative charge are partially shielded by large head groups of PC. In these simulations PA molecules were located about 0.2–0.4 nm deeper in the bilayer than PC. In the case of di-anionic PA, ionic bridges were formed with sodium ions, leading to clustering of PA (Broemstrup & Reuter, 2010; Kwolek et al., 2015). All of these observations indicate that lipid packing and miscibility are sensitive to pH. Presence of PE in the membrane at slightly acidic pH triggers the PA-induced negative curvature. On the other hand, inclusion of diacylglycerol (DAG), which is also a lipid that prefers formation of HII phases, decreases protein binding to PA (Putta et al., 2016). Moreover, lipids which support positive membrane curvature seem to significantly lower the protein binding to PA. A gradual increase (5–15 mol%) of lysophosphatidylcholine (LPC) in the membrane lowered Opi1 binding to PA, whereas LPC at higher concentrations (25 mol%) completely inhibited this binding. A similar effect of decreased PA binding was also observed with two other proteins, which are defined as PA-binding partners: ECA1 and the PH2 domain of PDK1 protein, which suggests that this effect is more common (Putta et al., 2016).

Concluding remarks

The unique physicochemical properties of PA, which are manifested by modulatory effects on the lipid bilayer and specific recruitment of proteins, allow it to play multiple specific roles in cellular physiology. For example, PA is essential for membrane sculpting processes and numerous signaling pathways. Discrete fluctuations in the environment of PA molecules can affect their protonation state, which drastically changes their interactions with protein partners. Although much is known about the nature of PA, its full characteristics are still unknown. Major questions concern the exact mechanisms of binding with its protein effectors and whether there are some common features of PA binding domains that distinguish them from other lipid-binding domains. Another intriguing question is how divalent ions affect protein binding to PA and whether this mechanism is common for all of these ions. Namely, are these effects related to signaling processes that involve PA and where Ca2+ ions usually play a pivotal role, contrary to e.g. Mg2+ ions? These and many other issues still await exploration, making PA one of the most interesting membrane lipids.

Conflict of interest statement

The Authors declare no conflict of interest.

Acknowledgements of Financial Support

This work was supported by the Polish Ministry of Science and Higher Education within the program “Iuventus Plus” in the years 2015–2016. Project No. IP2014 007373. Aleksander Czogalla was further supported by the National Science Centre, Poland, grant 2016/21/B/NZ1/02821.

References

Ammar MR, Kassas N, Bader MF, Vitale N (2014) Phosphatidic acid in neuronal development: A node for membrane and cytoskeleton rearrangements. Biochimie 107: 51–57. doi: 10.1016/j.biochi.2014.07.026

Boughriet A, Ladjadj M, Bicknell-Brown E (1988) Calcium-induced condensation-reorganization phenomena in multilamellar vesicles of phosphatidic acid. pH potentiometric and 31P-NMR, Raman and ESR spectroscopic studies. Biochim Biophys Acta – Biomembr 939: 523–532. doi: 10.1016/0005-2736(88)90099-5

Broemstrup T, Reuter N (2010) Molecular Dynamics Simulations of Mixed Acidic/Zwitterionic Phospholipid Bilayers. Biophys J 99: 825–833. doi: 10.1016/j.bpj.2010.04.064

Buckland AG, Wilton DC (2000) Anionic phospholipids, interfacial binding and the regulation of cell functions. Biochim Biophys Acta – Mol Cell Biol Lipids 1483: 199–216. doi: 10.1016/S1388-1981(99)00188-2

Burger KNJ, Demel RA, Schmid SL, De Kruijff B (2000) Dynamin is membrane-active: Lipid insertion is induced by phosphoinositides and phosphatidic acid. Biochemistry 39: 12485–12493. doi: 10.1021/bi000971r

Cambrea LR, Hovis JS (2007) Formation of three-dimensional structures in supported lipid bilayers. Biophys J 92: 3587–3594. doi: 10.1529/biophysj.106.101139

Carman GM, Henry SA (2013) Phosphatidic acid plays a central role in the transcriptional regulation of glycerophospholipid synthesis in Saccharomyces cerevisiae. J Biol Chem 282: 37293–37297. doi: 10.1074/jbc.R700038200.Phosphatidic

Carruthers A, Melchior DL (1983) Study of the relationship between bilayer water permeability and bilayer physical state. Biochemistry 22: 5797–5807. doi: 10.1021/bi00294a018

Chernomordik LV, Kozlov MM (2003) Protein-lipid interplay in fusion and fission of biological membranes. Annu Rev Biochem 72: 175–207. doi: 10.1146/annurev.biochem.72.121801.161504

Choi SY, Huang P, Jenkins GM, Chan DC, Schiller J, Frohman MA (2006) A common lipid links Mfn-mediated mitochondrial fusion and SNARE-regulated exocytosis. Nat Cell Biol 8: 1255–1262. doi: 10.1038/ncb1487

Coleman RA, Lee DP (2004) Enzymes of triacylglycerol synthesis and their regulation. Prog Lipid Res 43: 134–176. doi: 10.1016/S0163-7827(03)00051-1

Connerth M, Tatsuta T, Haag M, Klecker T, Westermann B, Langer T (2012) Intramitochondrial transport of phosphatidic acid in yeast by a lipid transfer protein. Science (80-) 338: 815–818. doi: 10.1126/science.1225625

Contreras FX, Ernst AM, Haberkant P, Björkholm P, Lindahl E, Gönen B, Tischer C, Elofsson A, Von Heijne G, Thiele C, Pepperkok R, Wieland F, Brügger B (2012) Molecular recognition of a single sphingolipid species by a protein’s transmembrane domain. Nature 481: 525–529. doi: 10.1038/nature10742

Cullis PR, de Kruijff B (1986) Lipid polymorphism and the roles of lipids in membranes. Chem Phys Lipids40: 127–144. doi: 10.1016/0009-3084(86)90067-8

Cullis PR, de Kruijff B, Verkleij AJ, Hope MJ (1986) Lipid polymorphism and membrane fusion. Biochem Soc Trans 14: 242–245. doi: 10.1042/bst0140242

daCosta CJB, Wagg ID, McKay ME, Baenziger JE (2004) Phosphatidic acid and phosphatidylserine have distinct structural and functional interactions with the nicotinic acetylcholine receptor. J Biol Chem 279: 14967–14974. doi: 10.1074/jbc.M310037200

van Dijck PWM, de Kruijff B, Verkleij AJ, van Deenen LLM, de Gier J (1978) Comparative studies on the effects of pH and Ca2+ on bilayers of various negatively charged phospholipids and their mixtures with phosphatidylcholine. BBA – Biomembr 512: 84–96. doi: 10.1016/0005-2736(78)90219-5

Eaton JM, Mullins GR, Brindley DN, Harris TE (2013) Phosphorylation of lipin 1 and charge on the phosphatidic acid head group control its phosphatidic acid phosphatase activity and membrane association. J Biol Chem 288: 9933–9945. doi: 10.1074/jbc.M112.441493

Escribá PV, Ozaita A, Ribas C, Miralles A, Fodor E, Farkas T, García-Sevilla JA (1997) Role of lipid polymorphism in G protein-membrane interactions: Nonlamellar-prone phospholipids and peripheral protein binding to membranes. Proc Natl Acad Sci 94: 11375–11380. doi: 10.1073/pnas.94.21.11375

Estrela-Lopis I, Brezesinski G, Möhwald H (2004) Miscibility of DPPC and DPPA in monolayers at the air/water interface. Chem Phys Lipids 131: 71–80. doi: 10.1016/j.chemphyslip.2004.04.005

Fang Y, Vilella-Bach M, Bachmann R, Flanigan A, Chen J (2001) Phosphatidic acid-mediated mitogenic activation of mTOR signaling. Science 294: 1942–1945. doi: 10.1126/science.1066015

Farren SB, Hope MJ, Cullis PR (1983) Polymorphic phase preferences of phosphatidic acid: A 31P and 2H NMR study. Biochem Biophys Res Commun 111: 675–682. doi: 10.1016/0006-291X(83)90359-5

Foster DA (2013) Phosphatidic acid and lipid-sensing by mTOR. Trends Endocrinol Metab 24: 272–278. doi: 10.1016/j.tem.2013.02.003

Freyberg Z, Sweeney D, Siddhanta a, Bourgoin S, Frohman M, Shields D (2001) Intracellular localization of phospholipase D1 in mammalian cells. Mol Biol Cell 12: 943–955, doi: 10.1091/mbc.12.4.943

Frohman MA, Morris AJ (1999) Phospholipase D structure and regulation. Chem Physics Lipids 98: 127–140. doi:  10.1016/S0009-3084(99)00025-0

Garidel P, Johann C, Blume A (1997a) Nonideal mixing and phase separation in phosphatidylcholine–phosphatidic acid mixtures as a function of acyl chain length and pH. Biophys J 72: 2196–2210. doi: 10.1016/S0006-3495(97)78863-5

Garidel P, Johann C, Mennicke L, Blume A (1997b) The mixing behavior of pseudobinary phosphatidylcholine–phosphatidylglycerol mixtures as a function of pH and chain length. Eur Biophys J 26: 447–459. doi: 10.1007/s002490050099

Ghosh S, Bell RM (1997) Regulation of raf-1 kinase by interaction with the lipid second messenger, phosphatidic acid. Biochem Soc Trans 25: 561–565. doi:  10.1042/bst0250561

Ghosh S, Moore S, Bell RM, Dush M (2003) Functional analysis of a phosphatidic acid binding domain in human Raf-1 kinase: Mutations in the phosphatidate binding domain lead to tail and trunk abnormalities in developing zebrafish embryos. J Biol Chem 278: 45690–45696. doi: 10.1074/jbc.M302933200

Gonzalez-Baro MR, Coleman RA (2017) Mitochondrial acyltransferases and glycerophospholipid metabolism. Biochim Biophys Acta – Mol Cell Biol Lipids 1862: 49–55. doi: 10.1016/j.bbalip.2016.06.023

Hajra AK (1997) Dihydroxyacetone phosphate acyltransferase. Biochim Biophys Acta – Lipids Lipid Metab 1348: 27–34. doi: 10.1016/S0005-2760(97)00120-3

Han GS, Carman GM (2010) Characterization of the human LPIN1-encoded phosphatidate phosphatase isoforms. J Biol Chem 285: 14628–14638. doi: 10.1074/jbc.M110.117747

Horchani H, De Saint-Jean M, Barelli HL, Antonny B (2014) Interaction of the Spo20 membrane-sensor motif with phosphatidic acid and other anionic lipids, and influence of the membrane environment. PLoS One 9: 1–22. doi: 10.1371/journal.pone.0113484

Huang J, Feigenson GW (1999) A microscopic interaction model of maximum solubility of cholesterol in lipid bilayers. Biophys J 76: 2142–2157. doi: 10.1016/S0006-3495(99)77369-8

Huang P, Altshuller YM, Hou JC, Pessin JE, Frohman MA (2005) Insulin-stimulated plasma membrane fusion of Glut4 glucose transporter-containing vesicles is regulated by phospholipase D1. Mol Biol Cell 16: 2614–2623. doi: 10.1091/mbc.E04

Jang J-H, Lee CS, Hwang D, Ryu SH (2012) Understanding of the roles of phospholipase D and phosphatidic acid through their binding partners. Prog Lipid Res 51: 71–81. doi: 10.1016/j.plipres.2011.12.003

Jouhet J (2013) Importance of the hexagonal lipid phase in biological membrane organization. Front Plant Sci 4: 494. doi: 10.3389/fpls.2013.00494

Kassas N, Tanguy E, Thahouly T, Fouillen L, Heintz D, Chasserot-Golaz S, Bader MF, Grant NJ, Vitale N (2017) Comparative characterization of phosphatidic acid sensors and their localization during frustrated phagocytosis. J Biol Chem 292: 4266–4279. doi: 10.1074/jbc.M116.742346

Kim YJ, Guzman-Hernandez ML, Wisniewski E, Echeverria N, Balla T (2016) Phosphatidylinositol and phosphatidic acid transport between the ER and plasma membrane during PLC activation requires the Nir2 protein. Biochem Soc Trans 44: 197–201. doi: 10.1042/BST20150187

Kobayashi S, Hirakawa K, Horiuchi H, Fukuda R, Ohta A (2013) Phosphatidic acid and phosphoinositides facilitate liposome association of Yas3p and potentiate derepression of ARE1 (alkane-responsive element one)-mediated transcription control. Fungal Genet Biol 61: 100–110. doi: 10.1016/j.fgb.2013.09.008

Kolesnikov YS, Nokhrina KP, Kretynin S V, Volotovski ID, Martinec J, Romanov G a, Kravets VS (2012) Molecular structure of phospholipase D and regulatory mechanisms of its activity in plant and animal cells. Biochem Biokhimiia 77: 1–14. doi: 10.1134/S0006297912010014

Kooijman EE, Burger KNJ (2009) Biophysics and function of phosphatidic acid: A molecular perspective. Biochim Biophys Acta – Mol Cell Biol Lipids 1791: 881–888. doi: 10.1016/j.bbalip.2009.04.001

Kooijman EE, Carter KM, Van Laar EG, Chupin V, Burger KNJ, De Kruijff B (2005a) What makes the bioactive lipids phosphatidic acid and lysophosphatidic acid so special? Biochemistry 44: 17007–17015. doi: 10.1021/bi0518794

Kooijman EE, Chupin V, Fuller NL, Kozlov MM, De Kruijff B, Burger KNJ, Rand PR (2005b) Spontaneous curvature of phosphatidic acid and lysophosphatidic acid. Biochemistry 44: 2097–2102. doi: 10.1021/bi0478502

Kooijman EE, Chupin V, de Kruijff B, Burger KNJ (2003) Modulation of membrane curvature by phosphatidic acid and lysophosphatidic acid. Traffic 4: 162–174. doi: 10.1034/j.1600-0854.2003.00086.x

Kooijman EE, Tieleman DP, Testerink C, Munnik T, Rijkers DTS, Burger KNJ, De Kruijff B (2007) An electrostatic/hydrogen bond switch as the basis for the specific interaction of phosphatidic acid with proteins. J Biol Chem 282: 11356–11364. doi: 10.1074/jbc.M609737200

Kouaouci R, Silvius JR, Graham I, Pezolet M (1985) Calcium-induced lateral phase separations in phosphatidylcholine-phosphatidic acid mixtures. a raman spectroscopic study. Biochemistry 24: 7132–7140. doi: 10.1021/bi00346a017

Kwolek U, Kulig W, Wydro P, Nowakowska M, Róg T, Kepczynski M (2015) Effect of phosphatidic acid on biomembrane: experimental and molecular dynamics simulations study. J Phys Chem B 119: 10042–10051. doi: 10.1021/acs.jpcb.5b03604

Langner M, Kubica K (1999) The electrostatics of lipid surfaces. Chem Phys Lipids 101: 3–35. doi: 10.1016/S0009-3084(99)00052-3

Laplante M, Sabatini DM (2012) MTOR signaling in growth control and disease. Cell 149: 274–293. doi: 10.1016/j.cell.2012.03.017

Liao MJ, Prestegard JH (1981) Structural properties of a Ca2+-phosphatidic acid complex Small angle x-ray scattering and calorimetric results. BBA – Biomembr 645: 149–156. doi: 10.1016/0005-2736(81)90523-X

Liscovitch M, Czarny M, Fiucci G, Tang X (2000) Phospholipase D: molecular and cell biology of a novel gene family. Biochem J 345 Pt 3: 401–415. doi: 10.1016/j.bbamem.2013.10.003

Liu Y, Su Y, Wang X (2013) Phosphatidic Acid-Mediated Signaling. In Lipid-Mediated Protein Signaling, D.G.S. Capelluto ed, pp. 159–176. Dordrecht: Springer Netherlands

Loewen CJR, Gaspar ML, Jesch SA, Delon NT (2004) Phospholipid metabolism regulated by a transcription factor sensing phosphatidic acid. Science (80-) 304: 1644–1647.doi: 10.1126/science.1096083

Mouritsen OG (2011) Lipids, curvature, and nano-medicine. Eur J Lipid Sci Technol 113: 1174–1187. doi: 10.1002/ejlt.201100050

Nadler A, Reither G, Feng S, Stein F, Reither S, Müller R, Schultz C (2013) The fatty acid composition of diacylglycerols determines local signaling patterns. Angew Chemie – Int Ed 52: 6330–6334. doi: 10.1002/anie.201301716

Nakanishi H, de los Santos P, Neiman AM (2004) Positive and negative regulation of a SNARE protein by control of intracellular localization. Mol Biol Cell 15: 1802–1815. doi: 10.1091/mbc.e03-11-0798

Ogawa R, Nagao K, Taniuchi K, Tsuchiya M, Kato U, Hara Y, Inaba T, Kobayashi T, Sasaki Y, Akiyoshi K, Watanabe-Takahashi M, Nishikawa K, Umeda M (2015) Development of a novel tetravalent synthetic peptide that binds to phosphatidic acid. PLoS One 10: 1–18. doi: 10.1371/journal.pone.0131668

Oh WJ, Jacinto E (2011) mTOR complex 2 signaling and functions. Cell Cycle 10: 2305–2316. doi: 10.4161/cc.10.14.16586

Di Paolo G, De Camilli P (2006) Phosphoinositides in cell regulation and membrane dynamics. Nature 443: 651–657. doi: 10.1038/nature05185

Pascher I, Sundell S (1985) Interactions and space requirements of the phosphate head group in membrane lipids. The Crystal structure of disodium lysophosphatidate dihydrate. Chem Phys Lipids 37: 241–250. doi: 10.1016/0009-3084(85)90012-X

Pleskot R, Li J, Žárský V, Potocký M, Staiger CJ (2013) Regulation of cytoskeletal dynamics by phospholipase D and phosphatidic acid. Trends Plant Sci 18: 496–504. doi: 10.1016/j.tplants.2013.04.005

Pomorski TG, Nylander T, Cárdenas M (2014) Model cell membranes: Discerning lipid and protein contributions in shaping the cell. Adv Colloid Interface Sci 205: 207–220. doi: 10.1016/j.cis.2013.10.028

Putta P, Rankenberg J, Korver RA, van Wijk R, Munnik T, Testerink C, Kooijman EE (2016) Phosphatidic acid binding proteins display differential binding as a function of membrane curvature stress and chemical properties. Biochim Biophys Acta – Biomembr 1858: 2709–2716. doi: 10.1016/j.bbamem.2016.07.014

Santos HAF, Vila-Viçosa D, Teixeira VH, Baptista AM, Machuqueiro M (2015) Constant-pH MD Simulations of DMPA/DMPC Lipid Bilayers. J Chem Theory Comput 11: 5973–5979. doi: 10.1021/acs.jctc.5b00956

van Schooten B, Testerink C, Munnik T (2006) Signalling diacylglycerol pyrophosphate, a new phosphatidic acid metabolite. Biochim Biophys Acta - Mol Cell Biol Lipids 1761: 151–159. doi: 10.1016/j.bbalip.2005.12.010

Selvy EP, Lavieri RR, Lindsley WC, Brown HA (2011) Phospholipase D – enzymology, functionality, and chemical modulation. Chem Rev 111: 6064–6119. doi: 10.1109/TMI.2012.2196707.Separate

Shulga YV, Topham MK, Epand RM (2011) Regulation and functions of diacylglycerol kinases. Chem Rev 111: 6186–6208. doi: 10.1021/cr1004106

Stace CL, Ktistakis NT (2006) Phosphatidic acid- and phosphatidylserine-binding proteins. Biochim Biophys Acta – Mol Cell Biol Lipids 1761: 913–926. doi: 10.1016/j.bbalip.2006.03.006

Sung TC, Altshuller YM, Morris AJ, Frohman MA (1999a) Molecular analysis of mammalian phospholipase D2. J Biol Chem 274: 494–502. doi: 10.1074/jbc.274.1.494

Sung TC, Zhang Y, Morris AJ, Frohman MA (1999b) Structural analysis of human phospholipase D1. J Biol Chem 274: 3659–3666. doi: 10.1074/jbc.274.6.3659

Takahashi H, Yasue T, Ohki K, Hatta I (1995) Structural and thermotropic properties of calcium-dimyristoylphosphatidic acid complexes at acidic and neutral pH conditions. Biophys J 69: 1464–1472. doi: 10.1016/S0006-3495(95)80016-0

Testerink C, Munnik T (2005) Phosphatidic acid: A multifunctional stress signaling lipid in plants. Trends Plant Sci 10: 368–375. doi: 10.1016/j.tplants.2005.06.002

Toschi A, Lee E, Xu L, Garcia A, Gadir N, Foster DA (2009) Regulation of mTORC1 and mTORC2 Complex Assembly by Phosphatidic Acid: Competition with Rapamycin. Mol Cell Biol 29: 1411–1420. doi: 10.1128/MCB.00782-08

Träuble H, Eibl H (1974) Electrostatic effects on lipid phase transitions: membrane structure and ionic environment. Proc Natl Acad Sci U S A 71: 214–219. doi: 10.1073/pnas.71.1.214

Tritarelli A, Oricchio E, Ciciarello M, Mangiacasale R, Palena A, Lavia P, Soddu S, Cundari E (2004) p53 Localization at centrosomes during mitosis and postmitotic checkpoint are ATM-dependent and require serine 15 phosphorylation. Mol Biol Cell 15: 3751–3737. doi: 10.1091/mbc.E03

Vance JE, Vance DE (2004) Phospholipid biosynthesis in mammalian cells. Biochem Cell Biol 82: 113–128. doi: 10.1139/o03-073

Vaz WLC (1994) Diffusion and chemical reactions in phase-separated membranes. Biophys Chem 50: 139–145. doi: 10.1016/0301-4622(94)85026-7

Verkleij AJ, de Maagd R, Leunissen-Bijvelt J, de Kruijff B (1982) Divalent cations and chlorpromazine can induce non-bilayer structures in phosphatidic acid-containing model membranes. BBA – Biomembr 684: 255–262. doi: 10.1016/0005-2736(82)90014-1

Veverka V, Crabbe T, Bird I, Lennie G, Muskett FW, Taylor RJ, Carr MD (2008) Structural characterization of the interaction of mTOR with phosphatidic acid and a novel class of inhibitor: compelling evidence for a central role of the FRB domain in small molecule-mediated regulation of mTOR. Oncogene 27: 585–595. doi: 10.1038/sj.onc.1210693

Vila-Vicosa D, Teixeira VH, Santos HAF, Baptista AM, Machuqueiro M (2014) Treatment of ionic strength in biomolecular simulations of charged lipid bilayers. J Chem Theory Comput 10: 5483–5492. doi: 10.1021/ct500680q

Watanabe Y, Tamura Y, Kawano S, Endo T (2015) Structural and mechanistic insights into phospholipid transfer by Ups1-Mdm35 in mitochondria. Nat Commun 6: 1–12. doi: 10.1038/ncomms8922

Wendel AA, Lewin TM, Coleman RA (2009) Glycerol-3-phosphate acyltransferases: Rate limiting enzymes of triacylglycerol biosynthesis. Biochim Biophys Acta 1791: 501–506. doi: 10.1016/j.bbalip.2008.10.010.Glycerol-3-phosphate

Wissing JB, Behrbohm H (1993) Diacylglycerol pyrophosphate, a novel phospholipid compound. FEBS Lett 315: 95–99. doi: 10.1016/0014-5793(93)81141-L

Yamashita T, Eguchi K, Saitoh N, von Gersdorff H, Takahashi T (2010) Developmental shift to a mechanism of synaptic vesicle endocytosis requiring nanodomain Ca2+. Nat Neurosci 13: 838–844. doi: 10.1038/nn.2576

Yang CY, Frohman MA (2012) Mitochondria: Signaling with phosphatidic acid. Int J Biochem Cell Biol 44: 1346–1350. doi: 10.1016/j.biocel.2012.05.006

Yang J-S, Gad H, Lee SY, Mironov A, Zhang L, Beznoussenko G V., Valente C, Turacchio G, Bonsra AN, Du G, Baldanzi G, Graziani A, Bourgoin S, Frohman MA, Luini A, Hsu VW (2008) A role for phosphatidic acid in COPI vesicle fission yields insights into Golgi maintenance. Nat Cell Biol 10: 1146–1153. doi: 10.1038/ncb1774

Yao CK, Lin YQ, Ly CV., Ohyama T, Haueter CM, Moiseenkova-Bell VY, Wensel TG, Bellen HJ (2009) A synaptic vesicle-associated Ca2+ channel promotes endocytosis and couples exocytosis to endocytosis. Cell 138: 947–960. doi: 10.1016/j.cell.2009.06.033

Young BP, Shin JJH, Orij R, Chao JT, Li SC, Guan XL, Khong A, Jan E, Wenk MR, Prinz WA, Smits GJ, Loewen CJR (2010) Phosphatidic acid is a pH biosensor that links membrane biogenesis to metabolism. Science (80-) 329: 1085–1088. doi: 10.1126/science.1191026

Zhang C, Wendel AA, Keogh MR, Harris TE, Chen J, Coleman RA (2012) Glycerolipid signals alter mTOR complex 2 (mTORC2) to diminish insulin signaling. Proc Natl Acad Sci U S A 109: 1667–1672. doi: 10.1073/pnas.1110730109

Zimmerberg J, Kozlov MM (2006) How proteins produce cellular membrane curvature. Nat Rev Mol Cell Biol 7: 9–19. doi: 10.1038/nrm1784
