Acta Biochimica Polonica, Vol. 65, No 3/2018, 341–349, https://doi.org/10.18388/abp.2018_2635

Review

Crosstalk between the TGF-β and WNT signalling pathways during cardiac fibrogenesis*

Edyta Działo1, Karolina Tkacz1 and Przemysław Błyszczuk1,2,*

1Department of Clinical Immunology, Jagiellonian University Medical College, Kraków, Poland; 2Center of Experimental Rheumatology, Department of Rheumatology, University Hospital Zürich, Switzerland

Cardiac fibrosis is referred to as an excessive accumulation of stromal cells and extracellular matrix proteins in the myocardium. Progressive fibrosis causes stiffening of the cardiac tissue and affects conduction of electrical impulses, leading to heart failures in a broad range of cardiac conditions. At the cellular level, activation of the cardiac stromal cells and myofibroblast formation are considered as hallmarks of fibrogenesis. At the molecular level, transforming growth factor β (TGF-β) is traditionally considered as a master regulator of the profibrotic processes. More recently, the WNT signalling pathway has also been found to be implicated in the development of myocardial fibrosis. In this review, we summarize current knowledge on the involvement of TGF-β and WNT downstream molecular pathways to cardiac fibrogenesis and describe a crosstalk between these two profibrotic pathways. TGF-β and WNT ligands bind to different receptors and trigger various outputs. However, a growing body of evidence points to cross-regulation between these two pathways. It has been recognized that in cardiac pathologies TGF-β activates WNT/β-catenin signalling, which in turn stabilizes the TGF-β/Smad response. Furthermore both, the non-canonical TGF-β and non-canonical WNT signalling pathways, activate the same mitogen-activated protein kinases (MAPKs): the extracellular signal-regulated kinase (Erk), the c-Jun N-terminal kinases (JNKs) and p38. The crosstalk between TGF-β and WNT pathways seems to play an essential role in switching on the genetic machinery initiating profibrotic changes in the heart. Better understanding of these mechanisms will open new opportunities for development of targeted therapeutic approaches against cardiac fibrosis in the future.

Key words: TGF-beta, Smad, WNT, beta-catenin, RhoA-ROCK, p38, JNK, Erk1/2, MAPK, cardiac fibrosis, tissue remodelling, cardiac fibroblasts, heart

Received: 12 April, 2018; revised: 09 June, 2018; accepted: 22 June, 2018; available on-line: 24 July, 2018

*e-mail: przemyslaw.blyszczuk@uj.edu.pl

*A preliminary report on this subject was presented at the 45th Winter School of the Faculty of Biochemistry, Biophysics and Biotechnology, Jagiellonian University in Krakow, Zakopane, Poland, February 9th–14th 2018.

Abbreviations: α-SMA, alpha-smooth muscle actin; ATF3, activating transcription factor 3; ECM, extracellular matrix proteins; Erk, extracellular signal-regulated kinas; GSK-3β, glycogen synthase kinase-3β; IL, interleukin; JNK, c-Jun N-terminal kinase; LEF, lymphoid enhancer factor; LOX, lysyl oxidase; LRP, lipoprotein receptor-related protein; MAPKs, mitogen-activated protein kinases; MAPKK, MAPK kinase; MAPKKK, MAPKK kinase; MRTF, myocardin-related transcription factors; mTOR, mammalian target of rapamycin; PAI-1, plasminogen activator inhibitor-1; PI3K, phosphatidylinositol-3-kinase; PKC, protein kinase C; PLC, phospholipase C; ROCK, Rho-associated, coiled-coil-containing protein kinase; sFRPs, secreted Frizzled-related proteins; Smad, homologues of the Caenorhabditis elegans “Sma” and Drosophila “MAD” (“Mothers Against Decapentaplegic”); SRF, serum response factor; TAK1, TGF-β-activated kinase 1; TAZ, transcriptional coactivator with PDZ-binding motif; TCF, T-cell factor; TGF-β, transforming growth factor β; TIMP-1, tissue inhibitor of metalloproteinase 1; TRPC6, transient receptor potential canonical 6; uPA, urokinase-type plasminogen activator; WIF1, WNT-inhibitory factor 1; WISP-1, WNT1-induced secreted protein-1; WNT, wingless-type MMTV integration site family member; YAP, yes-associated protein 1

Introduction

Cardiac fibrosis is characterized as an excessive accumulation of stromal cells and extracellular matrix proteins (ECM) in the myocardium (Li et al., 2018). A broad range of pathologic cardiac conditions including myocardial infarction, hypertension, myocarditis, hypertrophic or dilated cardiomyopathy is associated with cardiac tissue remodelling and fibrosis development (Kong et al., 2014). Fibrogenesis in the heart can be considered either as a repair or pathogenic process. In case of substantial loss of native cardiac tissue, as for example following myocardial infarction, the damaged tissue is replaced by stromal cells preventing organ rupture. In cardiac conditions without a loss of healthy tissue, fibrogenesis has no evident benefits and should be classified as a pathogenic process. Fibrosis causes not only stiffening of the cardiac tissue leading to impaired mechanical contraction, but also can affect conduction of electrical impulses. Progressive fibrosis is, therefore, one of the major causes of heart failure.

Fibroblasts and myofibroblasts represent the most extensively characterised stromal cell types involved in fibrotic processes in the heart. In the traditional view, resident cardiac fibroblasts become activated, proliferate and became myofibroblasts, which produce an excessive amount of ECM proteins, such as collagen type I and III. Myofibroblasts are characterised by expression of alpha-smooth muscle actin (α-SMA), which upregulates their contractile activity and represents the most reliable marker of these cells (Gabbiani, 2003; Kurose & Mangmool, 2016; Travers et al., 2016). Growing body of evidence indicated that other cells present in the heart, including bone marrow-derived cells, epicardial epithelial cells and endothelial cells, can also contribute to myofibroblasts’ formation (Haudek et al., 2006; Kania et al., 2009; Zeisberg et al., 2007; Zhou & Pu, 2011). Activation of fibroblasts and myofibroblast lineage differentiation is induced by various environmental stimuli and intracellular molecules including profibrotic factors, such as transforming growth factor β (TGF-β), the WNT proteins, members of renin-angiotensin-aldosterone system, yes-associated protein 1 (YAP)/transcriptional coactivator with PDZ-binding motif (TAZ) transcriptional regulators or various cytokines and chemokines (Kong et al., 2014; Piersma et al., 2015). These multiple profibrotic inputs activate a complex signalling network that orchestrates fibrotic response at the cellular and organ levels. To build a comprehensive model of cardiac fibrogenesis, a better understanding of crosstalks between individual pathways is needed. In this review, we specifically discuss the TGF-β and WNT downstream molecular pathways activated during cardiac fibrogenesis, with a special focus on the interplay between them.

TGF-β-dependent signalling pathways in cardiac fibrosis

TGF-β is a ubiquitously expressed pleiotropic cytokine controlling numerous cellular processes, including proliferation, differentiation, cytoskeletal reorganisation, and ECM protein synthesis. Beside its role in the development, cancer and in maintenance of immunological tolerance, TGF-β is considered as a master regulator of fibrogenesis (Meng et al., 2016; Yoshimura & Muto, 2011). TGF-β protein occurs in three isoforms: TGF-β1, -β2 and -β3, which are encoded by distinct genes, but bind to the same receptors (Yoshimura & Muto, 2011). After translation, the TGF-β protein is produced in a latent form. Activation of TGF-β requires proteolytic cleavage and separation of two polypeptides from the active TGF-β form. Plasma membrane-bound integrins and extracellular proteases, such as plasmin and certain matrix metalloproteinases, are typically involved in cleavage of the latent TGF-β complex (Tran, 2012). Active TGF-β binds to the transmembrane TGF-β type II receptor, which in turn recruits and activates the TGF-β type I receptor. This stimulation initiates signal transduction through a canonical Smad-dependent and a number of Smad-independent signalling pathways. The ultimate consequence of the TGF-β signalling is transcriptional dysregulation of target genes which control cell proliferation and production of structural and ECM proteins, such as collagens, laminins, fibronectin and many others (Branton & Kopp, 1999). TGF-β-dependent mechanisms contribute to fibrotic processes not only in the heart, but also in other organs, including kidney, liver, lung or skeletal muscle (Biernacka et al., 2011; Dooley & ten Dijke, 2012; Germano et al., 2009; Leask, 2007; Meng et al., 2015; Paw et al., 2017; Tatler & Jenkins, 2012, Li et al., 2004).

TGF-β represents a key profibrotic cytokine in cardiac fibrogenesis and inhibition of its action successfully reduced or prevented fibrosis development in various animal models of cardiac disorders. In myocardial infarction model, TGF-β blockage with anti-TGF-β antibodies reduced collagen deposition and affected ECM protein production. Dysregulated tissue remodelling and insufficient scar formation in post-infarcted heart resulted in an increased mortality due to tissue rupture (Frantz et al., 2008; Ikeuchi et al., 2004). In a rat model of pressure overload, neutralizing anti-TGF-β antibody successfully suppressed fibrosis and thereby prevented the development of diastolic dysfunction (Kuwahara et al., 2002). Similar anti-fibrotic effects of anti-TGF-β antibody delivery were observed in a mouse model of experimental autoimmune myocarditis (Kania et al., 2009) and in a genetic model of spontaneous hypertrophic cardiomyopathy (Teekakirikul et al., 2010). In a pressure overload model, the delivery of anti-TGF-β antibody inhibited profibrotic changes in cardiac interstitial cells, but not in cardiomyocytes. Interestingly, cardiomyocyte-specific deletion of TGF-β type II receptor suppressed not only cardiac hypertrophy, but also tissue remodelling induced by aortic banding, suggesting interplay between different cellular subsets and paracrine action of various profibrotic factors during cardiac fibrogenesis (Koitabashi et al., 2011).

Integrins and plasmin play important roles in proteolytic activation of TGF-β. In cardiac fibroblasts, αvβ5 and αvβ3 integrins promote latent TGF-β1 activation and control myofibroblast differentiation (Sarrazy et al., 2014). It has been shown that activity of urokinase-type plasminogen activator (uPA) – an enzyme converting plasminogen to plasmin, also controls tissue remodelling in the heart. Accordingly, mice overexpressing uPA developed spontaneous cardiac fibrosis (Moriwaki et al., 2004), whereas mice lacking this enzyme showed impaired scar formation in the post-infarcted heart (Heymans et al., 1999). Plasminogen activator inhibitor-1 (PAI-1) is a potent inhibitor of uPA. It has been reported that lack of PAI-1 enhanced myocardial fibrosis in aged mice. Importantly, PAI-deficient mice showed elevated TGF-β1 and 2 levels, as well as activation of the TGF-β downstream signalling pathway (Ghosh et al., 2010). All of these data highlighted the pivotal role of TGF-β in cardiac fibrosis.

Smad-dependent signalling

The canonical response to TGF-β involves Smad proteins and is referred to as Smad-dependent. Based on their function, Smad proteins can be classified into three categories: receptor activated Smads (R-Smad), common mediator Smads (Co-Smad) and inhibitory Smads (I-Smad). The TGF-β type I receptor specifically recognizes R-Smads (Smad2 and Smad3) and phosphorylates them. Phosphorylated R-Smads bind to the Co-Smad protein (Smad4) forming a functional Smad2/3/4 complex, which is translocated into nucleus and takes part in binding to the DNA sequences. Selectivity and affinity of the Smad2/3/4 complex for specific DNA structures is low and activation of a specific promoter strongly depends on interaction of the Smad2/3/4 complex with other transcription factors. In contrast to R-Smads and Co-Smad, I-Smads (Smad6 and Smad7) are involved in repression of signal transduction. Smad6 competes with Smad4 for binding to R-Smad, whereas Smad7 binds to the TGF-β receptors (Hata et al., 1998; Hayashi et al., 1997; Mehra & Wrana, 2002). Smad-dependent pathway is the main transducer of the TGF-β signalling and has been shown to play a key role in cardiac fibrogenesis in a number of in vivo and in vitro models. In a rat model of myocardial infarction, increased TGF-β levels in the scar tissue correlated with elevated abundance of Smad2, Smad3 and Smad4 proteins (Hao et al., 1999). Furthermore, Wang et al. demonstrated that an elevated level of TGF-β parallels with reduced amount of inhibitory Smad7 in the infarcted hearts for up to 8 weeks (Wang et al., 2002). The functional contribution of the Smad-dependent pathway following myocardial infarction has been confirmed in Smad3-deficient mice, which showed reduced collagen III production and attenuated fibrosis in the infarcted hearts (Bujak et al., 2007). Smad3-deficient mice also developed reduced fibrosis induced by angiotensin II infusion (Huang et al., 2010). In the pressure overload model, TGF-β-Smad signalling in cardiac fibroblasts has been also implicated in the development of myocardial fibrosis. Fibroblast-specific deletion of
Tgfbr1/2 or Smad3, but not Smad2, markedly reduced the pressure overload-induced fibrosis and inhibited synthesis of the ECM proteins (Khalil et al., 2017). Furthermore, ex vivo study on rat cardiac fibroblasts demonstrated that TGF-β-induced collagen synthesis requires the Smad3/4 activity (Shyu et al., 2010). Mechanistically, pharmacological inhibition of Smad3/4 in the TGF-β-activated fibroblasts suppressed transcription of endoglin – a membrane glycoprotein constituting a part of the TGF-β receptor complex. In addition, cardiac fibroblasts treated with Smad3 inhibitor also pointed to an important role of the lysyl oxidase (LOX) – an enzyme that is necessary for cross-linking of collagen proteins (Voloshenyuk et al., 2011). All of these data demonstrated the importance of the TGF-β-Smad axis in the development of cardiac fibrosis.

Smad-independent signalling

Stimulated TGF-β type I receptor activates not only the Smad-dependent response, but also triggers a number of Smad-independent signalling cascades, distinct from transcription. The signalling system involving phosphatidylinositol-3-kinase (PI3K) and protein kinase B, also known as Akt, represents one example of the TGF-β-induced signal transduction pathway, which is independent of Smad proteins. In this pathway, activated PI3K phosphorylates and activates the Akt kinase, which in turn modulates several downstream effectors, such as glycogen synthase kinase-3β (GSK-3β), mammalian target of rapamycin (mTOR) and many others (Oudit et al., 2004; Zhang, 2009; Peterson & Schreiber, 1998). The importance of PI3K/Akt signalling pathway has been implicated in specific aspects of cardiac fibrosis (Oudit et al., 2004). In particular, PI3K/Akt pathway was required for increased collagen synthesis in cardiac fibroblasts (Voloshenyuk et al., 2011). Furthermore, blockage of TGF-β dependent phosphorylation of Akt resulted in decreased expression of the LOX enzyme (Voloshenyuk et al., 2011). Inhibition of PI3K and Akt also indicated the importance of this pathway in TGF-β-dependent endoglin expression (Shyu et al., 2010). The PI3K/Akt pathway in cardiac fibrosis is, however, not regulated exclusively by TGF-β. The direct impact of this pathway on cardiac fibrosis was also proved upon interleukin (IL)-18 and β-adrenergic stimulation (Oudit et al., 2003; Fix et al., 2011).

Another example of Smad-independent TGF-β signal transduction is a signalling pathway dependent on the RhoA-ROCK axis (Heasman & Ridley, 2008). RhoA belongs to the Rho GTP-ase family and functions as a “switch-protein”, transforming between active GTP-bound (RhoA-GTP) and inactive GDP-bound (RhoA-GDP) forms (Hubchak et al., 2009; Tsou et al., 2014; Zhan & Kanwar, 2014). The main effectors of RhoA pathway are Rho-associated, coiled-coil-containing protein kinases (ROCKs) existing in two isoforms, ROCK1 and ROCK2. ROCKs regulate various important cellular functions, including proliferation, migration, differentiation, cytoskeleton reorganisation and apoptosis (Shimizu & Liao, 2016). Experiments on various animal models indeed confirmed the importance of ROCKs in cardiac fibrogenesis. In ischemia-reperfusion model, ROCK1-/- mice showed a markedly reduced collagen deposition. Furthermore, ROCK1 was shown to mediate transformation of bone marrow precursors into fibroblasts (Haudek et al., 2009). ROCK1–/– mice also developed less perivascular and interstitial fibrosis in the pressure overload model induced by transverse aortic banding (Zhang et al., 2006). Experiments with haploinsufficient ROCK1+/– mice showed that partial reduction in ROCK1 levels was sufficient to prevent perivascular fibrosis induced by angiotensin II infusion, pressure overload or myocardial infarction (Rikitake et al., 2005). The profibrotic role of ROCK1 was also confirmed in mice overexpressing Gαq, which develop cardiomyopathy at an old age. In this model, deletion of ROCK1 reduced myocardial fibrosis, while cardiac-specific overexpression of ROCK1 caused acceleration of heart failure, cardiomyocyte apoptosis and fibrotic changes (Shi et al., 2010). In these fibrotic processes, ROCK1 is involved in myofibroblast differentiation and stress fibre formation (Hubchak et al., 2009; Shimizu & Liao, 2016). On the molecular level, ROCKs control polymerisation of monomeric G-actin into F-actin – a major component of stress fibres. ROCKs were also shown to release myocardin-related transcription factors (MRTF), which together with serum response factor (SRF) induce expression of the profibrotic genes (Small et al., 2010; Tsou et al., 2014).

Stimulation with TGF-β can also result in direct activation of non-canonical response dependent on mitogen-activated protein kinases (MAPKs), which transmit the signal from the cell membrane to the nucleus and regulate gene expression. Conventional MAPKs include the extracellular signal-regulated kinase 1 and 2 (Erk1/2 or p44/42), the c-Jun N-terminal kinases (JNKs) and the p38 isoforms (α, β, γ, and δ). Signal transduction typically consists of a core module of three sequentially phosphorylated kinases: MAPK, MAPK kinase (MAPKK), and MAPKK kinase (MAPKKK) (Petrich & Wang, 2004). MAPKs play important role in the effector response, as they regulate the activity of transcriptional cofactors cooperating with Smad proteins (Feng & Derynck, 2005; Lee et al., 2007). The functional contribution of MAPKs to cardiac fibrosis has been documented in the literature. In a mouse model of myocardial infarction, enhanced phosphorylation of Erk1/2 and JNK were reported to correlate with an increased degree of fibrosis (Sun et al., 2015), however other report confirmed an increased phosphorylation of p38 and Erk1/2, but not JNK (Yeh et al., 2010). In a rat model of pressure overload, all three major effector MAPKs: p38, Erk1/2 and JNK, became activated. Treatment with retinoic acid inhibited phosphorylation of these MAPKs and attenuated pathogenic cardiac remodelling (Choudhary et al., 2008). Recent data showed that inducible deletion of Mapk14 (gene encoding p38α) in cardiac fibroblasts reduced the fibrotic response in post-infarcted heart (Molkentin et al., 2017). Study with TGF-β antagonist in spontaneously hypertensive rats confirmed involvement of p38 in cardiac fibrogenesis (Yan et al., 2009). In hypertensive heart, p38 is controlled by the injury responsive activating transcription factor 3 (ATF3) (Li et al., 2017). Furthermore, TGF-β signalling through p38 controls the transient receptor potential canonical 6 (TRPC6), which promotes conversion of cardiac fibroblast to myofibroblast (Davis et al., 2012). Furthermore, all three MAPKs: p38, Erk1/2 and JNK have been also suggested to regulate TGF-β-dependent LOX expression in cardiac fibroblasts (Voloshenyuk et al., 2011). Activation of Erk1/2-dependent pathway has been also functionally implicated in cardiac fibrosis. Mice with a laminin A/C gene mutation develop myocardial fibrosis, which depends on activation of the TGF-β-Erk1/2 axis. Interestingly, Erk1/2 activation was in part modulated by the TGF-β/Smad signalling (Chatzifrangkeskou et al., 2016). Moreover, TGF-β and Erk1/2 are also activated by high glucose in a mouse model of diabetic cardiomyopathy. Treatment with antioxidants suppressed activation of TGF-β and Erk1/2 and prevented development of myocardial fibrosis in this model (Wu et al., 2016). Recently, IL-11 was identified as a new player in cardiac fibrosis. IL-11 was essential for activation of non-canonical Erk pathway in TGF-β-mediated fibrosis (Schafer et al., 2017). In the signal transduction cascade, MAPKKK plays a central role in regulation of the MAPK activity. TGF-β-activated kinase 1 (TAK1) represents an important MAPKKK in TGF-β signalling (Biesemann et al., 2015). The relevance of TAK1-p38 axis activation in cardiac fibrogenesis was reported in myocardial infarction and pressure overload models (Matsumoto-Ida et al., 2006; Li et al., 2016). All of these data emphasize complexity of the Smad-independent response in the TGF-β-mediated cardiac fibrogenesis.

WNT signalling pathways in cardiac fibrosis

WNT signalling represents another important signal transduction pathway which regulates organogenesis, cancer development and tissue fibrogenesis. The family of WNT ligands consists of highly evolutionarily conserved glycoproteins encoded in humans by 19 genes (Garriock et al., 2007). Upon translation, the WNT proteins undergo a series of post-translational modifications followed by a highly organized and tightly controlled exocytosis (Herr et al., 2012). Extracellular WNTs bind to transmembrane receptor complexes consisting of the Frizzled and the low-density lipoprotein receptor-related protein (LRP) families (Moon et al., 2004). After binding to receptor complexes, WNTs trigger various outputs in a β-catenin-dependent (canonical response) or independent (non-canonical response) manner. In the canonical response, binding of WNT1, WNT2b, WNT3a, WNT6 or WNT9b to the receptor complex activates the Dishevelled protein, which in turn inhibits GSK-3β-dependent degradation complex destroying the continuously synthetized β-catenin. This leads to stabilisation and translocation of β-catenin into the nucleus, where β-catenin acts as a transcriptional coactivator which together with the T-cell factor (TCF) and the lymphoid enhancer factor (LEF) transcription factors initiates transcription of the WNT target genes (Moon et al., 2004; Tao et al., 2016). Frizzled receptor stimulation with WNT4, WNT5a or WNT11 can trigger gene transcription independently of β-catenin by activating a planar cell polarity pathway and a calcium-dependent pathway. Signal transduction through the WNT/planar cell polarity pathway involves activation of certain MAPKs (JNK and ERK1/2 kinases) and the RhoA-ROCK axis. In the WNT/calcium-dependent pathway, signal transduction is instead mediated through phospholipase C (PLC) activation, followed by Ca2+ release. The increase in free cytoplasmic Ca2+ levels subsequently activates protein kinase C (PKC), calmodulin kinase II and a Ca2+-sensitive enzyme, calcineurin. This might result in increased nuclear levels of transcription factor AP-1/c-Jun which regulates gene transcription (Bergmann 2010; Rao et al., 2010).

Natural regulation of the WNT pathway predominantly occurs at the level of extracellularly secreted inhibitors. One of the most important natural inhibitors of the WNT signalling belongs to the family of secreted Frizzled-related proteins (sFRPs), which directly bind to the WNT proteins and prevent their interactions with the Frizzled receptors or directly bind to the Frizzled receptors themselves (Cruciat & Niehrs, 2013). The Dickkopf proteins represent another family of secreted proteins negatively regulating WNT signalling. Dickkopf proteins present in the extracellular space bind to LRP 5/6 co-receptors triggering their internalization. Similarly, WNT-inhibitory factor 1 (WIF1) inhibits the WNT proteins’ interaction with the receptor by binding to them (Surmann-Schmitt et al. 2009). Recently described WNT protein degrading enzymes, Tiki1 and Notum, represent another class of natural WNT inhibitors. Transmembrane metalloproteinase Tiki1 cleaves amino-terminal region of WNT ligands and thereby reduces their receptor-binding ability (Zhang et al., 2016). Similarly, a secreted Notum enzyme specifically removes an acyl group from the WNT proteins which is needed for effective binding of WNTs to the Frizzled receptors (Kakugawa et al., 2015). A natural regulation of WNT signalling is, however, not limited to inhibitors. Secreted R-spondin, for example, acts as a WNT ligand agonist enhancing ligand-receptor clustering and inhibits Frizzled and LRP receptor turn-over (Jin & Yoon, 2012).

Active WNT signalling has been implicated in cardiac tissue remodelling. For example, enhanced WNT1 expression was reported in the epicardium following acute ischaemic cardiac injury in mice (Duan et al., 2012), and increased levels of canonical (WNT2b, WNT9a) and non-canonical (WNT5a) WNTs were found in the myocardium of neonatal mice in response to cryoinjury (Mizutani et al., 2015). Increased activation of β-catenin and TCF/LEF have also been observed in human hearts with severe epicardial fibrosis (Ye et al., 2013). In recent years, a number of reports highlighted functional contribution of WNT signalling to the cardiac fibrogenesis in various animal models. In rodent models of myocardial infarction, elimination of bioavailable WNTs with sFRP1, sFRP2 or sFRP4 was shown to reduce fibrosis and improve cardiac function (Barandon et al., 2011; Fan et al., 2018; He et al., 2010; Matsushima et al., 2010). Blockade of the Frizzled receptors with a specific pharmacological antagonist also improved post-infarction cardiac function and reduced collagen content (Laeremans et al., 2011). Furthermore, in a mouse model of experimental autoimmune myocarditis, development of postinflammatory fibrosis was successfully prevented by administrating sFRP2 (Blyszczuk et al., 2017). Cardiac tissue remodelling is also regulated by other secreted natural negative regulators of WNT signalling. Dickkopf-3 has been shown to attenuate cardiac fibrosis in cardiac hypertrophy induced by pressure overload or infusion with angiotensin II (Zhai et al., 2018; Zhang et al., 2014).

Regulation of WNT signalling in cardiac fibrosis is mediated not only through secreted factors, but also intracellularly. Constitutive overexpression of the Dishevelled protein (which inhibits GSK-3β) activated canonical and non-canonical WNT signalling pathways and thereby induced spontaneous myocardial fibrosis and cardiac hypertrophy (Malekar et al., 2010). Recent data specifically pointed to the important role of the canonical WNT signalling in cardiac fibroblasts. In myocardial fibrosis induced by transaortic constriction, genetic depletion of β-catenin in cardiac fibroblasts reduced interstitial fibrosis, although did not alter the number of activated cardiac fibroblasts (Xiang et al., 2017). In the complementary approach, Lal and coworkers (Lal et al., 2014) demonstrated that activation of the canonical WNT pathway by inhibiting GSK-3β in cardiac fibroblasts promoted fibrogenesis in postinfarcted hearts.

In the context of myocardial fibrosis, at the cellular level, the WNT proteins have been mainly implicated in the activation of cardiac fibroblasts. WNT1 was shown to stimulate cardiac fibroblast proliferation and to up-regulate profibrotic genes, including collagen I and endothelin-1 (Duan et al., 2012). Such profibrotic response in cardiac fibroblasts was also induced by WNT1-induced secreted protein-1 (WISP-1) (Colston et al., 2007). Combined co-transfection of Frizzled receptors and stimulation with WNT3a or WNT5a indicated the involvement of the canonical and non-canonical WNT pathways during cardiac fibroblast differentiation (Laeremans et al., 2010). Stimulation of cardiac fibroblasts with WNT5a showed Erk-dependent production of IL-6 and tissue inhibitor of metalloproteinase 1 (TIMP-1) (Abraityte et al., 2017). Other data showed that stimulation by WNT1/WNT5a or WNT3a ligands alone were insufficient to induce effective pathological myofibroblast formation (Blyszczuk et al., 2017). Similarly, overexpression of β-catenin had no effect on myofibroblast lineage differentiation (Laeremans et al., 2010), but induced proliferation and suppressed apoptosis of the cardiac fibroblasts (Hahn et al., 2006).

Bioactivity, as well as transcriptional regulation of WNTs, are tightly controlled by sFRPs representing an important arm of the WNT system regulation (Cruciat & Niehrs, 2013; Sklepkiewicz et al., 2015). Accordingly, dysregulation of WNT-sFRP balance can affect fibrotic processes in the heart. Mice lacking sFRP1 showed increased expression of WNT ligands, elevated levels of β-catenin, and enhanced αSMA expression and collagen production in cardiac fibroblasts (Sklepkiewicz et al., 2015). Although elimination of bioavailable WNTs with exogenous sFRP2 reduced cardiac fibrosis in vivo (Blyszczuk et al., 2017; He et al., 2010), constitutive expression of sFRP2 in cardiac fibroblasts surprisingly activated the WNT/β-catenin signalling and promoted fibroblast proliferation and expression of the ECM genes (Lin et al., 2016). Furthermore, sFRP2-deficient cardiac fibroblasts produced less collagen and sFRP2-deficient mice developed less fibrosis following myocardial infarction (Kobayashi et al., 2009). These data suggest that constitutive role of sFRP2 in cardiac fibroblasts is far more complex than suppression of profibrotic WNT signalling.

TGF-β-WNT crosstalk in fibrogenesis

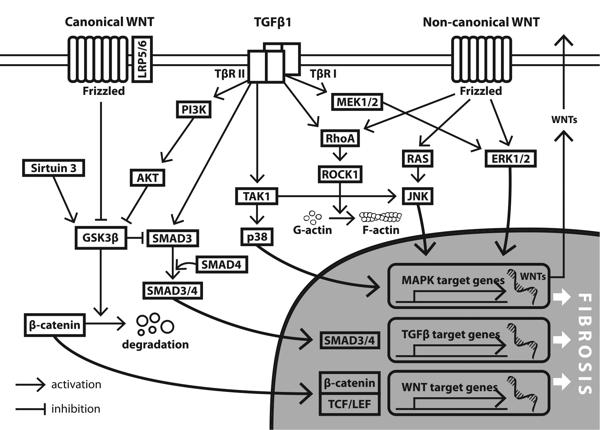

As demonstrated above, activation of the TGF-β and WNT signalling pathways plays important roles in fibrotic processes in the heart. So far, our understanding of the direct interplay between these two pathways, specifically in the cardiac fibrogenesis, is limited.

Regulation of TGF-β by WNT

Little is known about regulation of the TGF-β production by WNTs in the fibrotic process. Experiments on cardiac fibroblasts suggested that neither canonical nor non-canonical WNT signalling directly regulated TGF-β at the mRNA level (Laeremans et al., 2010). Canonical WNTs also failed to upregulate TGF-β in the lung fibroblasts (Lam et al., 2011). However, β-catenin-dependent WNT3a upregulated TGF-β production in mouse embryonic fibroblasts (Carthy et al., 2011). Interestingly, in the cardiac fibroblasts, β-catenin signalling pathway was reported to control TGF-β production induced by fibroblast growth factor 23 (Hao et al., 2016). Furthermore, insight from non-cardiac models demonstrated transcriptional regulation of PAI-1 by WNT1 in kidney epithelial cells, suggesting a potential negative regulation of TGF-β signalling by canonical WNT (He et al., 2010).

Regulation of canonical WNT by TGF-β

Regulation of the WNT/β-catenin pathway by TGF-β is much better documented. TGF-β has been implicated in production and secretion of the WNT proteins through a TAK1-dependent pathway in cardiac fibroblasts and in heart inflammatory cells (Blyszczuk et al., 2017). Accordingly, in a mouse model of experimental autoimmune myocarditis and in a mouse model of pressure overload, impaired profibrotic TGF-β responses were observed in the absence of β-catenin or upon pharmacological inhibition of the β-catenin-dependent signalling, pointing to the involvement of canonical WNT pathway in this process (Blyszczuk et al., 2017; Xiang et al., 2017). Furthermore, TGF-β inducible PI3K/Akt pathway was also reported to inhibit GSK-3β (enzyme involved in β-catenin degradation) activity in the cardiac fibroblasts (Ma et al., 2017). Thus, TGF-β might directly activate the β-catenin-dependent pathway.

It has been shown that canonical WNT signalling can control profibrotic TGF-β response. Cardiac fibroblasts lacking GSK-3β showed enhanced profibrotic response and activation of Smad3 signalling, leading to enhanced cardiac tissue remodelling in a mouse model of myocardial infarction (Lal et al., 2014). In addition, sirtuin 3 has been proposed to suppress profibrotic TGF-β signalling through activation of GSK-3β in cardiac fibrosis (Sundaresan et al., 2016). These results suggested that β-catenin-dependent signalling also contributed to stabilization of the canonical TGF-β response. Activation of the canonical WNT signalling in response to TGF-β and the functional contribution of this mechanism to fibrotic processes have been observed not only during cardiac fibrogenesis, but also in other organs, including skin (Akhmetshina et al., 2012), lungs (Xu et al., 2017) and the hair follicles (Lu et al., 2016; Si et al., 2017, Plikus et al., 2012). Summarising, these data pointed to the important role of β-catenin-dependent pathway in TGF-β response. In the proposed mechanism, TGF-β activates WNT/β-catenin signalling through production of WNT proteins and by direct deactivation of GSK-3β. Activated WNT/β-catenin, in turn, stabilizes the TGF-β/Smad response. It seems that co-activation of these two pathways is required to trigger the effective fibrotic response.

Regulation of non-canonical WNT by TGF-β

In contrast to quite well-documented involvement of the canonical WNT signalling in the TGF-β response, much less is known about contribution of the non-canonical WNT pathway. Although elevated levels of non-canonical WNT5a were detected in fibrotic hearts in mice and in humans (Abraityte et al., 2017; Blyszczuk et al., 2017), the interplay between TGF-β and WNT5a (or other non-canonical WNTs) remains mainly speculative. Noteworthy, stimulation of the planar cell polarity pathway by non-canonical WNTs is known to activate MAPKs and Rho-dependent ROCKs, and thereby to regulate cytoskeletal organization and fibrotic response (Bergmann, 2010; Abraityte et al., 2017). As presented above, TGF-β also activates MAPK and ROCK pathways in a Smad-independent manner. It is possible that in the TGF-β stimulated cells, non-canonical WNTs stabilize or modulate p38-, Erk-, JNK- and ROCK-dependent responses in the fibrotic processes. However, the ultimate effect of such co-activation needs to be experimentally addressed in the future.

Conclusive remarks

Progressive fibrosis is a driving pathological force in many cardiac conditions. Understanding molecular mechanisms of this process could provide solutions to prevent progression or even to revert fibrotic changes in the heart. Mechanisms of cardiac fibrogenesis are rather complex and involve multiple players. In the light of the large number of identified profibrotic factors, understanding of interplays between these signalling pathways represents an emerging challenge in this field. As presented here, accumulating evidence points to the critical role of TGF-β and WNT pathways in the pathogenesis of fibrosis in the heart and in other organs. Although biosynthesis of TGF-β and WNTs is quite well described, the bioavailability of these profibrotic factors in various cardiac pathologies remains largely elusive. Unlike typical cytokines and chemokines, biological activity of TGF-β and WNTs is strongly regulated in the extracellular space. Future research should focus more on identifying mechanisms regulating bioavailability of these profibrotic agents.

As discussed in this review, the crosstalk between TGF-β and WNT pathways seems to be essential in switching on the genetic machinery of the profibrotic changes. The crosstalk between these two pathways includes not only positive feedback loops, but also common downstream signalling molecules and outputs (Fig. 1). Experimental data demonstrated that only highly organised and coordinated response of these multifaceted mechanisms effectively translates into fibrotic changes at the cellular and tissue levels. It is important to note that both, the TGF-β and WNT pathways, regulate a number of various cellular processes and play fundamental roles in organogenesis and in carcinogenesis. Thus, consequences of uncontrolled systemic dysregulation of these signalling pathways might be fatal. It seems that precise targeting of specific aspects of the TGF-β-WNT signalling network, rather than its global inhibition, is a better strategy for the development of successful side effect-free antifibrotic approaches. Identification of these new targets requires, however, a better understanding of molecular mechanisms.

Acknowledgements of Financial Support

This work has been supported by the National Science Centre (Poland), grant 2014/14/E/NZ5/00175.

Disclosures

None

References

Abraityte A, Vinge LE, Askevold ET, Lekva T, Michelsen AE, Ranheim T, Alfsnes K, Fiane A, Aakhus S, Lunde IG, Dahl CP, Aukrust P, Christensen G, Gullestad L, Yndestad A, Ueland T (2017) WNT5a is elevated in heart failure and affects cardiac fibroblast function. J Mol Med 95: 767–777. https://doi.org/10.1007/s00109-017-1529-1

Akhmetshina A, Palumbo K, Dees C, Bergmann C, Venalis P, Zerr P, Horn A, Kireva T, Beyer C, Zwerina J, Schneider H, Sadowski A, Riener MO, MacDougald OA, Distler O, Schett G, Distler JH (2012) Activation of canonical WNT signalling is required for TGF-β-mediated fibrosis. Nat Commun 3: 1–12. https://doi.org/10.1038/ncomms1734

Barandon L, Casassus F, Leroux L, Moreau C, Allières C, Daniel Lamazière JM, Dufourcq P, Couffinhal T, Duplàa C (2011) Secreted frizzled-related protein-1 improves postinfarction scar formation through a modulation of inflammatory response. Arterioscler Thromb Vasc Biol 31: e80–e87. https://doi.org/10.1161/ATVBAHA.111.232280

Bergmann MW (2010) WNT signaling in adult cardiac hypertrophy and remodeling: lessons learned from cardiac development. Circ Res 107: 1198–1208. https://doi.org/10.1161/CIRCRESAHA.110.223768

Biernacka A, Dobaczewski M, Frangogiannis NG (2011) TGF-β signaling in fibrosis. Growth Factors 29: 196–202. https://doi.org/10.3109/08977194.2011.595714.

Biesemann N, Mendler L, Kostin S, Wietelmann A, Borchardt T, Braun T (2015) Myostatin induces interstitial fibrosis in the heart via TAK1 and p38. Cell Tissue Res 361: 779–787. https://doi.org/10.1007/s00441-015-2139-2

Blyszczuk P, Müller-Edenborn B, Valenta T, Osto E, Stellato M, Behnke S, Glatz K, Basler K, Lüscher TF, Distler O, Eriksson U, Kania G (2017) Transforming growth factor-β-dependent WNT secretion controls myofibroblast formation and myocardial fibrosis progression in experimental autoimmune myocarditis. Eur Heart J 38: 1413–1425. https://doi.org/10.1093/eurheartj/ehw116

Branton MH, Kopp JB (1999) TGF-β and fibrosis. Microbes Infect 1: 1349–1365. https://doi.org/10.1016/S1286-4579(99)00250-6

Bujak M, Ren G, Kweon HJ, Dobaczewski M, Reddy A, Taffet G, Wang X-F, Frangogiannis NG (2007) Essential role of Smad3 in infarct healing and in the pathogenesis of cardiac remodeling. Circulation 116: 2127–2138. https://doi.org/10.1161/CIRCULATIONAHA.107.704197

Carthy JM, Garmaroudi FS, Luo Z, McManus BM (2011) WNT3a induces myofibroblast differentiation by upregulating TGF-β signaling through SMAD2 in a β-catenin-dependent manner. PLoS One 6: e19809. https://doi.org/10.1371/journal.pone.0019809

Chatzifrangkeskou M, Le Dour C, Wu W, Morrow JP, Joseph LC, Beuvin M, Sera F, Homma S, Vignier N, Mougenot N, Bonne G, Lipson KE, Worman HJ, Muchir A (2016) ERK1/2 directly acts on CTGF/CCN2 expression to mediate myocardial fibrosis in cardiomyopathy caused by mutations in the lamin A/C gene. Hum Mol Genet 25: 2220–2233. https://doi.org/10.1093/hmg/ddw090

Choudhary R, Palm-Leis A, Scott RC, Guleria RS, Rachut E, Baker KM, Pan J (2008) All-trans retinoic acid prevents development of cardiac remodeling in aortic banded rats by inhibiting the renin-angiotensin system. Am J Physiol Heart Circ Physiol 294: H633–H644. https://doi.org/10.1152/ajpheart.01301.2007

Colston JT, de la Rosa SD, Koehler M, Gonzales K, Mestril R, Freeman GL, Bailey SR, Chandrasekar B (2007) WNT-induced secreted protein-1 is a prohypertrophic and profibrotic growth factor. Am J Physiol Heart Circ Physiol 293: H1839-H1846. https://doi.org/10.1152/ajpheart.00428.2007

Cruciat CM, Niehrs C (2013) Secreted and transmembrane WNT inhibitors and activators. Cold Spring Harb Perspect Biol 5: a015081. https://doi.org/10.1101/cshperspect.a015081

Davis J, Burr AR, Davis GF, Birnbaumer L, Molkentin DJ (2012) A TRPC6-dependent pathway for myofibroblast transdifferentiation and wound healing in vivo. Dev Cell 23: 705–715. https://doi.org/10.1016/j.devcel.2012.08.017.

Dooley S, ten Dijke P (2012) TGF-β in progression of liver disease. Cell Tissue Res 347, 245–256. https://doi.org/10.1007/s00441-011-1246-y

Duan J, Gherghe C, Liu D, Hamlett E, Srikantha L, Rodgers L, Regan JN, Rojas M, Willis M, Leask A, Majesky M, Deb A (2012) WNT1/β-catenin injury response activates the epicardium and cardiac fibroblasts to promote cardiac repair. EMBO J 31: 429–442. https://doi.org/10.1038/emboj.2011.418

Fan J, Qiu L, Shu H, Ma B, Hagenmueller M, Riffel JH, Meryer S, Zhang M, Hardt SE, Wang L, Zhou N, Qiu H, Zhou N (2018) Recombinant frizzled1 protein attenuated cardiac hypertrophy after myocardial infarction via the canonical WNT signaling pathway. Oncotarget 9: 3069–3080. https://doi.org/10.18632/oncotarget.23149

Feng XH, Derynck R (2005) Specificity and versatility in TGF-beta signaling through Smads. Annu Rev Cell Dev Biol 21: 659–693. https://doi.org/10.1146/annurev.cellbio.21.022404.142018

Fix C, Bingham K, Carver W (2011) Effects of interleukin-18 on cardiac fibroblast function and gene expression. Cytokine 53: 19–28. https://doi.org/10.1016/j.cyto.2010.10.002

Frantz S, Hu K, Adamek A, Wolf J, Sallam A, Maier SK, Lonning S, Ling H, Ertl G, Bauersachs J (2008) Transforming growth factor beta inhibition increases mortality and left ventricular dilatation after myocardial infarction. Basic Res Cardiol 103: 485–492. https://doi.org/10.1007/s00395-008-0739-7

Gabbiani G (2003) The myofibroblast in wound healing and fibrocontractive diseases. J Pathol 200: 500–503. https://doi.org/10.1002/path.1427

Garriock RJ, Warkman AS, Meadows SM, D’Agostino S, Krieg PA (2007) Census of vertebrate WNT genes: isolation and developmental expression of Xenopus WNT2, WNT3, WNT9a, WNT9b, WNT10a, and WNT16. Dev Dyn 236: 1249–1258. https://doi.org/10.1002/dvdy.21156

Germano D, Blyszczuk P, Valaperti A, Kania G, Dirnhofer S, Landmesser U, Lüscher TF, Hunziker L, Zulewski H, Eriksson U (2009) Prominin-1/CD133 + Lung Epithelial Progenitors Protect from Bleomycin-induced Pulmonary Fibrosis. Am J Respir Crit Care Med 179: 939–949. https://doi.org/10.1164/rccm.200809-1390OC

Ghosh AK, Bradham WS, Gleaves LA, De Taeye B, Murphy SB, Covington JW, Vaughan DE (2010) Genetic deficiency of plasminogen activator inhibitor-1 promotes cardiac fibrosis in aged mice: Involvement of constitutive transforming growth factor-β signaling and endothelial-to-mesenchymal transition. Circulation 122: 1200–1209. https://doi.org/10.1161/CIRCULATIONAHA.110.955245

Hahn JY, Cho HJ, Bae J-W, Yuk HS, Kim K, Park KW, Koo BK, Chae IH, Shin CS, Oh BH, Choi YS, Park YB, Kim HS (2006) β-Catenin overexpression reduces myocardial infarct size through differential effects on cardiomyocytes and cardiac fibroblasts. J Biol Chem 281: 30979–30989. https://doi.org/10.1074/jbc.M603916200

Hao H, Li X, Li Q, Lin H, Chen Z, Xie J, Xuan W, Liao W, Bin J, Huang X, Kitakaze M, Liao Y (2016) FGF23 promotes myocardial fibrosis in mice through activation of β-catenin. Oncotarget 7: 64649–64664. https://doi.org/10.18632/oncotarget.11623

Hao J, Ju H, Zhao S, Junaid A, Fleur TS, Dixon IM (1999) Elevation of expression of Smads 2, 3, and 4, decorin and TGF-beta in the chronic phase of myocardial infarct scar healing. J Mol Cell Cardiol 31: 667–678. https://doi.org/10.1006/jmcc.1998.0902

Hata A, Lagna G, Massagué J, Hemmati-Brivanlou A (1998) Smad6 inhibits BMP/Smad1 signaling by specifically competing with the Smad4 tumor suppressor. Genes Dev 12: 186–197.

Haudek SB, Gupta D, Dewald O, Schwartz RJ, Wei L, Trial J, Entman ML (2009) Rho kinase-1 mediates cardiac fibrosis by regulating fibroblast precursor cell differentiation. Cardiovasc Res 83: 511–518. https://doi.org/10.1093/cvr/cvp135

Haudek SB, Xia Y, Huebener P, Lee JM, Carlson S, Crawford JR, Pilling D, Gomer RH, Trial J, Frangogiannis NG, Entman ML (2006) Bone marrow-derived fibroblast precursors mediate ischemic cardiomyopathy in mice. Proc Natl Acad Sci USA 103: 18284–18289. https://doi.org/10.1073/pnas.0608799103

Hayashi H, Abdollah S, Qiu Y, Cai J, Xu YY, Grinnell BW, Richardson MA, Topper JN, Gimbrone MA, Wrana JL, Falb D (1997) The MAD-related protein Smad7 associates with the TGFbeta receptor and functions as an antagonist of TGFbeta signaling. Cell 89: 1165–1173

He W, Tan R, Dai C, Li Y, Wang D, Hao S, Kahn M, Liu Y (2010) Plasminogen activator inhibitor-1 is a transcriptional target of the canonical pathway of Wnt/β-catenin signaling. J Biol Chem 285: 24665–24675. https://doi.org/10.1074/jbc.M109.091256

He W, Zhang L, Ni A, Zhang Z, Mirotsou M, Mao L, Pratt RE, Dzau VJ (2010) Exogenously administered secreted frizzled related protein 2 (Sfrp2) reduces fi brosis and improves cardiac function in a rat model of myocardial infarction. Proc Natl Acad Sci USA 107: 21110–21115. https://doi.org/10.1073/pnas.1004708107/

Heasman SJ, Ridley AJ (2008) Mammalian Rho GTPases: new insights into their functions from in vivo studies. Nat Rev Mol Cell Biol 9: 690–701. https://doi.org/10.1038/nrm2476

Herr P, Hausmann G, Basler K (2012) WNT secretion and signalling in human disease. Trends Mol Med 18: 483–493. https://doi.org/10.1016/j.molmed.2012.06.008

Heymans S, Luttun A, Nuyens D, Theilmeier G, Creemers E, Moons L, Dyspersin GD, Cleutjens JP, Shipley M, Angellilo A, Levi M, Nübe O, Baker A, Keshet E, Lupu F, Herbert JM, Smits JF, Shapiro SD, Baes M, Borgers M, Collen D, Daemen MJ, Carmeliet P (1999) Inhibition of plasminogen activators or matrix metalloproteinases prevents cardiac rupture but impairs therapeutic angiogenesis and causes cardiac failure. Nat Med 5: 1135–1142. https://doi.org/10.1038/13459

Huang XR, Chung AC, Yang F, Yue W, Deng C, Lau CP, Tse HF, Lan HY (2010) Smad3 mediates cardiac inflammation and fibrosis in angiotensin II-induced hypertensive cardiac remodeling. Hypertension 55: 1165–1171. https://doi.org/10.1161/HYPERTENSIONAHA.109.147611

Hubchak SC, Sparks EE, Hayashida T, Schnaper HW (2009) Rac1 promotes TGF-β-stimulated mesangial cell type I collagen expression through a PI3K/Akt-dependent mechanism. Am J Physiol Renal Physiol 297: F1316-1323. https://doi.org/10.1152/ajprenal.00345.2009.

Ikeuchi M, Tsutsui H, Shiomi T, Matsusaka H, Matsushima S, Wen J, Kubota T, Tateshita A (2004) Inhibition of TGF-β signaling exacerbates early cardiac dysfunction but prevents late remodeling after infarction. Cardiovasc Res 64: 526–535. https://doi.org/10.1016/j.cardiores.2004.07.017

Jin YR, Yoon JK (2012) The R-spondin family of proteins: emerging regulators of WNT signaling. Int J Biochem Cell Biol 44: 2278–2287. https://doi.org/10.1016/j.biocel.2012.09.006

Kakugawa S, Langton PF, Zebisch M, Howell S, Chang TH, Liu Y, Feizi T, Bineva G, O’Reilly N, Snijders AP, Jones EY, Vincent J-P (2015) Notum deacylates Wnt proteins to suppress signalling activity. Nature 519: 187–192. https://doi.org/10.1038/nature14259

Kania G, Blyszczuk P, Stein S, Valaperti A, Germano D, Dirnhofer S, Hunziker L, Matter CM, Eriksson U (2009) Heart-infiltrating prominin-1+/CD133+ progenitor cells represent the cellular source of transforming growth factor β–mediated cardiac fibrosis in experimental autoimmune myocarditis. Circ Res 105: 462–470. https://doi.org/10.1161/CIRCRESAHA.109.196287

Kania G, Blyszczuk P, Valaperti A, Dieterle T, Leimenstoll B, Dirnhofer S, Zulewski H, Eriksson U (2008) Prominin-1+/CD133+ bone marrow-derived heart-resident cells suppress experimental autoimmune myocarditis. Cardiovasc Res 80: 236–245. https://doi.org/10.1093/cvr/cvn190

Khalil H, Kanisicak O, Prasad V, Correll RN, Fu X, Schips T, Vagnozzi RJ, Liu R, Huynh T, Lee SJ, Karch J, Molkentin JD (2017) Fibroblast-specific TGF-β–Smad2/3 signaling underlies cardiac fibrosis. J Clin Invest 127: 3770–3783. https://doi.org/10.1172/JCI94753

Kobayashi K, Luo M, Zhang Y, Wilkes DC, Ge G, Grieskamp T, Yamada C, Liu T-C, Huang G, Basson CT, Kispert A, Greenspan DS, Sato TN (2009) Secreted Frizzled-related protein 2 is a procollagen C proteinase enhancer with a role in fibrosis associated with myocardial infarction. Nat Cell Biol 11: 46–55. https://doi.org/10.1038/ncb1811

Koitabashi N, Danner T, Zaiman AL, Pinto YM, Rowell J, Mankowski J, Zhang D, Nakamura T, Takimoto E, Kass DA (2011) Pivotal role of cardiomyocyte TGF-β signaling in the murine pathological response to sustained pressure overload. J Clin Invest 121: 2301–2312. https://doi.org/10.1172/JCI44824

Kong P, Christia P, Frangogiannis NG (2014) The pathogenesis of cardiac fibrosis. Cell Mol Life Sci 71: 549–574. https://doi.org/10.1007/s00018-013-1349-6

Kurose H, Mangmool S (2016) Myofibroblasts and inflammatory cells as players of cardiac fibrosis. Arch Pharm Res 39: 1100–1113. https://doi.org/10.1007/s12272-016-0809-6

Kuwahara F, Kai H, Tokuda K, Kai M, Takeshita A, Egashira K, Imaizumi T (2002) Transforming growth factor-beta function blocking prevents myocardial fibrosis and diastolic dysfunction in pressure-overloaded rats. Circulation 106: 130–135

Laeremans H, Hackeng TM, van Zandvoort MAMJ, Thijssen VLJL, Janssen BJA, Ottenheijm HCJ, Smits JFM, Blankesteijn WM (2011) Blocking of frizzled signaling with a homologous peptide fragment of WNT3a/WNT5a reduces infarct expansion and prevents the development of heart failure after myocardial infarction. Circulation 124: 1626–1635. https://doi.org/10.1161/CIRCULATIONAHA.110.976969

Laeremans H, Rensen SS, Ottenheijm HC, Smits JF, Blankesteijn WM (2010) WNT/frizzled signalling modulates the migration and differentiation of immortalized cardiac fibroblasts. Cardiovasc Res 87: 514–523. https://doi.org/10.1093/cvr/cvq067

Lal H, Ahmad F, Zhou J, Yu JE, Vagnozzi RJ, Guo Y, Yu D, Tsai EJ, Woodgett J, Gao E, Force T (2014) Cardiac Fibroblast Glycogen Synthase Kinase-3 Regulates Ventricular Remodeling and Dysfunction in Ischemic Heart. Circulation 130: 419–430. https://doi.org/10.1161/CIRCULATIONAHA.113.008364

Lam AP, Flozak AS, Russell S, Wei J, Jain M, Mutlu GM, Budinger GR, Feghali-Bostwick CA, Varga J, Gottardi CJ (2011) Nuclear β-catenin is increased in systemic sclerosis pulmonary fibrosis and promotes lung fibroblast migration and proliferation. Am J Respir Cell Mol Biol 45: 915–922. https://doi.org/10.1165/rcmb.2010-0113OC

Leask A (2007) TGFbeta, cardiac fibroblasts, and the fibrotic response. Cardiovasc Res 74: 207–212. https://doi.org/10.1016/j.cardiores.2006.07.012

Lee MK, Pardoux C, Hall MC, Lee PS, Warburton D, Qing J, Smith SM, Derynck R (2007) TGF-β activates Erk MAP kinase signalling through direct phosphorylation of ShcA. EMBO J 26: 3957–3967. https://doi.org/10.1038/sj.emboj.7601818

Li CY, Zhou Q, Yang LC, Chen YH, Hou JW, Guo K, Wang YP, Li YG (2016) Dual-specificity phosphatase 14 protects the heart from aortic banding-induced cardiac hypertrophy and dysfunction through inactivation of TAK1-P38MAPK/-JNK1/2 signaling pathway. Basic Res Cardiol 111: 1–17. https://doi.org/10.1007/s00395-016-0536-7

Li L, Zhao Q, Kong W (2018) Extracellular matrix remodeling and cardiac fibrosis. Matrix Biol 66–67: 490–506. https://doi.org/10.1016/j.matbio.2018.01.013

Li Y, Foster W, Deasy BM, Chan Y, Prisk V, Tang Y, Cummins J, Huard J (2004) Transforming growth factor-beta1 induces the differentiation of myogenic cells into fibrotic cells in injured skeletal muscle. Am J Pathol 164: 1007–1019. https://doi.org/10.1016/S0002-9440(10)63188-4

Li Y, Li Z, Zhang C, Li P, Wu Y, Wang C, Bond Lau W, Ma XL, Du J (2017) Cardiac Fibroblast-Specific Activating Transcription Factor 3 Protects Against Heart Failure by Suppressing MAP2K3-p38 Signaling. Circulation 135: 2041–2057. https://doi.org/10.1161/CIRCULATIONAHA.116.024599

Lin H, Angeli M, Chung KJ, Ejimadu C, Rosa AR, Lee T (2016) sFRP2 activates WNT/β-catenin signaling in cardiac fibroblasts: differential roles in cell growth, energy metabolism, and extracellular matrix remodeling. Am J Physiol Cell Physiol 311: C710–C719. https://doi.org/10.1152/ajpcell.00137.2016

Lu GQ, Wu ZB, Chu XY, Bi ZG, Fan WX (2016) An investigation of crosstalk between Wnt/β-catenin and transforming growth factor-β signaling in androgenetic alopecia. Medicine (Baltimore) 95: e4297.

https://doi.org/10.1097/MD.0000000000004297

Ma ZG, Yuan YP, Zhang X, Xu SC, Wang SS, Tang QZ (2017) Piperine Attenuates pathological cardiac fibrosis via PPAR-γ/AKT pathways. EBioMedicine 18: 179–187. https://doi.org/10.1016/j.ebiom.2017.03.021

Malekar P, Hagenmueller M, Anyanwu A, Buss S, Streit MR, Weiss CS, Wolf D, Riffel J, Bauer A, Katus HA, Hardt SE (2010) WNT Signaling is critical for maladaptive cardiac hypertrophy and accelerates myocardial remodeling. Hypertension 55: 939–945. https://doi.org/10.1161/HYPERTENSIONAHA.109.141127

Matsumoto-Ida M, Takimoto Y, Aoyama T, Akao M, Takeda T, Kita T (2006) Activation of TGF-β1-TAK1-p38 MAPK pathway in spared cardiomyocytes is involved in left ventricular remodeling after myocardial infarction in rats. Am J Physiol Heart Circ Physiol 290: H709–H715. https://doi.org/10.1152/ajpheart.00186.2005

Matsushima K, Suyama T, Takenaka C, Nishishita N, Ikeda K, Ikada Y, Sawa Y, Jakt LM, Mori H, Kawamata S (2010) Secreted frizzled related protein 4 reduces fibrosis scar size and ameliorates cardiac function after ischemic injury. Tissue Eng Part A 16: 3329–3341. https://doi.org/10.1089/ten.TEA.2009.0739

Mehra A, Wrana JL (2002) TGF-beta and the Smad signal transduction pathway. Biochem Cell Biol 80: 605–622

Meng XM, Tang PM, Li J, Lan HY (2015) TGF-β/Smad signaling in renal fibrosis. Front Physiol 6: 82. https://doi.org/10.3389/fphys.2015.00082

Meng XM, Nikolic-Paterson DJ, Lan HY (2016) TGF-β: the master regulator of fibrosis. Nat Rev Nephrol 12: 325–338. https://doi.org/10.1038/nrneph.2016.48

Mizutani M, Wu JC, Nusse R (2015) Fibrosis of the neonatal mouse heart after cryoinjury is accompanied by WNT signaling activation and epicardial-to-mesenchymal transition. J Am Heart Assoc 5: 1–15. https://doi.org/10.1161/JAHA.115.002457

Molkentin JD, Bugg D, Ghearing N, Dorn LE, Kim P, Sargent MA, Gunaje J, Otsu K, Davis JM (2017) Fibroblast-specific genetic manipulation of p38 MAPK in vivo reveals its central regulatory role in fibrosis. Circulation 136: 549–561. https://doi.org/10.1161/CIRCULATIONAHA.116.026238

Moon RT, Kohn AD, Ferrari GV De, Kaykas A (2004) WNT and beta-catenin signalling: diseases and therapies. Nat Rev Genet 5: 691–701. https://doi.org/10.1038/nrg1427

Moriwaki H, Stempien-Otero A, Kremen M, Cozen AE, Dichek DA (2004) Overexpression of urokinase by macrophages or deficiency of plasminogen activator inhibitor type 1 causes cardiac fibrosis in mice. Circ Res 95: 637–644. https://doi.org/10.1161/01.RES.0000141427.61023.f4

Oudit GY, Crackower MA, Eriksson U, Sarao R, Kozieradzki I, Sasaki T, Irie-Sasaki J, Gidrewicz D, Rybin VO, Wada T, Steinberg SF, Backx PH, Penninger JM (2003) Phosphoinositide 3-kinase gamma-deficient mice are protected from isoproterenol-induced heart failure. Circulation 108: 2147–2152. https://doi.org/10.1161/01.CIR.0000091403.62293.2B

Oudit GY, Sun H, Kerfant BG, Crackower MA, Penninger JM, Backx PH (2004) The role of phosphoinositide-3 kinase and PTEN in cardiovascular physiology and disease. J Mol Cell Cardiol 37: 449–471. https://doi.org/10.1016/j.yjmcc.2004.05.015

Paw M, Borek I, Wnuk D, Ryszawy D, Piwowarczyk K, Kmiotek K, Wójcik-Pszczoła KA, Pierzchalska M, Madeja Z, Sanak M, Błyszczuk P, Michalik M, Czyż J (2017) Connexin43 controls the myofibroblastic differentiation of bronchial fibroblasts from patients with asthma. Am J Respir Cell Mol Biol 57: 100–110. https://doi.org/10.1165/rcmb.2015-0255OC

Peterson RT, Schreiber SL (1998) Translation control: connecting mitogens and the ribosome. Curr Biol 8: R248–R250. https://doi.org/10.1016/S0960-9822(98)70152-6

Petrich BG, Wang Y (2004) Stress-activated MAP kinases in cardiac remodeling and heart failure: New insights from transgenic studies. Trends Cardiovasc Med 14: 50–55. https://doi.org/10.1016/j.tcm.2003.11.002

Piersma B, Bank RA, Boersema M (2015) Signaling in fibrosis: TGF-β, WNT, and YAP/TAZ converge. Front Med 2: 59. https://doi.org/10.3389/fmed.2015.00059

Plikus MV, Gay DL, Treffeisen E, Wang A, Supapannachart RJ, Cotsarelis G (2012) Epithelial stem cells and implications for wound repair. Semin Cell Dev Biol 23: 946–953, https://doi.org/10.1016/j.semcdb.2012.10.001

Rao TP, Kühl M (2010) An updated overview on wnt signaling pathways: A prelude for more. Circ Res 106: 1798-1806. https://doi.org/10.1161/CIRCRESAHA.110.219840

Rikitake Y, Oyama N, Wang CY, Noma K, Satoh M, Kim HH, Liao JK (2005) Decreased Perivascular Fibrosis but Not Cardiac Hypertrophy in ROCK1+/− Haploinsufficient Mice. Circulation 112: 2959–2965. https://doi.org/10.1161/CIRCULATIONAHA.105.584623.

Sarrazy V, Koehler A, Chow ML, Zimina E, Li CX, Kato H, Caldarone CA, Hinz B (2014) Integrins αvβ5 and αvβ3 promote latent TGF-β1 activation by human cardiac fibroblast contraction. Cardiovasc Res 102, 407–417. https://doi.org/10.1093/cvr/cvu053

Schafer S, Viswanathan S, Widjaja AA, Lim WW, Moreno-Moral A, DeLaughter DM, Ng B, Patone G, Chow K, Khin E, Tan J, Chothani SP, Ye L, Rackham OJL, Ko NSJ, Sahib NE, Pua CJ, Zhen NTG, Xie C, Wang M, Maatz H, Lim S, Saar K, Blachut S, Petretto E, Schmidt S, Putoczki T, Guimarães-Camboa N, Wakimoto H, van Heesch S, Sigmundsson K, Lim SL, Soon JL, Chao VTT, Chua YL, Tan TE, Evans SM, Loh YJ, Jamal MH, Ong KK, Chua KC, Ong BH, Chakaramakkil MJ, Seidman JG, Seidman CE, Hubner N, Sin KYK, Cook SA (2017) IL-11 is a crucial determinant of cardiovascular fibrosis. Nature 552: 110–115. https://doi.org/10.1038/nature24676

Shi J, Zhang Y-W, Yang Y, Zhang L, Wei L (2010) ROCK1 plays an essential role in the transition from cardiac hypertrophy to failure in mice. J Mol Cell Cardiol 49: 819–828. https://doi.org/10.1016/j.yjmcc.2010.08.008

Shimizu T, Liao JK (2016) Rho Kinases and Cardiac Remodeling. Circ J 80: 1491–1498. https://doi.org/10.1253/circj.CJ-16-0433

Shyu KG, Wang BW, Chen WJ, Kuan P, Hung CR (2010) Mechanism of the inhibitory effect of atorvastatin on endoglin expression induced by transforming growth factor-β1 in cultured cardiac fibroblasts. Eur J Heart Fail 12: 219–226. https://doi.org/10.1093/eurjhf/hfq011

Si Y, Bai J, Wu J, Li Q, Mo Y, Fang R, Lai W (2017) LncRNA PlncRNA-1 regulates proliferation and differentiation of hair follicle stem cells through TGF-β1-mediated Wnt/β-catenin signal pathway. Mol Med Rep 17: 1191–1197. https://doi.org/10.3892/mmr.2017.7944

Sklepkiewicz P, Shiomi T, Kaur R, Sun J, Kwon S, Mercer B, Bodine P, Schermuly RT, George I, Schulze PC, D’Armiento JM (2015) Loss of secreted frizzled-related protein-1 leads to deterioration of cardiac function in mice and plays a role in human cardiomyopathy. Circ Heart Fail 8: 362–372. https://doi.org/10.1161/CIRCHEARTFAILURE.114.001274

Small EM, Thatcher JE, Sutherland LB, Kinoshita H, Robert D, Richardson JA, Dimaio JM, Sadek H, Olson EN (2010) Myocardin-related transcription factor-A controls myofibroblast activation and fibrosis in response to myocardial infarction. Circ Res 107: 294–304. https://doi.org/10.1161/CIRCRESAHA.110.223172.

Sun F, Duan W, Zhang Y, Zhang L, Qile M, Liu Z, Qiu F, Zhao D, Lu Y, Chu W (2015) Simvastatin alleviates cardiac fibrosis induced by infarction via up-regulation of TGF-β receptor III expression. Br J Pharmacol 172: 3779–3792. https://doi.org/10.1111/bph.13166

Sundaresan NR, Bindu S, Pillai V, Saman S, Pan Y, Huang JY, Gupta M, Nagalingam RS, Wolfgether D, Verdin E, Gupta MP (2016) SIRT3 blocks aging-associated tissue fibrosis in mice by deacetylating and activating glycogen synthase kinase 3β. Mol Cell Biol 36: 678–692. https://doi.org/10.1128/MCB.00586-15

Surmann-Schmitt C, Widmann N, Dietz U, Saeger B, Eitzinger N, Nakamura Y, Rattel M, Latham R, Hartmann C, von der Mark H, Schett G, von der Mark K, Stock M (2009) Wif-1 is expressed at cartilage-mesenchyme interfaces and impedes Wnt3a-mediated inhibition of chondrogenesis. J Cell Sci 122: 3627–3637. https://doi.org/10.1242/jcs.048926

Tao H, Yang JJ, Shi KH, Li J (2016) WNT signaling pathway in cardiac fibrosis: New insights and directions. Metabolism 65: 30–40. https://doi.org/10.1016/j.metabol.2015.10.013

Tatler AL, Jenkins G (2012) TGF-β Activation and Lung Fibrosis. Proc Am Thorac Soc 9: 130–136. https://doi.org/10.1513/pats.201201-003AW

Teekakirikul P, Eminaga S, Toka O, Alcalai R, Wang L, Wakimoto H, Nayor M, Konno T, Gorham JM, Wolf CM, Kim JB, Schmitt JP, Molkentin JD, Norris RA, Tager AM, Hoffman SR, Markwald RR, Seidman CE, Seidman JG (2010) Cardiac fibrosis in mice with hypertrophic cardiomyopathy is mediated by non-myocyte proliferation and requires Tgf-β. J Clin Invest 120: 3520–3529. https://doi.org/10.1172/JCI42028

Tran DQ (2012) TGF-β: the sword, the wand, and the shield of FOXP3+ regulatory T cells. J Mol Cell Biol 4: 29–37. https://doi.org/10.1093/jmcb/mjr033

Travers JG, Kamal FA, Robbins J, Yutzey KE, Blaxall BC (2016) Cardiac fibrosis: the fibroblasts awakens. Circ Res 118: 1021–1040. https://doi.org/10.1161/CIRCRESAHA.115.306565

Tsou PS, Haak AJ, Khanna D, Neubig RR (2014) Cellular Mechanisms of Tissue Fibrosis. 8. Current and future drug targets in fibrosis: focus on Rho GTPase-regulated gene transcription. Am J Physiol Cell Physiol 307: C2–C13. https://doi.org/10.1152/ajpcell.00060.2014

Voloshenyuk TG, Landesman ES, Khoutorova E, Hart AD, Gardner JD (2011) Induction of cardiac fibroblast lysyl oxidase by TGF-β1 requires PI3K/Akt, Smad3, and MAPK signaling. Cytokine 55: 90–97. https://doi.org/10.1016/j.cyto.2011.03.024

Wang B, Hao J, Jones SC, Yee MS, Roth JC, Dixon IMC (2002) Decreased Smad 7 expression contributes to cardiac fibrosis in the infarcted rat heart. Am J Physiol Heart Circ Physiol 282: H1685–H1696. https://doi.org/10.1152/ajpheart.00266.2001

Wu H, Li GN, Xie J, Li R, Chen QH, Chen JZ, Wei ZH, Kang LN, Xu B (2016) Resveratrol ameliorates myocardial fibrosis by inhibiting ROS/ERK/TGF-β/periostin pathway in STZ-induced diabetic mice. BMC Cardiovasc Disord 16: 5. https://doi.org/10.1186/s12872-015-0169-z

Xiang FL, Fang M, Yutzey KE (2017) Loss of β-catenin in resident cardiac fibroblasts attenuates fibrosis induced by pressure overload in mice. Nat Commun 8: 712. https://doi.org/10.1038/s41467-017-00840-w

Xu L, Cui WH, Zhou WC, Li DL, Li LC, Zhao P, Mo XT, Zhang Z, Gao J (2017) Activation of WNT/β-catenin signalling is required for TGF-β/Smad2/3 signalling during myofibroblast proliferation. J Cell Mol Med 21: 1545–1554. https://doi.org/10.1111/jcmm.13085

Yan W, Wang P, Zhao CX, Tang J, Xiao X, Wang DW (2009) Decorin gene delivery inhibits cardiac fibrosis in spontaneously hypertensive rats by modulation of transforming growth factor-beta/Smad and p38 mitogen-activated protein kinase signaling pathways. Hum Gene Ther 20: 1190–1200. https://doi.org/10.1089/hum.2008.204

Ye B, Ge Y, Perens G, Hong L, Xu H, Fishbein MC, Li F (2013) Canonical WNT/β-catenin signaling in epicardial fibrosis of failed pediatric heart allografts with diastolic dysfunction. Cardiovasc Pathol 22: 54–57. https://doi.org/10.1016/j.carpath.2012.03.004

Yeh CC, Li H, Malhotra D, Turcato S, Nicholas S, Tu R, Zhu BQ, Cha J, Swigart PM, Myagmar B, Baker AJ, Simpson PC, Mann MJ (2010) Distinctive ERK and p38 signaling in remote and infarcted myocardium during post-mi remodeling in the mouse. J Cell Biochem 109(6): 1185–1191. https://doi.org/10.1002/jcb.22498.

Yoshimura A, Muto G (2011) TGF-β Function in Immune Suppression. Curr Top Microbiol Immuno., 350: 127–147. https://doi.org/10.1007/82_2010_87

Zeisberg EM, Tarnavski O, Zeisberg M, Dorfman AL, McMullen JR, Gustafsson E, Chandraker A, Yuan X, Pu WT, Roberts AB, Neilson EG, Sayegh MH, Izumo S, Kalluri R (2007) Endothelial-to-mesenchymal transition contributes to cardiac fibrosis Nat Med 13: 952–961. https://doi.org/10.1038/nm1613

Zhai CG, Xu YY, Tie YY, Zhang Y, Chen WQ, Ji XP, Mao Y, Qiao L, Cheng J, Xu QB, Zhang C (2018) DKK3 overexpression attenuates cardiac hypertrophy and fibrosis in an angiotensin-perfused animal model by regulating the ADAM17/ACE2 and GSK-3β/β-catenin pathways. J Mol Cell Cardiol 114: 243–252. https://doi.org/10.1016/j.yjmcc.2017.11.018

Zhan M, Kanwar YS (2014) Hierarchy of molecules in TGF-β1 signaling relevant to myofibroblast activation and renal fibrosis. Am J Physiol Renal Physiol 307: F385–F387. https://doi.org/10.1152/ajprenal.00338.2014.

Zhang X, MacDonald BT, Gao H, Shamashkin M, Coyle AJ, Martinez R V., He X (2016) Characterization of Tiki, a New Family of Wnt-specific Metalloproteases. J Biol Chem 291: 2435–2443. https://doi.org/10.1074/jbc.M115.677807

Zhang YM, Bo J, Taffet GE, Chang J, Shi J, Reddy AK, Michael LH, Schneider MD, Entman ML, Schwartz RJ, Wei L (2006) Targeted deletion of ROCK1 protects the heart against pressure overload by inhibiting reactive fibrosis. FASEB J 20: 916–925. https://doi.org/10.1096/fj.05-5129com

Zhang Y, Liu Y, Zhu XH, Zhang XD, Jiang DS, Bian ZY, Zhang XF, Chen K, Wei X, Gao L, Zhu LH, Yang Q, Fan GC, Lau WB, Ma X, Li H (2014) Dickkopf-3 attenuates pressure overload-induced cardiac remodelling. Cardiovasc Res 102: 35–45. https://doi.org/10.1093/cvr/cvu004

Zhang YE (2009) Non-Smad pathways in TGF-β signaling. Cell Res 19: 128–139. https://doi.org/10.1038/cr.2008.328

Zhou B, Pu WT (2011) Epicardial epithelial-to-mesenchymal transition in injured heart. J Cell Mol Med 15: 2781–2783. https://doi.org/10.1111/j.1582-4934.2011.01450.x
