Regular paper

Overexpression of the zinc finger protein gene OsZFP350 improves root development by increasing resistance to abiotic stress in rice

Zhenhui Kang1, Tong Qin2 and Zhiping Zhao3✉

1School of Bioengineering, Sichuan University of Science and Engineering, Yibin 644005, Sichuan, China; 2Key Laboratory of Bio-Resource and Eco-Environment of Ministry of Education, College of Life Sciences, Sichuan University, Chengdu 610065, China; 3School of Chemical Engineering, Sichuan University of Science and Engineering, Zigong 643000, China

The root system of rice is influenced by various environmental factors. However, how the root system responds to abiotic stress has not yet been fully understood. A zinc finger protein gene, OsZFP350, is exclusively expressed in the rice root, but its biological function needs to be investigated. Expression of OsZFP350 was up-regulated by salt, drought and high temperature, indicating that it might be a regulator in response to abiotic stress in rice root. The primary root length, the number of adventitious and lateral roots was significantly increased in OsZFP350 transgenic plants when compared to the wild-type. In addition, our results also show that the up-regulated OsZFP350 could significantly increase the germination rate of seeds under abiotic stress, and attenuate the heat, salinity and drought stress during the development of rice roots. Based on these findings, it could be concluded that OsZFP350 plays a positive role in the adaptability of rice roots to abiotic stress.

Key words: abiotic stress, OsZFP350, rice, root system, zinc finger protein

Received: 10 Januray, 2019; revised: 07 March, 2019; accepted:
16 April, 2019; available on-line: 24 May, 2019

✉e-mail: zhipingzhao@cqu.edu.cn

Acknowledgements of Financial Support: This work was supported by National Science Fundation of China (31601291), Project of Department of Education in Sichuan Province (17ZB0315), and Project of Talent Introduction in Sichuan University of Science and Engineering (2015RC27 and 2016RCL14).

Abbreviations: ABA, abscisic acid; JA, jasmonic acid; SA, salicylic acid; α-NAA, α-naphthylacetate; ZFPs, zinc finger proteins; ORF, open reading frame; DAG, day after germination; GA, gibberellic acid; qPCR, quantitative PCR reactions

Introduction

Root is an essential organ for the growth and development of rice, which plays a vital role in absorbing, transporting and storing water and nutrients. Therefore, it directly determines many agronomic traits, such as the yield, quality, stress resistance and wide adaptability of rice. Morphogenesis of the root system in rice is influenced by both, the endogenous genes and exogenous environmental stimulus. Mutation of those intrinsic genes would have mainly resulted in such a wide phenotype as shorter main root, decreased number of adventitious and lateral roots, no lateral root, shorter or even no root hairs (Hossain et al., 2017; Zhang et al., 2017; Zhang et al., 2018; Parry et al., 2018). Environmental factors affecting the root morphology mainly include the temperature (thermotropism), humidity (hydrotropism), gravity (gravitropism), light (phototropism), touch (thigmotropism), metal ions and other chemicals (chemotropism) (Zhao et al., 2015). In addition, endogenous hormones (auxins, etc.) also play key roles in the morphogenesis of rice roots, which function together to determine the size of the apical meristem in the root tips (Sun et al., 2018).

To date, over thirty genes relating to root traits in rice have been well characterized, such as auxin influx carrier gene AUX1 (Dindas et al., 2018), root-crown formation gene ARL1 (Coudert et al., 2010; Kitomi et al., 2011) and WOX11(Zhao et al., 2015; Zhou et al., 2017; Cheng et al., 2018), all of which participate in the morphogenesis of the main root, adventitious and lateral root and root hairs, respectively, through regulating either the phytohormone signaling or the uptake of inorganic salt. Actually, phytohormone signaling regulated by these genes is the major factor for the root morphogenesis during postembryonic development, in which cytokinins, together with other hormones, i.e. auxin and ethylene, suppress the root growth through inhibiting cell proliferation and elongation (Street et al., 2016a). In detail, the auxin importer AUX1 is a positive regulator of response to cytokinins (Parry et al., 2018), while the complex formed by two receptor-like kinases, Receptor-like kinase FERONIA (FER) and RPM1-induced protein kinase (RIPK), transmits Rapid Alkalinization Factor 1 (RALF1) peptide to inhibit root growth in Arabidopsis, which is a typical evidence of phytohormone interaction in the root (Street et al., 2016b). The AP2/ERF transcription factor CROWN ROOTLESS5 (CRL5) controls the crown root initiation through the induction of OsRR1, which is a type-A response regulator in cytokinin signaling (Kitomi et al., 2011). In addition, the OsCKX4 gene controls rice crown formation by integrating cytokinin and auxin signaling (Gao et al., 2014), whereas WOX11 is involved in the canopy development of roots (Cheng et al., 2018). Overexpression of WOX11 accelerated cell differentiation in the root canopy, leading to early growth and production of the outer nodes of rice by affecting the auxin and cytokinin signaling transduction (Zhou et al., 2017). The interaction between WOX11 and an AP2/ERF protein ERF3 promotes the development of root crown through cytokinin signaling (Zhao et al., 2015).

External nutrients are also important factors in the development of rice roots, uptake of which is carried out by several transporters. The IRT1 (Boonyaves et al., 2016) and LsiL (Khan & Gupta, 2018) control the uptake and translocation of Fe2+ and Si2+ in rice roots. Overexpression of IRT1 enhances the ability of rice roots to absorb Fe2+ from the soil. When the LsiL gene was deleted, the storage and transport of Si2+ was reduced in the rice roots. The SKC1 encodes a member of the HKT transporter family expressed in parenchyma cells around the vascular bundle of the xylem. This type of Na+ selective transporter regulates K+/Na+ balance under salt stress in vivo (Kobayashi et al., 2017). In addition, the glucosamine-6-phosphate acetyltransferase is encoded by OsGNA1 (Jiang et al., 2005), without which the rice seedlings did not grow at 25°C.

During the plant growth process, the response of roots to abiotic stress is reflected by the corresponding expression of stress-responsive genes. For instance, abscisic acid (ABA) or jasmonic acid (JA) is involved in regulating genes associated with drought and injury, i.e. salT and JA responsive genes which belong to the LEA family,. It had been shown that JA significantly induced the increase of pathogen-associated protein (PR-1 and PR-10) and JIRs in roots (Gonzalez et al., 2017). The ABA can induce the transcript accumulation of OsLEA3 but negatively affect the expression of salT, and JA negatively affects ABA-induced transcription of OsLEA3; while both, the ABA and JA can induce the transcription of salT (Duan and Cai, 2012). What’s more, overexpression of the OsERF71, a transcription factor responsive to drought stress, altered the root structure and enhanced drought resistance of rice (Lee et al., 2016). A very recent study had shown that four 14-3-3 isoforms, prominently express in rice roots, have exhibited diverse expression patterns in the stress response to salt and drought (Zhang et al., 2017).AtUSPL1, mostly prevalent in the Arabidopsis root, is up-regulated as part of the ABA-mediated moisture stress response (Harshavardhan et al., 2014). Loss of function of AtUSPL1 increases the moisture stress tolerance, suppressing in turn the drought stress response in plants. It was also found that both, PEG and heavy metals can rapidly and distinctly induce expression of OsGSTU3 and OsGSTU4 (glutathione S transferase genes) in rice seedling roots, besides such hormones and growth regulators as salicylic acid (SA), JA and α-naphthylacetate (α-NAA). Moreover, antioxidants are rapidly induced in rice roots, indicating that redox signaling is also involved in the regulation of these stress responses (Moons, 2003).

The zinc finger proteins (ZFPs) have derived their name from the ‘finger-like’ zinc finger domain formed by Zn2+ and the surrounding conserved cysteine (Cys) or histidine (His) residues. The ZFPs were originally found in the transcription factor TFIIIA of Xenopus oocytes, the most abundant class of transcription factors in eukaryotes. They are widely involved in gene transcription, translation, cytoskeleton construction, mRNA trafficking, protein folding and chromatin remodeling (Imbeault et al., 2017; Patel et al., 2018). At present, the ZFPs found in higher plants mainly possess two major functions. One is involved in abiotic stresses, such as high salt and drought, and the other is a SUPERMAN-like protein, which is basicly involved in the development of flowers (Fu et al., 2017). Interestingly, overexpression of such genes can sometimes cause dwarf and other abnormal phenotypes in plants (Kazama et al., 2009). The protein encoded by the OsZFP350 gene in rice has a molecular weight (MW) of 35 kDa and is therefore named OsZFP350, which is exclusively expressed in roots. Specifically, several members of the C2H2-type ZFPs in rice have also been shown to be involved in the responses to drought, salinity and oxidative stress (Patel et al., 2018). However, until now, there was no report on the involvement of ZFPs in the process of root morphogenesis yet. In this study, OsZFP350 gene driven by CaM 35S promoter (35S::OsZFP350) was overexpressed in rice, and the effects on the primary root length and the number of adventitious and lateral roots in transgenic plants had been investigated. Our results demonstrate that overexpression of OsZFP350 significantly increased the adaptability of rice roots to abiotic stress.

Materials and Methods

Rice and cultivation. Rice (Oryza sativa L. cv Japonica, Nipponbare) was used for the construction of overexpressing plants in this experiment. The rice plants were grown in a greenhouse at 30°C and 70% humidity under a photoperiod of 16 h light/8 h dark.

Vector construction and genetic transformation. The binary expression vector pCAMBIA1301 containing the GUS reporter gene and hygromycin resistant genes was used to construct the overexpressing vector in this study. Total RNA was extracted from rice roots, and mRNA was purified from total RNA and reversely transcribed into the first strand cDNA as PCR templates. Specific primers (forward: 5’-CGGAATTCATGGATCCAGCAAGGTACTGG-3’ and reverse: 5’-CCAAGCTTCTACTGTTCTTTTGGGGCTTCC-3’, restriction sites are underlined) were used to amplify the full-length open reading frame (ORF) of the OsZFP350 gene (Os05g0286100), which was then verified by sequencing. The fragment was double digested by EcoRI and HindIII and inserted into plasmid pCAMBIA1301 to construct the overexpression vector 35S::OsZFP350. Rice callus was infested with Agrobacterium EHA105 harboring the overexpressing vector, and then screened in 1/2 MS medium containing 75 mg L−1 hygromycin until differentiation. The transgenic seedlings were transferred into soil for continued growth. Positive plants were detected by PCR with amplification of the GUS gene and 35S promoter.

Stress treatment. For stress treatment, the wild-type rice seedlings of 15 d after germination (15 DAG) were selected. For testing resistance to various stress factors, NaCl (1.5 M), PEG6000 (20%) for mimicing drought, ABA (100 mg L–1), IAA (100 mg L–1), GA (100 μM), cold (4°C) and heat (42°C) stresses were performed for 36 h in 1/2 MS liquid medium. Temperature stress was carried out in a growth chamber, and seedlings under the other abiotic stresses were grown in a greenhouse. To verify the resistance ability of transgenic plants to abiotic stresses, the seeds of T2 generation and wild-type were germinated for 2 d in the dark, then 15 DAG seedlings under normal growth condition were placed either in the 1/2 MS solid medium with a final concentration of 0.15 M NaCl or in 1/2 MS liquid medium containing 20% PEG6000. After 36 h of cultivation at 30°C with a photoperiod of 16 h light/8 h darkness, pictures were taken of the roots of transgenic and wild-type seedlings and the parameters of the root system were analyzed with the ImageJ software (version 8.0). For extraction of total RNA, the roots of the seedlings were rinsed with deionized water and quickly cut into pieces either for subsequent experiments, or freezed by liquid N2 and stored at –80°C until use.

Gene expression analysis. Total RNA of transgenic and wild-type roots and leaves was extracted and reversely transcribed into cDNA which was used as templates for quantitative PCR (qPCR). Primer sequences were: forward 5’-AACGCCCCTCTTGTCTCATC-3’ and reverse 5’-AGTCCCTTCTTGATCGGCAC-3’. The qPCR reaction assay was performed in 20 μL with the final concentration of 200 μM for each primer and 1×SYBR PremixEX Taq II (Takara, Japan). Reactions were carried out in a CFX96 thermocycler (Bio-rad, USA). The PCR program was set as 95°C for 1 min, 95°C for 5 s, 60°C for 30 s, 40 cycles. A melting curve was applied to identify the specificity of the PCR products. The expression level was normalized by Actin as an internal control and then calculated using the 2−ΔΔCt method. Primer sequences of OsLEA3, OsDREB1A and OsDREB1B are the same as in Tang et al., (2019), and the primer for OsHSP70 are: forward 5’-CTCCCTCCCAACTCGCTTGA-3’ and reverse 5’-AACCCGTTCACAATAGATCCTC-3’.

Bioinformatics and statistical analysis. All of the experiments were repeated three times. SPSS software (version 13) and the Tukey test were used for statistical analysis and significant difference analysis, respectively. The BLASTP software was applied to search the non-redundant protein sequence databases to verify OsZFP350 homolog. Alignment of the OsZFP350 amino acid sequence for biological evolution analysis was performed using the MEGA 7.0 software.

Results

Biological evolution analysis

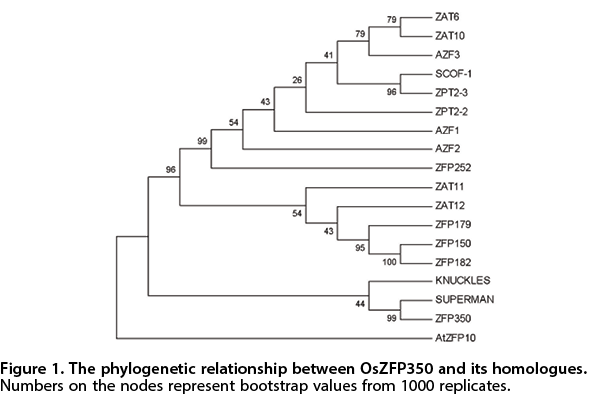

Homologous proteins of OsZFP350 were found in rice and other species with the use of BLAST, including OsZFP252 (AAO46041.1), OsZFP182 (AAP42461.1), OsZFP179 (AAL76091.1) and OsZFP150 (AAP42460.1) in rice, ZAT6 (AT5G04340), ZAT10 (AT1G27730), ZAT11 (AT2G37430), ZAT12 (AT5G59820), AZF1 (AT5G67450), AZF2 (AT3G19580), AZF3 (AT5G43170), AtZFP10 (AT2G37740), KNUCKLES (AT5G14010), and SUPERMAN (AT3G23130) in Arabidopsis, ZPT2-2 (BAA05077.1), and ZPT2-3 (BAA05079.1) in Petunia and Soybean SCOF-1 (AAB39638.1). The analysis (Fig. 1) showed that the homologous proteins of OsZFP350 were widely distributed in higher plants, and this large family is obviously conserved in plants. Cluster analysis showed that OsZFP350 was closely related to KNUCKLES and SUPERMAN in A. thaliana. Plants overexpressing them behave normally, but the development of genitals is impaired in mutants. In detail, the KNUCKLES mediates WUS gene to inhibit the meristem determination in flowering (Sun et al., 2009). The SUPERMAN is a flower-specific gene that controls the stamen and carpel boundary (Prunet et al., 2017). Interestingly, AtZFP10, which is closely related to OsZFP350, is also involved in the floral development, and its transgenic plants have a dwarf phenotype (Dinkins et al., 2002). Other zinc finger transcription factors in these species are relatively distant from OsZFP350 but are basically related to abiotic stresses, such as heavy metals, high salinity and light. Thus, this study mainly focuses on the role of OsZFP350 in root morphology and resistance to abiotic stress in rice seedlings.

The OsZFP350 gene had a spatio-temporal expression pattern and was up-regulated by abiotic stress

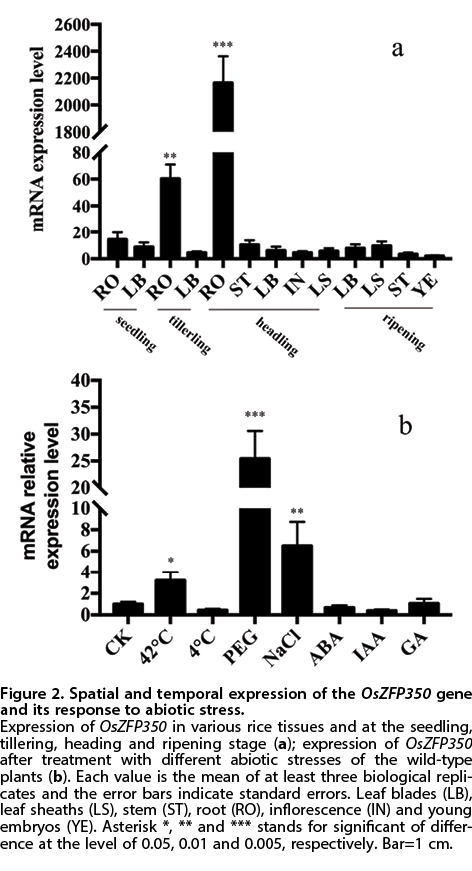

The spatial and temporal expression pattern of OsZFP350 gene was performed by using mRNA extracted from different tissues of rice at four growing stages. Fig. 2a shows that the OsZFP350 gene is mainly expressed in the roots. In the seedling stage, there was no significant difference in the expression level of OsZFP350 between the root (RO) and the leaf blade (LB). When the rice enters into the tillering stage, the expression level of OsZFP350 in the root increased significantly, and reached its peak at the heading stage. However, the expression in roots was significantly decreased after the heading stage. This indicates that OsZFP350 has an obvious spatio-temporal and root-specific expression pattern. In a word, OsZFP350 is a root specific expressing gene.

Next, the seedlings were treated with such series of stress as 0.15 M NaCl, 20% PEG6000, 100 mg L–1 IAA, 100 mg L–1 ABA, 100 μM GA, heat and cold stress for 36 h. The root mRNA was extracted and qPCR was used to analyze the expression of OsZFP350 gene in roots under different stress conditions. As shown in Fig. 2b, the expression level of OsZFP350 was significantly increased after treatment with PEG6000 and NaCl, as well as under heat stress. However, the expression level of OsZFP350 after treatment with GA, IAA, ABA and cold stress was similar to that of control. These results indicate that high salt, drought and high temperature would up-regulate the expression of OsZFP350.

Effects of upregulated expression of OsZFP350 on root growth and development

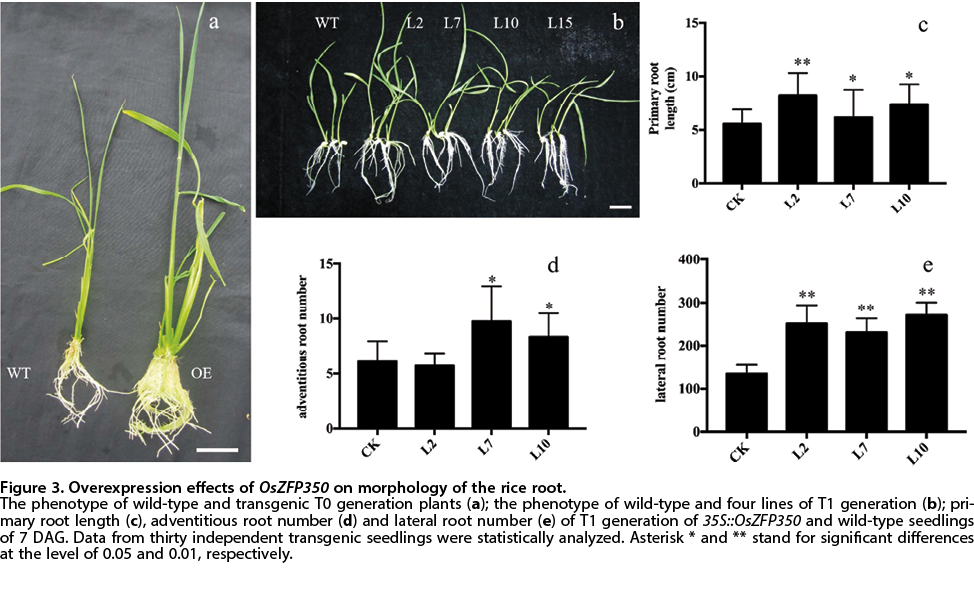

We transformed the 35S::OsZFP350 vector into rice calli by Agrobacterium-mediated transformation. Twenty-five positive transgenic lines were obtained and verified by PCR. It can be seen from Fig. 3a that the root volume and length of the T0 transgenic plants were significantly larger and longer than those of the wild-type at the seedling stage, and the biomass above ground was also significantly higher than the wild-type. Fifteen seperate seedlings of the T1 generation were randomly selected for OsZFP350 expression analysis by qPCR. It was found that the expression level of OsZFP350 in the line of OE-2, OE-5, OE-7, OE-10, OE-15 was significantly increased by 5-20 times when compared to the wild-type (Fig. S1 at https://ojs.ptbioch.edu.pl/). We then selected OE-2, OE-7 and OE-10 for the following study. Firstly, seeds of the T1 generation of OE-2, OE-7 and OE-10 were germinated in 1/2 MS solid medium, and the root phenotype was quantified after the seedlings were cultivated vertically for 7 d. Then, positive transgenic seedlings (we renamed them as L2, L7 and L10, respectively, because of T1 generation) were verified again by PCR. We finally performed a statistical analysis of the primary root length, adventitious root and lateral root number of the seedlings (30 for the wild-type and 30 for each transgenic line in total). As shown in Fig. 3b, 3c and 3d respectively, the primary root length, the number of adventitious and lateral roots of 35S::OsZFP350 transgenic plants was significantly increased when compared to the wild type. These results reveled that OsZFP350 might play a positive role in rice root morphology.

The adaptability of transgenic plants to abiotic stress

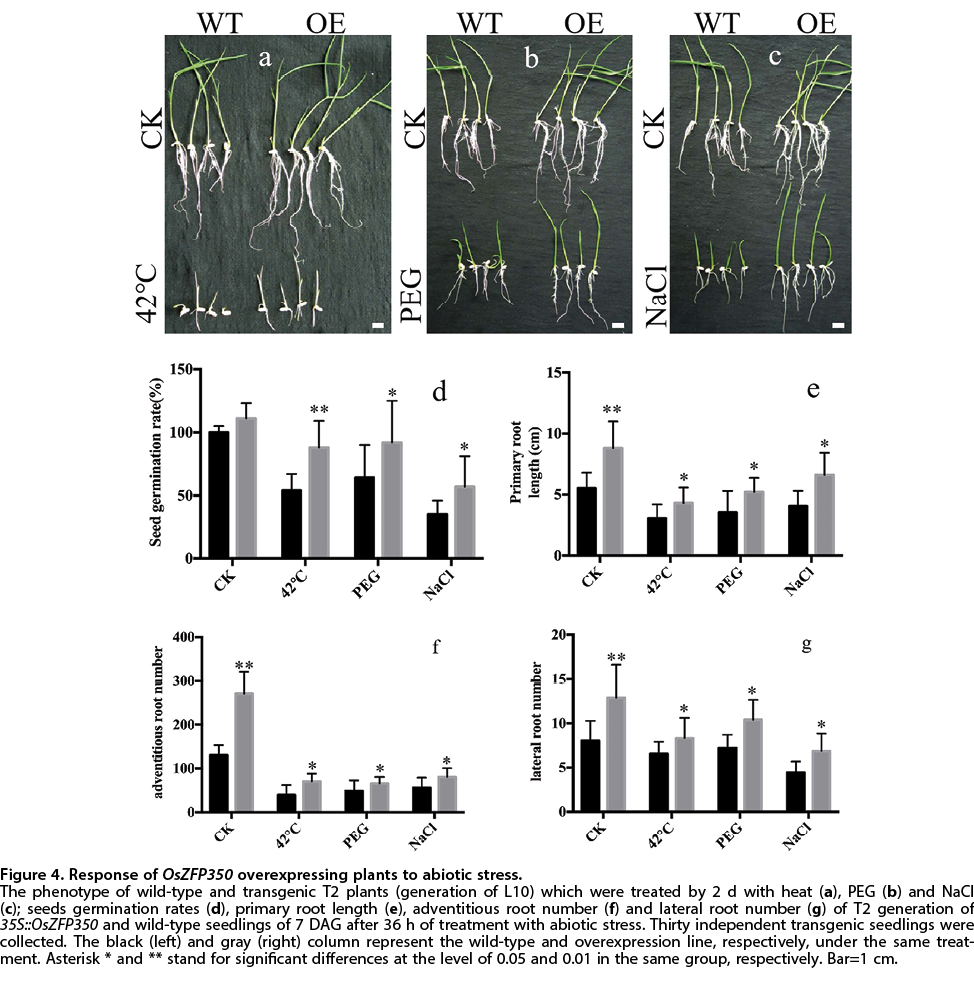

Since the expression of OsZFP350 had a various degree of response to PEG, NaCl and heat stress, we therefore treated both, the seeds and transgenic plants of the T1 generation, with the identical stress to investigate the effects of OsZFP350 overexpression on the growth and development of the root system in rice plants. Although all – NaCl, PEG and heat stress inhibited the growth of wild-type and transgenic seedlings when compared to the normal growth conditions, the stress resistance was significantly enhanced in OsZFP350 overexpressing plants when compare to the wild-type. As shown in Fig. 4a, the germination rates of transgenic lines, when compared to wild-type, after treatment with PEG, NaCl, and heat stress were 91.3% to 85.7%, 90% to 65% and 100% to 50%, respectively. In addition, Fig. 4b shows that the stress treatment had inhibited the initial rooting of all of the sample plants. Although the length was shortened, the primary root of the transgenic plants was still significantly longer than that of the wild-type. As it is illustrated in Fig. 4c, under different stress conditions, the number of adventitious roots in the transgenic plants was significantly higher than in the case of the wild-type. What’s more, it can be seen in Fig. 4d that the number of the lateral roots of the transgenic plants after different stress treatments was significantly higher than the wild-type. These results show that the up-regulated expression of OsZFP350 could significantly increase the germination rate of seeds under abiotic stress, and weaken the influence of the heat, high salinity and drought stress on the growth and development of rice roots. In general, overexpression of OsZFP350 significantly increased the adaptability of rice roots to high salt, drought and heat stress.

Stress-related genes in transgenic plants are
up-regulated in regard to heat, drought
and salinity stress

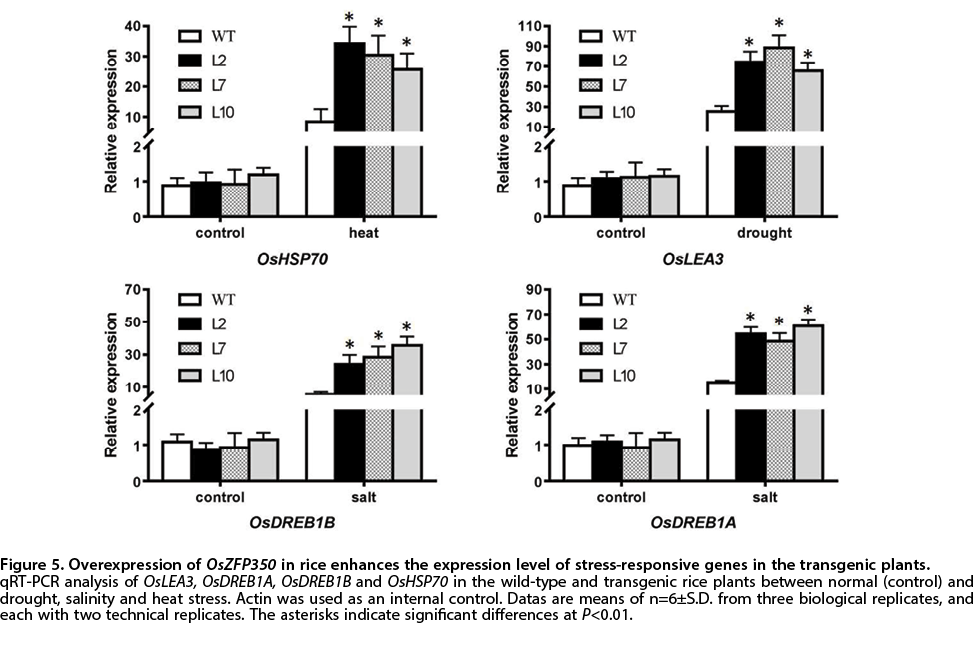

The morphological characteristics of transgenic rice roots had clearly revealed substantially improved resistance of OsZFP350 overexpressing plants to drought and salt stress. It had been shown that overexpression of such genes could strengthen the tolerance of transgenic plants to abiotic stresses (Tang et al., 2019). In order to elucidate the potential molecular mechanism underlying the increased stress tolerance, we finally compared the expression level of abiotic stress-related genes (OsLEA3, OsDREB1A, OsDREB1B and OsHSP70) of transgenic plants between normal growth and stress conditions. As is displayed in Fig. 5, when compared to normal growth conditions, the expression of OsLEA3, OsDREB1A, OsDREB2A and OsHSP70 was constitutively elevated in the transgenic and wild-type plants under drought and salinity stress conditions. In addtion, the expression of these genes was significantly higher in the transgenic plants than the wild-type plants after treatment with heat, drought and salinity stress. Interestingly, we also found that under normal growth conditions, there was no significant difference in the expression of these stress-related genes between the transgenic and wild-type plants, which is consistant with the results listed by Tang and others (Tang et al., 2019). These results show that stress-related genes in the OsZFP350 transgenic plants are up-regulated in regards to abiotic stresses.

Discussion

To our knowledge, this study is the first to describe the biofunctional characterization of a rice zinc finger protein gene, OsZFP350, which plays a role in response to abiotic stress. During long period of interaction with environmental cues, rice plants have evolved series of antagonisms to cope with abiotic stresses. Increased soil salinity has a direct impact on the reduction of plant growth and crop yield, and it is therefore fundamental to understand the molecular mechanism underlying gene expression regulation under adverse environmental conditions. For example, RING E3 ligases were found to be involved in the transduction of abiotic stress signals, in which OsSIRP1 is a negative regulator of salinity stress tolerance mediated by ubiquitin-mediated protein degradation (Hwang et al., 2016). OsMADS25 confers rice salinity tolerance via ROS scavenging, and partially ABA signaling (Yu et al., 2015; G. Zhang et al., 2018; Xu et al., 2018). OsJAZ1 plays a role in regulating the drought resistance of rice partially via the ABA and JA pathways (Fu et al., 2017). WOX11 is involved in the control of crown root development through cytokinin signals and redox in rice (Zhao et al., 2015; Zhou et al., 2017; Cheng et al., 2018). Even in regard to ZFPs, OsZFP36 is shown to be an important regulator of the cross-talk between NADPH oxidase and ABA signaling (Zhang et al., 2014). Although our results had revealed that OsZFP350 plays a role in the anti-abiotic stress, the molecular mechanism remains elusive. As a transcription factor, OsZFP35 might directly regulate some certain genes being directly involved in a given abiotic stress (Fig. 5). Future work would aim to identify these genes as targets by yeast two-hybrid assay and/or cofactors of OsZFP350 through yeast single-hybrid or Chip-Seq methods.

The spatio-temporal expression pattern of OsZFP350 indicated that this gene was mainly expressed in roots at the tillering and heading stages of rice, while the expression was extremely low in other periods and tissues. In view of the important roles of root-specific expressing genes, we speculated that OsZFP350 may be closely related to the growth and morphogenesis of rice roots. In this study, we used 0.15 M NaCl and 20% PEG to mock the salt and drought stresses to rice seedlings. It was found that the expression of OsZFP350 in roots of rice seedlings was significantly increased with regard to PEG and NaCl (Fig. 2b). Therefore, we propose that the up-regulated expression of OsZFP350 might raise the resistant potential of rice plants to high salt, drought or even heat stress. In general, heat or cold stress is often coupled with drought and high salinity, so that OsZFP350 expression was significantly increased under high temperature, but there was no induction at a low temperature. Thus, it cannot be ruled out that OsZFP350 might also play a role under high temperature conditions in rice, as the heat stress marker gene HSP70 is also up-regulated in transgenic plants.

Extensive publications have recently reviewed that ABA signaling is involved in the regulation of abiotic stress in plants (Julkowska & Testerink, 2015; de Zelicourt et al., 2016; Edel & Kudla, 2016). Given that OsZFP350 was induced by the salt and drought stresses, it was possible that it might play a role in root morphogenesis through the ABA signaling. However, after treatment with IAA, ABA, and GA for 36 h respectively, the roots of rice seedlings showed inhibited expression of OsZFP350 by both, IAA and ABA, but not GA (Fig. 2b). This suggested that OsZFP350 might participate in the development of rice roots through an ABA-independent signaling pathway, but the GA signaling.

It was also found in this work that after treatment with PEG, NaCl and heat stress, the transgenic plants showed stronger environmental adaptability and higher germination rate when compared to the wild-type (Fig. 4). It had been reported that overexpression of OsNAC10 under the control of the root-specific promoter RCc3 improves drought tolerance and grain yield in transgenic rice plants (RCc3:OsNAC10) under field drought conditions (Jeong et al., 2010). The overexpression of OsZFP350 resulted in a robust root system in transgenic rice plants under abiotic stress conditions, which would be beneficial to increase rice yield. In summary, our experiments have provided important application prospects for the development of a stress-tolerant rice genotype.

Conflict of interest

The authors declare no conflict of interest.

References

Boonyaves K, Gruissem W, Bhullar NK (2016) NOD promoter-controlled AtIRT1 expression functions synergistically with NAS and FERRITIN genes to increase iron in rice grains. Plant Mol Biol 90: 207–215. https://doi.org/10.1007/s11103-015-0404-0

Cheng S, Tan F, Lu Y, Liu X, Li T, Yuan W, Zhao Y, Zhou DX (2018) WOX11 recruits a histone H3K27me3 demethylase to promote gene expression during shoot development in rice. Nucleic Acids Res 46: 2356–2369. https://doi.org/10.1093/nar/gky017

Coudert Y, Perin C, Courtois B, Khong NG, Gantet P (2010) Genetic control of root development in rice, the model cereal. Trends Plant Sci 15: 219–226. https://doi.org/10.1016/j.tplants.2010.01.008

de Zelicourt A, Colcombet J, Hirt H (2016). The role of MAPK modules and ABA during abiotic stress signaling. Trends Plant Sci 21: 677–685. https://doi.org/10.1016/j.tplants.2016.04.004

Dindas J, Scherzer S, Roelfsema M, von Meyer K, Muller HM, Al-Rasheid K, Palme K, Dietrich P, Becker D, Bennett MJ, Hedrich R (2018) AUX1-mediated root hair auxin influx governs SCF(TIR1/AFB)-type Ca(2+) signaling. Nat Commun 9: 1174. https://doi.org/10.1038/s41467-018-03582-5

Dinkins R, Pflipsen C, Thompson A, Collins GB (2002) Ectopic expression of an Arabidopsis single zinc finger gene in tobacco results in dwarf plants. Plant Cell Physiol 43: 743–750. https://doi.org/10.1093/pcp/pcf086

Duan J, Cai W (2012) OsLEA3-2, an abiotic stress induced gene of rice plays a key role in salt and drought tolerance. PLoS One 7: e45117. https://doi.org/10.1371/journal.pone.0045117

Edel KH, Kudla J (2016) Integration of calcium and ABA signaling. Curr Opin Plant Biol 33: 83–91. https://doi.org/10.1016/j.pbi.2016.06.010

Fu J, Wu H, Ma S, Xiang D, Liu R, Xiong L (2017) OsJAZ1 Attenuates drought resistance by regulating JA and ABA signaling in rice. Front Plant Sci 8: 2108. https://doi.org/10.3389/fpls.2017.02108

Gao S, Fang J, Xu F, Wang W, Sun X, Chu J, Cai B, Feng Y, Chu C (2014) Cytokinin oxidase/dehydrogenase 4 integrates cytokinin and auxin signaling to control rice crown root formation. Plant Physiol 165: 1035–1046. https://doi.org/10.1104/pp.114.238584

Gonzalez LE, Keller K, Chan KX, Gessel MM, Thines BC (2017) Transcriptome analysis uncovers Arabidopsis F-box stress induced 1 as a regulator of jasmonic acid and abscisic acid stress gene expression. BMC Genomics 18: 533. https://doi.org/10.1186/s12864-017-3864-6

Harshavardhan VT, Van Son L, Seiler C, Junker A, Weigelt-Fischer K, Klukas C, Altmann T, Sreenivasulu N, Baumlein H, Kuhlmann M (2014) AtRD22 and AtUSPL1, members of the plant-specific BURP domain family involved in Arabidopsis thaliana drought tolerance. PLoS One 9: e110065. https://doi.org/10.1371/journal.pone.0110065

Hossain MS, Kawakatsu T, Kim KD, Zhang N, Nguyen CT, Khan SM, Batek JM, Joshi T, Schmutz J, Grimwood J, Schmitz RJ, Xu D, Jackson SA, Ecker JR, Stacey G (2017) Divergent cytosine DNA methylation patterns in single-cell, soybean root hairs. New Phytol 214: 808–819. https://doi.org/10.1111/nph.14421

Hwang SG, Kim JJ, Lim SD, Park YC, Moon JC, Jang CS (2016) Molecular dissection of Oryza sativa salt-induced RING Finger Protein 1 (OsSIRP1): possible involvement in the sensitivity response to salinity stress. Physiol Plant 158: 168–179. https://doi.org/10.1111/ppl.12459

Imbeault M, Helleboid PY, Trono D (2017) KRAB zinc-finger proteins contribute to the evolution of gene regulatory networks. Nature 543: 550–554. https://doi.org/10.1038/nature21683

Jeong JS, Kim YS, Baek KH, Jung H, Ha SH, Do CY, Kim M, Reuzeau C, Kim JK (2010) Root-specific expression of OsNAC10 improves drought tolerance and grain yield in rice under field drought conditions. Plant Physiol 153: 185–197. https://doi.org/10.1104/pp.110.154773

Jiang H, Wang S, Dang L, Wang S, Chen H, Wu Y, Jiang X, Wu P (2005) A novel short-root gene encodes a glucosamine-6-phosphate acetyltransferase required for maintaining normal root cell shape in rice. Plant Physiol 138: 232–242. https://doi.org/10.1104/pp.104.058248

Julkowska MM, Testerink C (2015) Tuning plant signaling and growth to survive salt. Trends Plant Sci 20: 586–594. https://doi.org/10.1016/j.tplants.2015.06.008

Kazama Y, Fujiwara MT, Koizumi A, Nishihara K, Nishiyama R, Kifune E, Abe T, Kawano S (2009) A SUPERMAN-like gene is exclusively expressed in female flowers of the dioecious plant Silene latifolia. Plant Cell Physiol 50: 1127–1141. https://doi.org/10.1093/pcp/pcp064

Khan E, Gupta M (2018) Arsenic-silicon priming of rice (Oryza sativa L.) seeds influence mineral nutrient uptake and biochemical responses through modulation of Lsi-1, Lsi-2, Lsi-6 and nutrient transporter genes. Sci Rep 8: 10301. https://doi.org/10.1038/s41598-018-28712-3

Kitomi Y, Ito H, Hobo T, Aya K, Kitano H, Inukai Y (2011) The auxin responsive AP2/ERF transcription factor CROWN ROOTLESS5 is involved in crown root initiation in rice through the induction of OsRR1, a type-A response regulator of cytokinin signaling. Plant J 67: 472–484. https://doi.org/10.1111/j.1365-313X.2011.04610.x

Kobayashi NI, Yamaji N, Yamamoto H, Okubo K, Ueno H, Costa A, Tanoi K, Matsumura H, Fujii-Kashino M, Horiuchi T, Nayef MA, Shabala S, An G, Ma JF, Horie T (2017) OsHKT1;5 mediates Na(+) exclusion in the vasculature to protect leaf blades and reproductive tissues from salt toxicity in rice. Plant J 91: 657–670. https://doi.org/10.1111/tpj.13595

Lee DK, Jung H, Jang G, Jeong JS, Kim YS, Ha SH, Do CY, Kim JK (2016) Overexpression of the OsERF71 Transcription Factor Alters Rice Root Structure and Drought Resistance. Plant Physiol 172: 575–588. https://doi.org/10.1104/pp.16.00379

Moons A (2003) Osgstu3 and osgtu4, encoding tau class glutathione S-transferases, are heavy metal- and hypoxic stress-induced and differentially salt stress-responsive in rice roots. FEBS Lett 553: 427–432. https://doi.org/10.1016/s0014-5793(03)01077-9

Parry G (2018) Low phosphate puts auxin in the root hairs. Trends Plant Sci 23: 845–847. https://doi.org/10.1016/j.tplants.2018.07.009

Patel A, Yang P, Tinkham M, Pradhan M, Sun MA, Wang Y, Hoang D, Wolf G, Horton JR, Zhang X, Macfarlan T, Cheng X (2018) DNA conformation induces adaptable binding by tandem zinc finger proteins. Cell 173: 221–233.e12. https://doi.org/10.1016/j.cell.2018.02.058

Prunet N, Yang W, Das P, Meyerowitz EM, Jack TP (2017) SUPERMAN prevents class B gene expression and promotes stem cell termination in the fourth whorl of Arabidopsis thaliana flowers. Proc Natl Acad Sci U S A 114: 7166–7171. https://doi.org/10.1073/pnas.1705977114

Street IH, Mathews DE, Yamburkenko MV, Sorooshzadeh A, John RT, Swarup R, Bennett MJ, Kieber JJ, Schaller GE (2016a) Cytokinin acts through the auxin influx carrier AUX1 to regulate cell elongation in the root. Development 143: 3982–3993. https://doi.org/10.1242/dev.132035

Street IH, Mathews DE, Yamburkenko MV, Sorooshzadeh A, John RT, Swarup R, Bennett MJ, Kieber JJ, Schaller GE (2016b) Cytokinin acts through the auxin influx carrier AUX1 to regulate cell elongation in the root. Development 143: 3982–3993. https://doi.org/10.1242/dev.132035

Sun B, Xu Y, Ng KH, Ito T (2009) A timing mechanism for stem cell maintenance and differentiation in the Arabidopsis floral meristem. Genes Dev 23: 1791–804. https://doi.org/10.1101/gad.1800409

Sun HW, Tao JY, Bi Y, Hou MM, Lou JJ, Chen XN, Zhang XH, Luo L, Xie XN, Yoneyama K, Zhao QZ, Xu GH, Zhang YL (2018) OsPIN1b is involved in rice seminal root elongation by regulating root apical meristem activity in response to low nitrogen and phosphate. Sci Rep (2018) 8: 13014. https://doi.org/10.1038/s41598-018-29784-x

Tang Y, Bao X, Zhi Y, Wu Q, Guo Y, Yin X, Zeng L, Li J, Zhang J, He W, Liu W, Wang Q, Jia C, Li Z, Liu K (2019) Overexpression of a MYB family gene, OsMYB6, increases drought and salinity stress tolerance in transgenic rice. Front Plant Sci 10: 168. https://doi.org/10.3389/fpls.2019.00168

Xu N, Chu Y, Chen H, Li X, Wu Q, Jin L, Wang G, Huang J (2018) Rice transcription factor OsMADS25 modulates root growth and confers salinity tolerance via the ABA-mediated regulatory pathway and ROS scavenging. PLoS Genet 14: e1007662. https://doi.org/10.1371/journal.pgen.1007662

Yu C, Liu Y, Zhang A, Su S, Yan A, Huang L, Ali I, Liu Y, Forde BG, Gan Y (2015) MADS-box transcription factor OsMADS25 regulates root development through affection of nitrate accumulation in rice. PLoS One 10: e0135196. https://doi.org/10.1371/journal.pone.0135196

Zhang C, Simpson RJ, Kim CM, Warthmann N, Delhaize E, Dolan L, Byrne ME, Wu Y, Ryan PR (2018) Do longer root hairs improve phosphorus uptake? Testing the hypothesis with transgenic Brachypodium distachyon lines overexpressing endogenous RSL genes. New Phytol 217: 1654–1666. https://doi.org/10.1111/nph.14980

Zhang G, Xu N, Chen H, Wang G, Huang J (2018) OsMADS25 regulates root system development via auxin signalling in rice. Plant J 95: 1004-1022. https://doi.org/10.1111/tpj.14007

Zhang H, Liu Y, Wen F, Yao D, Wang L, Guo J, Ni L, Zhang A, Tan M, Jiang M (2014) A novel rice C2H2-type zinc finger protein, ZFP36, is a key player involved in abscisic acid-induced antioxidant defence and oxidative stress tolerance in rice. J Exp Bot 65: 5795–5809. https://doi.org/10.1093/jxb/eru313

Zhang S, Pan Y, Tian W, Dong M, Zhu H, Luan S, Li L (2017) Arabidopsis CNGC14 mediates calcium influx required for tip growth in root hairs. Mol. Plant 10: 1004–1006. https://doi.org/10.1016/j.molp.2017.02.007

Zhang Z, Zhang Y, Zhao H, Huang F, Zhang Z, Lin W (2017) The important functionality of 14-3-3 isoforms in rice roots revealed by affinity chromatography. J Proteomics 158: 20–30. https://doi.org/10.1016/j.jprot.2017.02.008

Zhao Y, Cheng S, Song Y, Huang Y, Zhou S, Liu X, Zhou DX (2015) The interaction between rice ERF3 and WOX11 promotes crown root development by regulating gene expression involved in Cytokinin Signaling. Plant Cell 27: 2469–2483. https://doi.org/10.1105/tpc.15.00227

Zhou S, Jiang W, Long F, Cheng S, Yang W, Zhao Y, Zhou DX (2017) Rice homeodomain protein WOX11 recruits a histone acetyltransferase complex to establish programs of cell proliferation of crown root meristem. Plant Cell 29: 1088–1104. https://doi.org/10.1105/tpc.16.00908
