Regular paper

­­6-Shogaol alleviates CCl4-induced liver fibrosis by attenuating inflammatory response in mice through the NF-κB pathway

Jian-li Qiu1, Yu-na Chai2, Feng-yang Duan1, Hui-juan Zhang1, Xiao-yan Han3,
Ling-yan Chen4✉ and Fei Duan3*­✉

1Department of Pediatrics, The First Affiliated Hospital of Henan University of Chinese Medicine, Zhengzhou, Henan, China; 2Department of Pharmacy, The First Affiliated Hospital of Zhengzhou University, Zhengzhou, Henan, China; 3Henan University of Chinese Medicine, Zhengzhou, Henan, China; 4Department of Rehabilitation, The First Affiliated Hospital of Guangzhou Medical University, Guangzhou, Guangdong, China

Liver fibrosis is a global health problem caused by a number of diseases related to liver damage. 6-Shogaol is a biologically active substance derived from the rhizome of Zingiber officinale Roscoe with anti-tumor, anti-inflammatory, and antioxidant properties. To explore the effects of 6-Shogaol on liver fibrosis, we used a mouse model of the condition in which mice were injected intraperitoneally with carbon tetrachloride (CCl4) at a dose of 2 mL/kg three times per week for a period of 4 weeks. 6-Shogaol was administered orally at two different doses (5 mg/kg, 20 mg/kg) 30 min before CCl4 injection. CCl4 induced severe liver injury and fibrosis, as indicated by significant inflammatory cell infiltration, disordered liver structure, increased activities of aspartate aminotransferase and alanine aminotransferase (liver damage markers) in serum, elevated collagen deposition, and overexpressed alpha-smooth muscle actin (α-SMA, marker of hepatic stellate cells activation) in liver tissues, whereas 6-Shogaol administration rescued those alterations dose-dependently. We found that 6-Shogaol suppressed CCl4-induced inflammatory response by inhibiting macrophage recruitment, release of pro-inflammatory factors, and activation of the NOD-like receptor family pyrin domain containing 3 (NLRP3) inflammasome in liver tissues. Additionally, we demonstrated that 6-Shogaol blocked CCl4-induced activation of the nuclear factor-kappa B (NF-κB) pathway, which is a vital transcriptional regulator of the inflammatory response. Altogether, this study demonstrates that 6-Shogaol can prevent CCl4-induced liver fibrosis by suppressing inflammatory response through the NF-κB pathway and suggests that 6-Shogaol can be used for liver fibrosis prevention.

Keywords: inflammatory response; liver fibrosis; NF-κB pathway; 6-Shogaol

Received: 27 July, 2021; revised: 18 October, 2021; accepted:
26 October, 2021; available on-line: 28 April, 2022

✉e-mail: qiuduan001@126.com (FD); 125505219@qq.com (L-yC)

Acknowledgements of Financial Support: This research was funded by the Special Research Project of Traditional Chinese Medicine in Henan Province (2019ZY2017) and the National Natural Science Foundation of China (81804142).

Abbreviations: ALT, alanine aminotransferase; AST, aspartate aminotransferase; CCl4, carbon tetrachloride; α-SMA, alpha-smooth muscle actin; NLRP3, NOD-like receptor family pyrin domain containing 3; NF-κB, nuclear factor-kappaB; PMSF, phenylmethanesulfonyl fluoride; RIPA, radioimmunoprecipitation assay; TGF-β1, transforming growth factor beta1; TLR4, toll-like receptor 4

Introduction

Liver fibrosis is a common health problem, usually induced by multiple factors, including alcohol consumption, non-alcoholic fatty liver disease, viral hepatitis, and cholestatic liver diseases (Aydin & Akcali, 2018). If not treated, it may result in advanced cirrhosis, liver failure, or hepatocellular carcinoma (HCC), and eventually death (Bataller & Brenner, 2005). Liver fibrosis is reversible in the early stage but becomes either irreversible or very difficult to reverse in the advanced stage (Ismail & Pinzani, 2009). The early stage of liver fibrosis is usually asymptomatic and often ignored by patients and their families. At present, liver transplantation is the only treatment for patients with advanced liver fibrosis (Manns, 2013). However, limited liver donations and high cost of the procedure hinders the treatment of liver fibrosis (Manns, 2013). Therefore, a search for drugs with therapeutic potential against liver fibrosis is much needed and may provide a basis for adjunct clinical treatment in a number of diseases.

6-Shogaol is a biologically active substance derived from the rhizomes of ginger (Zingiber officinale Roscoe) that gives the ginger its pungent taste (Semwal et al., 2015). 6-Shogaol exerts a variety of biological activities, such as anti-cancer, antioxidative, antibacterial, anti-inflammatory, and anti-allergic (Dugasani et al., 2010; Semwal et al., 2015). 6-Shogaol also has a hepatoprotective effect (Kim et al., 2014; Zhang et al., 2019; Zhuang et al., 2015). In addition, 6-Shogaol was reported to inhibit transforming growth factor beta1 (TGF-β1)-induced collagen type I alpha1 (COL1A1) expression and Smad2 phosphorylation in intestinal fibroblasts (Hiraishi et al., 2018). COL1A1 contributes to excessive tissue deposition of extracellular matrix (ECM) proteins and Smad2 is a vital factor for myofibroblast transformation (Xu et al., 2016). Therefore, 6-Shogaol may potentially prevent liver fibrosis as well.

The progression of liver fibrosis is dynamic and is characterized by excessive ECM production and activation of the hepatic stellate cells (Puche et al., 2013; Yin et al., 2013). Inflammation is an important contributor to liver fibrosis. A large number of inflammatory factors are produced during the process of liver fibrosis, which further activates hepatic stellate cells (Koyama & Brenner, 2017; Sanchez-Valle et al., 2012). Targeted suppression of inflammatory response is reported to alleviate liver fibrosis. For instance, progranulin attenuated carbon tetrachloride (CCl4)-induced liver fibrosis by downregulating the inflammatory response (Yoo et al., 2019). Macrophage Sphingosine 1-Phosphate Receptor 2 blockade attenuated bile duct ligation-induced liver inflammation and fibrosis by inhibiting the activation of NLR family pyrin domain containing 3 (NLRP3) inflammasome (Hou et al., 2020). Therefore, inflammation is an important therapeutic target in alleviating liver fibrosis. 6-Shogaol is reported to play an anti-inflammatory role in a variety of pathological processes, including asthma (Yocum et al., 2020), multiple sclerosis (Sapkota et al., 2019), and endometriosis (Wang et al., 2018). Based on the above, this study aimed to explore the effects of 6-Shogaol on liver fibrosis and we speculated that 6-Shogaol might prevent liver fibrosis by inhibiting the inflammatory response.

Materials and Methods

CCl4-induced liver fibrosis model

Healthy male C57BL/6 mice (20–25 g) at age of 8 weeks were obtained from Liaoning Changsheng Biotechnology Co., Ltd. (China). All mice were adaptively fed for one week, had free access to diet and water, and were kept in a house with a 12 hours dark-light cycle. All the animal experiments were conducted following the National Institutes of Health Guide for the care and use of laboratory animals and approved by the ethic committee of First Affiliated Hospital of Henan University of Chinese Medicine.

As described earlier (Ki et al., 2013), liver fibrosis was induced in a murine model by a well-established method using CCl4. Mice were randomly divided into four groups: control group, which received intraperitoneal (i.p.) injections of olive oil (10%) (2 mL/kg) three times per week for 4 weeks; CCl4 group, in which mice received CCl4 solution injections (CCl4 dissolved in 10% olive oil) at a dose of 2 mL/kg i.p. 3 times a week for 4 weeks; CCl4+6-Shogaol (5 mg/kg or 20 mg/kg) groups, in which 6-Shogaol was administered orally 30 min before each CCl4 injection. On day 28 mice were sacrificed and serum samples and liver tissues were collected.

Serum enzyme activities

Liver damage markers: aspartate aminotransferase (AST) and alanine aminotransferase (ALT) in serum were measured with commercial AST and ALT detection kits (Wanleibio, Shenyang, China) according to the manufacturer’s instructions.

Histological Examinations

After fixed by 4% paraformaldehyde, the liver tissues were rinsed under running water for 4 hours. Tissues were then dehydrated with increasing concentration of ethanol, cleared with xylene, and embedded in liquid paraffin. The paraffin-embedded tissues were sectioned at 5 μm and stained with hematoxylin and eosin to observe liver tissue structure and inflammation. Sections were stained with Sirius Red to assess collagen deposition in liver tissues. An Olympus BX53 microscope was used to obtain the images (Tokyo, Japan).

Immunofluorescence assay

Immunofluorescence staining of liver sections was conducted to evaluate alpha-smooth muscle actin (α-SMA), NLRP3, and p65 expression, and the number of CD68-positive cells in liver tissues. In short, sections were dewaxed using xylene. By using gradient ethanol series, sections were gradually hydrated. After antigen retrieval, sections were blocked with goat serum (Solarbio, Beijing, China) for 15 minutes. The slides were then incubated with primary antibody (1:100 dilution) against α-SMA, NLRP3, p65, or CD68 overnight at 4ºC. Rabbit (host) anti-CD68 was purchased from ABclonal (https://abclonal.com.cn/, Wuhan, China) and rabbit anti-α-SMA, rabbit anti-NLRP3, and rabbit anti-p65 were obtained from Affinity (http://www.affbiotech.cn/, Cincinnati, OH, USA). After washing with PBS, the sections were incubated with Cy3-labeled goat anti-rabbit IgG (1:200 dilution, Beyotime, Shanghai, China) for 1 hour at room temperature. After washing, sections were stained with 4’,6-diamidino-2-phenylindole (DAPI, Aladdin, Shanghai, China). A fluorescence microscope (Olympus BX53) was used to obtain images.

Western blot

Total protein was collected from liver tissues using commercial radioimmunoprecipitation assay (RIPA) buffer (Beyotime) supplemented with phenylmethanesulfonyl fluoride (PMSF, Beyotime). Nuclear protein extraction was performed using a nuclear protein extraction kit (Beyotime) according to the manufacturer’s instructions. A BCA protein assay kit (Beyotime) was used to determine the protein concentration. Proteins were separated on an SDS-PAGE gel and then transferred onto PVDF membranes. After blocking with TBST buffer containing 5% bovine serum albumin, the membranes were incubated with primary antibody against TGF-β (1:1000 dilution), COL1A1 (1:1000 dilution), type III collagen (COL3A1, 1:1000 dilution), fibronectin (1:1000 dilution), α-SMA (1:1000 dilution), NLRP3 (1:1000 dilution), cleaved caspase-1 (p20, 1:1000 dilution), cleaved interleukin-1beta (IL-1β) (p17, 1:1000 dilution), I-κBα (1:1000 dilution), p-I-κBα (Ser32, 1:1000 dilution), p65 (1:1000 dilution), p-p65 (Ser536, 1:1000 dilution), histone H3 (1:500 dilution) or β-actin (1:2000 dilution) overnight at 4ºC. All the primary antibodies were purchased from Affinity except for anti-histone H3 (Proteintech, Wuhan, China) and anti-β-actin (Proteintech, Wuhan, China). After washing with TBST, the membranes were blotted with goat anti-mouse secondary antibodies (1:10000 dilution; Proteintech). The protein bands were visualized using ECL chemiluminescence solution (7 Sea biotech, Shanghai, China). Histone H3 and β-actin served as internal controls.

Detection of proinflammatory cytokines

The homogenized tissues and blood samples were centrifuged to obtain tissue supernatant and serum, respectively. The levels of cytokines were measured using commercial mouse ELISA kits (LianKe Biotech, Hangzhou, China) according to the manufacturer’s protocols.

Statistical analysis

Data are presented as mean ± S.D. Comparisons between groups were performed with one-way ANOVA with Tukey’s test. GraphPad Prism software version 8.0 was used for data analysis. A p-value <0.05 was considered significant. At least 6 mice in each group were used for index detection.

Results

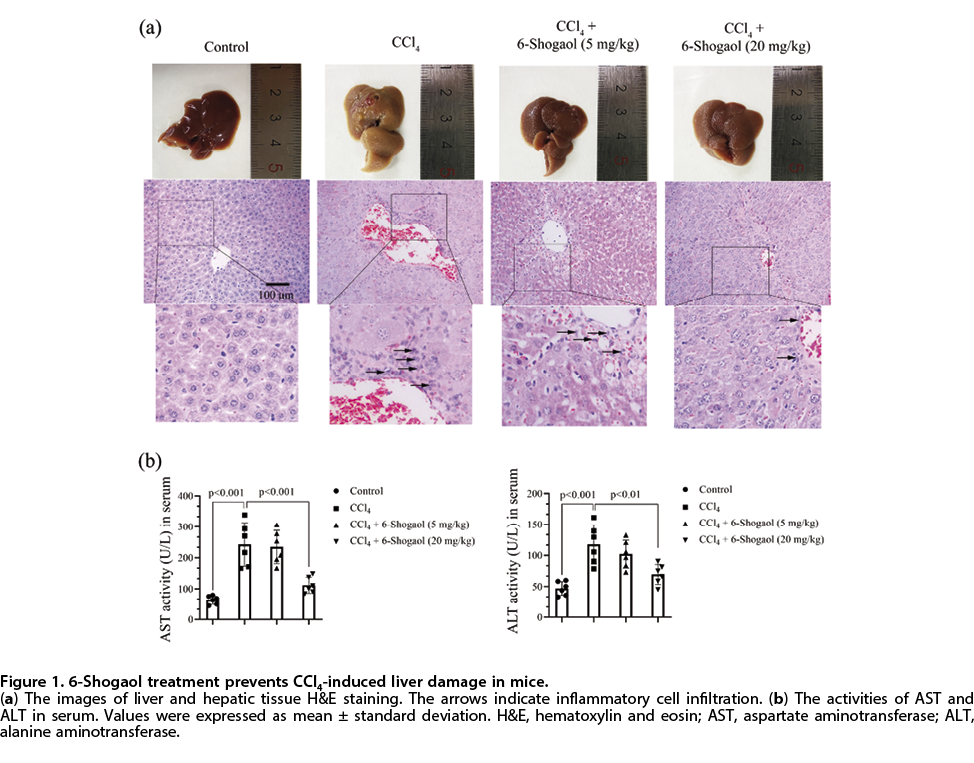

6-Shogaol administration improves CCl4-induced liver damage in mice.

The effect of 6-Shogaol on CCl4-induced liver damage in mice was first examined. After CCl4 injection, mice exhibited significant inflammatory cell infiltration and disordered liver structure (Fig. 1a). Moreover, the enzyme activities of liver damage markers ALT and AST in serum were markedly increased in this group (Fig. 1b). The data indicated that CCl4 induced severe liver injury. However, 6-Shogaol administration ameliorated liver damage induced by CCl4 in a dose-dependent manner, as indicated by decreased inflammatory cell infiltration and ALT and AST enzyme activities (Fig. 1a–b).

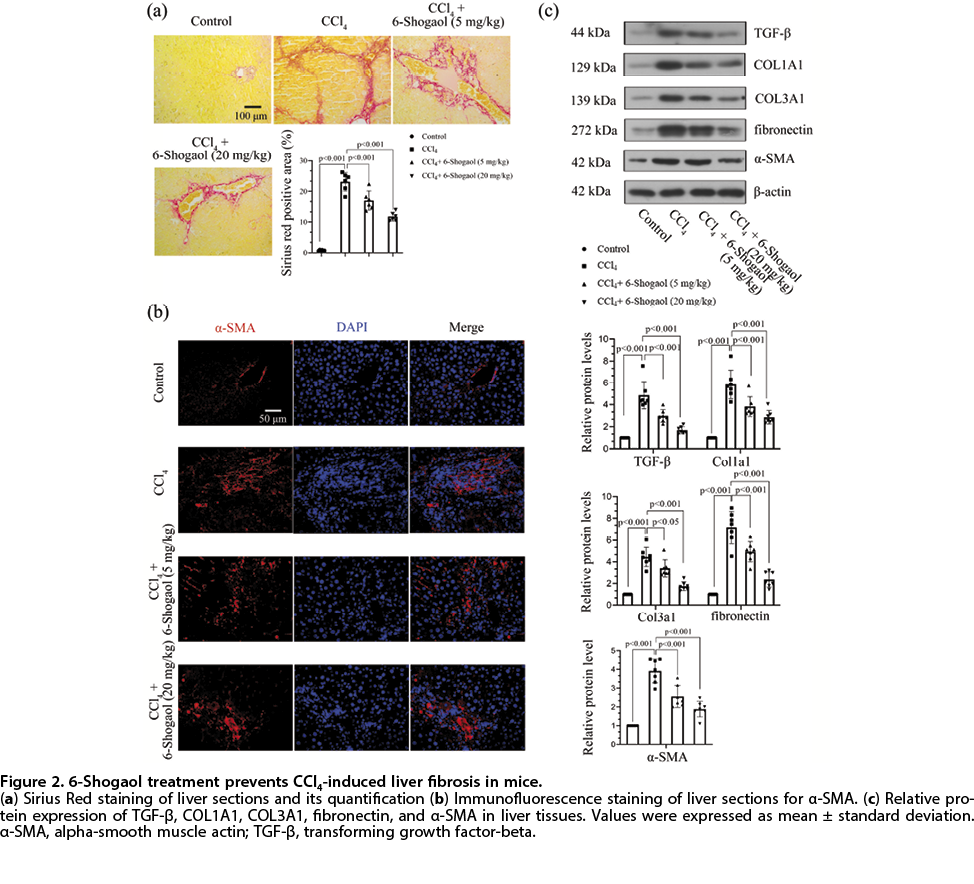

6-Shogaol administration attenuates CCl4-induced liver fibrosis in mice

Sirius Red staining of liver tissue was performed to observe the collagen disposition. The results showed that hepatic collagen disposition in mice was significantly increased by CCl4 injection, but this elevation was attenuated by 6-Shogaol dose-dependently (Fig. 2a). α-SMA, a marker of hepatic stellate cells (HSCs) activation, was reported to play a vital role in liver fibrosis progression (Puche et al., 2013). Data in Fig. 2b indicated that CCl4 injection induced α-SMA expression, which was inhibited by 6-Shogaol in a dose-dependent manner. Furthermore, the protein levels of COL1A1 (encoding collagen-I), COL3A1 (encoding collagen-III), fibronectin, and α-SMA were markedly upregulated in CCl4-treated mice but their levels dropped in 6-Shogaol (5 mg/kg and 20 mg/kg)-treated mice (Fig. 2c). Overall, these results suggested that 6-Shogaol might alleviate CCl4-induced liver fibrosis.

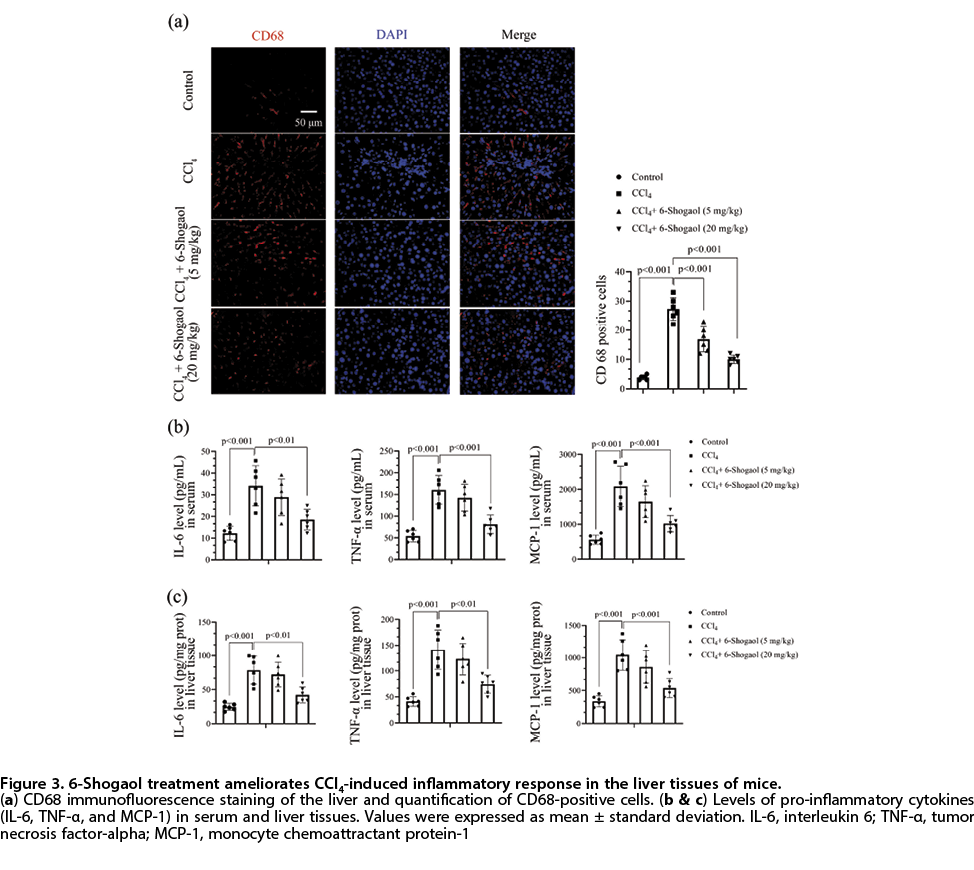

6-Shogaol administration reduces CCl4-induced inflammatory response in liver tissues of mice

Given that inflammatory response plays a key role in liver fibrosis, we explored the role of 6-Shogaol in CCl4-induced inflammatory response. As presented in Fig. 3a, a number of CD68 (macrophage marker)-positive cells was increased remarkably in CCl4-treated mice; this phenomenon was inhibited by 6-Shogaol in a dose-dependent manner. Meanwhile, the levels of pro-inflammatory factors (IL-6, TNF-α, and MCP-1) in liver tissues and serum were significantly increased by CCl4, whereas 6-Shogaol administration suppressed the production of inflammatory factors (Fig. 3b–3c). All the data indicated that 6-Shogaol relieved CCl4-induced inflammatory response in mice.

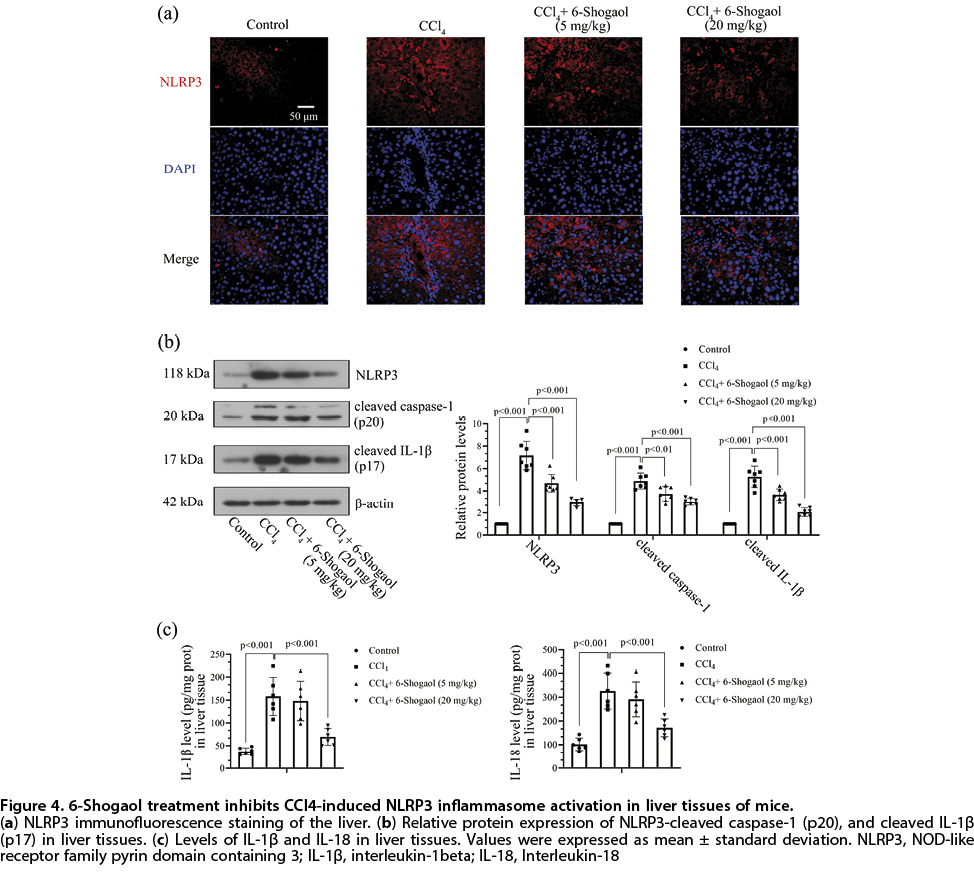

6-Shogaol administration inhibits CCl4-induced NLRP3 inflammasome activation in liver tissues of mice

The NLRP3 inflammasome regulates the cleavage of IL-1β and IL-18 precursors into mature forms to mediate the inflammatory response. Results of immunofluorescence assay showed that NLRP3 expression was significantly upregulated in CCl4-treated mice but decreased back by 6-Shogaol in a dose-dependent manner (Fig. 4a). Furthermore, changes in expression of NLRP3 inflammasome-related factors were confirmed by Western blot: NLRP3, cleaved caspase-1, and cleaved IL-1β protein levels were elevated by CCl4 and rescued by 6-Shogaol (Fig. 4b). Similarly, levels of IL-1β and IL-18 detected with ELISA showed that the induction of IL-1β and IL-18 by CCl4 was reversed by 6-Shogaol (Fig. 4c). Collectively, the results indicated that 6-Shogaol could suppress CCl4-induced NLRP3 inflammasome activation.

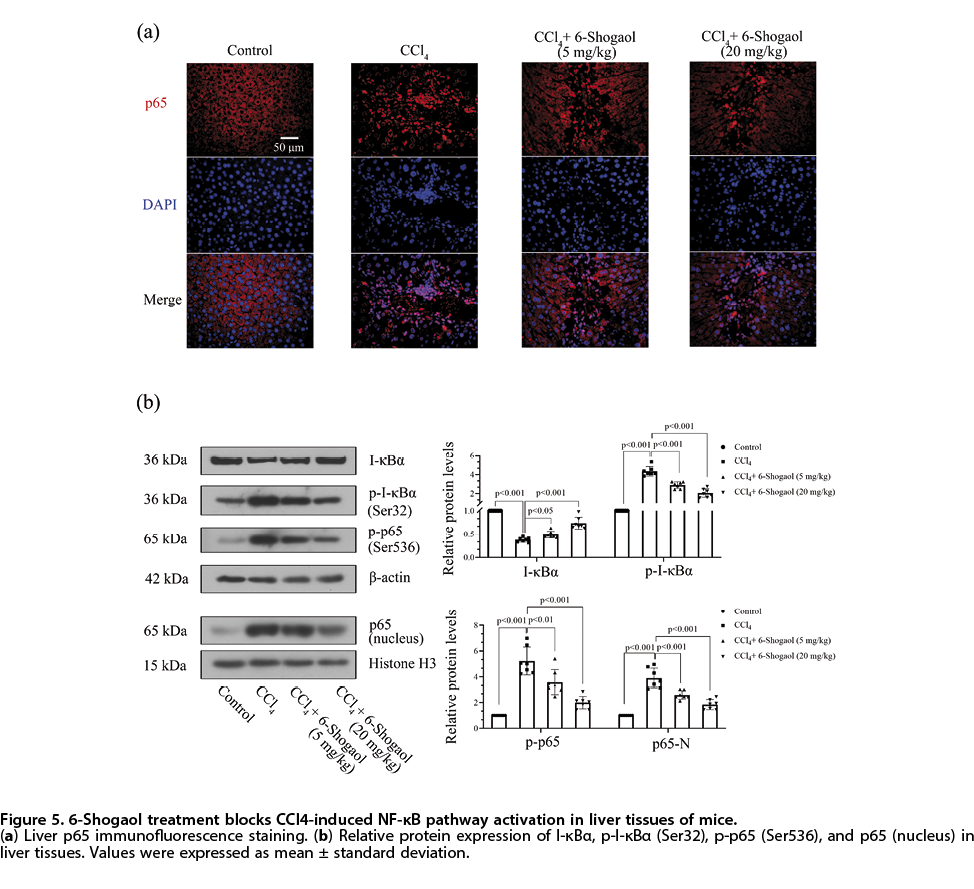

6-Shogaol administration blocks CCl4-induced NF-κB pathway activation in liver tissues of mice

The NF-κB pathway is considered a prototypical pro-inflammatory signaling pathway. We thus investigated whether 6-Shogaol regulated the NF-κB pathway. Nuclear translocation of p65 in hepatocytes was first measured in each group. Liver tissue immunofluorescent staining presented in Fig. 5a showed that CCl4 induced nuclear translocation of p65, which was inhibited by 6-Shogaol in a dose-dependent manner. Furthermore, the phosphorylation of I-κBα (Ser32) and p65 (Ser536) as well as p65 protein level in the nucleus was increased in CCl4-treated mice, whereas 6-Shogaol administration reduced this increase (Fig. 4b). Conversely, the I-κBα protein level in CCl4-treated mice was decreased but increased by 6-Shogaol (Fig. 4b). The data suggested that 6-Shogaol inhibited CCl4-induced NF-κB pathway activation in mice.

Discussion

The current study demonstrated that 6-Shogaol administration had beneficial effects in a hepatic fibrosis mouse model. 6-Shogaol administration decreased CCl4-induced inflammatory cell infiltration, the release of pro-inflammatory factors, and NLRP3 inflammasome activation, which led to reduced hepatic fibrosis. The underlying mechanisms responsible for the improvement of hepatic inflammation in CCl4-treated mice were further explored. 6-Shogaol administration was proved to inhibit CCl4-induced NF-κB pathway activation in mice. NF-κB is a vital transcriptional regulator of the inflammatory response and exerts an important role in the regulation of inflammatory signaling in the liver (Luedde & Schwabe, 2011). Altogether, the results suggest that 6-Shogaol may relieve CCl4-induced liver fibrosis in vivo.

As the main cell type in the liver, hepatocytes play an important role in the maintenance of liver homeostasis (Qian et al., 2015). Liver cell injury leads to increased inflammatory cell infiltration and the release of pro-inflammatory cytokines. Therefore, liver cell injury is the initial inducer of liver fibrosis. By evaluating the levels of liver inflammation and liver injury enzyme markers (AST and ALT), we found that 6-Shogaol alleviated CCl4-induced liver inflammation and injury. Excessive accumulation of extracellular matrix (ECM) components (collagen is the main structural component) and the activation of hepatic stellate cells (HSCs) caused by chronic injury are the main features of liver fibrosis (Puche et al., 2013; Yin et al., 2013). The gradual accumulation of the ECM leads to excessive collagen deposition (Iredale, 2007). Inflammation activates HSCs, which convert into collagen-producing myofibroblasts (Elpek, 2014). Excessive deposition of collagen and the increase of myofibroblasts lead to the occurrence of liver fibrosis and the disorder of liver physiological function. In this study, we proved that 6-Shogaol alleviated CCl4-induced collagen deposition. Furthermore, by evaluating α-SMA we found that 6-Shogaol inhibited CCl4-induced expression of this marker of HSC activation. This suggests that 6-Shogaol may suppress the activation of HSCs. In general, 6-Shogaol may protect against development of liver fibrosis.

Inflammation is considered to be the main inducer of liver fibrosis (Koyama & Brenner, 2017). Kupffer cells, located mainly in the sinusoidal cavity and accounting for about 30% of the sinusoidal cells, play a major role in liver inflammation (Bouwens et al., 1986). In response to various injury stimuli, macrophages are recruited to the injury site and secrete large amounts of pro-inflammatory factors (Cohn et al., 1989). Previous studies have shown that 6-Shogaol has anti-inflammatory effects in a variety of pathological processes. Specifically, 6-Shogaol attenuated the inflammatory response of microglia induced by lipopolysaccharide (LPS) (Han et al., 2017). Moreover, 6-Shogaol suppressed lung inflammation in asthmatic mice (Yocum et al., 2020) and reduced kidney inflammation in ischemic kidney injury (Han et al., 2019). The present study showed that 6-Shogaol inhibited the recruitment of hepatic macrophages and the release of pro-inflammatory factors in liver fibrosis mouse model. The activation of NLRP3 inflammasome has been reported to be another important factor in inducing inflammation. NLRP3 inflammasome activation mediates the activation of caspase-1, leading to the maturation of effector pro-inflammatory cytokines, such as pro-IL-1β and pro-IL-18 (Strowig et al., 2012). Previous studies found that the activation of liver caspase-1 occurred in both marrow-derived Kupfer cells (macrophages) and hepatocytes, and this activation appeared to be mediated by NLRP3 inflammasomes (Dixon et al., 2012). Additionally, activation of NLRP3 inflammasome led to severe liver inflammation and collagen deposition (Wree et al., 2014). Our results showed that 6-Shogaol inhibited NLRP3 inflammasome activation in CCl4-treated mice, as evidenced by decreased cleaved caspase-1, IL-1β, and IL-18 levels in liver tissues. These results corroborate that 6-Shogaol plays an anti-inflammatory role in liver fibrosis. It is worth noting that 6-Shogaol also has an antioxidant effect (Na et al., 2016). Oxidative stress is one of the causes of liver fibrosis (Luangmonkong et al., 2018). Therefore, 6-Shogaol may exert the protective effects of liver fibrosis in many ways, including anti-inflammatory and antioxidant.

We further explored the mechanism of 6-Shogaol anti-inflammatory effect in liver fibrosis. The NF-κB pathway is considered to be a typical positive regulatory pathway of inflammatory response, including regulating the activation of NLRP3 inflammasome (Afonina et al., 2017). The NF-κB pathway is activated in a variety of chronic liver diseases, including alcoholic liver disease, non-alcoholic fatty liver, viral hepatitis, and biliary liver disease (Boya et al., 2001; Kosters & Karpen, 2010; Mandrekar & Szabo, 2009; Videla et al., 2009). Meanwhile, the NF-κB pathway was reported to be activated in liver fibrosis as well, and NF-κB pathway inhibition attenuated the induction of liver fibrosis by CCl4 (Wei et al., 2019; Zheng et al., 2019). Previous studies reported that in an ischemia-reperfusion induced renal injury model 6-Shogaol alleviated renal tissue inflammation by inhibiting the activation of the NF-κB pathway (Han et al., 2019). Similar to previous studies, we demonstrated that 6-Shogaol inhibited the activation of the NF-κB pathway in CCl4-induced liver fibrosis. Therefore, the ameliorating effect of 6-Shogaol on CCl4-induced liver fibrosis may be achieved through regulating the NF-κB pathway. Furthermore, in pancreatic cancer, toll-like receptor 4 (TLR4) mediated the activation of the NF-κB pathway and 6-Shogaol inhibited TLR4 expression (Zhou et al., 2014). The question whether in liver fibrosis 6-Shogaol affects the NF-κB pathway directly or is mediated by other factors, such as TLR4, needs further investigation. Furthermore, it was reported that 6-Shogaol protected melanocytes against oxidative stress through activation of the Nrf2 pathway (Yang et al., 2020) and this pathway plays a protective role in liver fibrosis (Shi et al., 2020). The finding suggests that 6-Shogaol may play a protective role in liver fibrosis through multiple signaling pathways. In the present study, the 6-Shogaol/NF-κB pathway/inflammatory response axis has been identified as a possible way in which 6-Shogaol protects the liver.. However, hepatotoxic activity of CCl4 is mainly due to lipid covalent binding and peroxidation (Boll et al., 2001) and cannot fully model clinical conditions. Although covalent binding and lipid peroxidation induce liver fibrosis, the inflammation, mitochondrial dysfunction, and ROS accumulation can also induce the liver fibrosis process (Scholten et al., 2015). The present study shows a protective effect of 6-Shogaol in CCl4-induced liver fibrosis, but it does not determine whether it results from its anti-inflammatory potential or other properties.

In conclusion, the results of this study indicated that 6-Shogaol might play an anti-inflammatory role in CCl4-induced liver fibrosis by inhibiting the recruitment of macrophages, the release of pro-inflammatory factors, and the activation of NLRP3 inflammasome. Moreover, the observed inhibitory effect of 6-Shogaol on the inflammatory response could be explained by suppression of the NF-κB pathway. Our findings may provide new ideas for the clinical treatment of liver fibrosis.

Declaration

The authors declare that there is no conflict of interests.

Data availability statement

The data will be made available from the corresponding author on reasonable request.

Acknowledgements

Not applicable

Author contribution

Jian-li Qiu designed the experiments and wrote the paper. Yu-na Chai and Feng-yang Duan performed the experiments and analyzed the data. Hui-juan Zhang and Xiao-yan Han contributed reagents/materials/analysis tools. Ling-yan Chen and Fei Duan were responsible for supervision, writing-reviewing, and editing.

References

Afonina IS, Zhong Z, Karin M, Beyaert R (2017) Limiting inflammation-the negative regulation of NF-kappaB and the NLRP3 inflammasome. Nat Immunol 18: 861–869. https://doi.org/10.1038/ni.3772

Aydin MM, Akcali KC (2018) Liver fibrosis. Turk J Gastroenterol 29: 14–21. https://doi.org/10.5152/tjg.2018.17330

Bataller R, Brenner DA (2005) Liver fibrosis. J Clin Invest 115: 209–218. https://doi.org/10.1172/JCI24282

Boll M, Weber LW, Becker E, Stampfl A (2001) Mechanism of carbon tetrachloride-induced hepatotoxicity. Hepatocellular damage by reactive carbon tetrachloride metabolites. Zeitschrift fur Naturforschung. C, J Biosci 56: 649–659. https://doi.org/10.1515/znc-2001-7-826

Bouwens L, Baekeland M, De Zanger R, Wisse E (1986) Quantitation, tissue distribution and proliferation kinetics of Kupffer cells in normal rat liver. Hepatology 6: 718–722. https://doi.org/10.1002/hep.1840060430

Boya P, Larrea E, Sola I, Majano PL, Jiménez C, Civeira MP, Prieto J (2001) Nuclear factor-kappa B in the liver of patients with chronic hepatitis C: decreased RelA expression is associated with enhanced fibrosis progression. Hepatology 34: 1041–1048. https://doi.org/10.1053/jhep.2001.29002

Cohn JS, McNamara JR, Krasinski SD, Russell RM, Schaefer EJ (1989) Role of triglyceride-rich lipoproteins from the liver and intestine in the etiology of postprandial peaks in plasma triglyceride concentration. Metabolism 38: 484–490. https://doi.org/10.1016/0026-0495(89)90203-5

Dixon LJ, Berk M, Thapaliya S, Papouchado BG, Feldstein AE (2012) Caspase-1-mediated regulation of fibrogenesis in diet-induced steatohepatitis. Lab Invest 92: 713–723. https://doi.org/10.1038/labinvest.2012.45

Dugasani S, Pichika MR, Nadarajah VD, Balijepalli MK, Tandra S, Korlakunta JN (2010) Comparative antioxidant and anti-inflammatory effects of [6]-gingerol, [8]-gingerol, [10]-gingerol and [6]-shogaol. J Ethnopharmacol 127: 515–520. https://doi.org/10.1016/j.jep.2009.10.004

Elpek GO (2014) Cellular and molecular mechanisms in the pathogenesis of liver fibrosis: An update. World J Gastroenterol 20: 7260–7276. https://doi.org/10.3748/wjg.v20.i23.7260

Han Q, Yuan Q, Meng X, Huo J, Bao Y, Xie G (2017) 6-Shogaol attenuates LPS-induced inflammation in BV2 microglia cells by activating PPAR-gamma. Oncotarget 8: 42001–42006. https://doi.org/10.18632/oncotarget.16719

Han SJ, Kim M, D’Agati VD, Lee HT (2019) 6-Shogaol protects against ischemic acute kidney injury by modulating NF-kappaB and heme oxygenase-1 pathways. Am J Physiol Renal Physiol 317: F743–F756. https://doi.org/10.1152/ajprenal.00182.2019

Hiraishi K, Kurahara LH, Sumiyoshi M, Hu YP, Koga K, Onitsuka M, Kojima D, Yue L, Takedatsu H, Jian YW, Inoue R (2018) Daikenchuto (Da-Jian-Zhong-Tang) ameliorates intestinal fibrosis by activating myofibroblast transient receptor potential ankyrin 1 channel. World J Gastroenterol 24: 4036–4053. https://doi.org/10.3748/wjg.v24.i35.4036

Hou L, Yang L, Chang N, Zhao X, Zhou X, Dong C, Liu F, Yang L, Li L (2020) Macrophage Sphingosine 1-Phosphate Receptor 2 Blockade Attenuates Liver Inflammation and Fibrogenesis Triggered by NLRP3 Inflammasome. Front Immunol. 11: 1149. https://doi.org/10.3389/fimmu.2020.01149

Iredale JP (2007) Models of liver fibrosis: exploring the dynamic nature of inflammation and repair in a solid organ. J Clin Invest 117: 539–548. https://doi.org/10.1172/JCI30542

Ismail MH, Pinzani M (2009) Reversal of liver fibrosis. Saudi J Gastroenterol: Official Journal of the Saudi Gastroenterology Association 15: 72–79. https://doi.org/10.4103/1319-3767.45072

Ki SH, Yang JH, Ku SK, Kim SC, Kim YW, Cho IJ (2013) Red ginseng extract protects against carbon tetrachloride-induced liver fibrosis. J Ginseng Res 37: 45–53. https://doi.org/10.5142/jgr.2013.37.45

Kim SC, Lee JR, Park SJ (2014) Role of 6-shogaol in tert-butyl hydroperoxide-induced apoptosis of HepG2 cells. Pharmacology 93: 137–144. https://doi.org/10.1159/000360090

Kosters A, Karpen SJ (2010) The role of inflammation in cholestasis: clinical and basic aspects. Semin Liver Dis 30: 186–194. https://doi.org/10.1055/s-0030-1253227

Koyama Y, Brenner DA (2017) Liver inflammation and fibrosis. J Clin Invest 127: 55–64. https://doi.org/10.1172/JCI88881

Luangmonkong T, Suriguga S, Mutsaers HAM, Groothuis GMM, Olinga P, Boersema M (2018) Targeting oxidative stress for the treatment of liver fibrosis. Rev Physiol Biochem Pharmacol 175: 71–102. https://doi.org/10.1007/112_2018_10

Luedde T, Schwabe RF (2011) NF-kappaB in the liver – linking injury, fibrosis and hepatocellular carcinoma. Nat Rev Gastroenterol Hepatol 8: 108–118. https://doi.org/10.1038/nrgastro.2010.213

Mandrekar P, Szabo G (2009) Signalling pathways in alcohol-induced liver inflammation. J Hepatol 50: 1258–1266. https://doi.org/10.1016/j.jhep.2009.03.007

Manns MP (2013) Liver cirrhosis, transplantation and organ shortage. Deutsches Arzteblatt Int 110: 83–84. https://doi.org/10.3238/arztebl.2013.0083

Na JY, Song K, Lee JW, Kim S, Kwon J (2016) Pretreatment of 6-shogaol attenuates oxidative stress and inflammation in middle cerebral artery occlusion-induced mice. Eur J Pharmacol 788: 241–247. https://doi.org/10.1016/j.ejphar.2016.06.044

Puche JE, Saiman Y, Friedman SL (2013) Hepatic stellate cells and liver fibrosis. Compr Physiol 3: 1473–1492. https://doi.org/10.1002/cphy.c120035

Qian H, Deng X, Huang ZW, Wei J, Ding CH, Feng RX, Zeng X, Chen YX, Ding J, Qiu L, Hu ZL, Zhang X, Wang HY, Zhang JP, Xie WF (2015) An HNF1alpha-regulated feedback circuit modulates hepatic fibrogenesis via the crosstalk between hepatocytes and hepatic stellate cells. Cell Res 25: 930–945. https://doi.org/10.1038/cr.2015.84

Sanchez-Valle V, Chavez-Tapia NC, Uribe M, Mendez-Sanchez N (2012) Role of oxidative stress and molecular changes in liver fibrosis: a review. Curr Med Chem 19: 4850–4860. https://doi.org/10.2174/092986712803341520

Sapkota A, Park SJ, Choi JW (2019) Neuroprotective effects of 6-shogaol and its metabolite, 6-paradol, in a mouse model of multiple sclerosis. Biomolecules Therapeutics 27: 152–159. https://doi.org/10.4062/biomolther.2018.089

Scholten D, Trebicka J, Liedtke C, Weiskirchen R (2015) The carbon tetrachloride model in mice. Lab Animals 49: 4–11. https://doi.org/10.1177/0023677215571192

Semwal RB, Semwal DK, Combrinck S, Viljoen AM (2015) Gingerols and shogaols: Important nutraceutical principles from ginger. Phytochemistry 117: 554–568. https://doi.org/10.1016/j.phytochem.2015.07.012

Shi YS, Li XX, Li HT, Zhang Y (2020) Pelargonidin ameliorates CCl4-induced liver fibrosis by suppressing the ROS-NLRP3-IL-1beta axis via activating the Nrf2 pathway. Food Funct 11: 5156–5165. https://doi.org/10.1039/d0fo00660b

Strowig T, Henao-Mejia J, Elinav E, Flavell R (2012) Inflammasomes in health and disease. Nature 481: 278–286. https://doi.org/10.1038/nature10759

Videla LA, Tapia G, Rodrigo R, Pettinelli P, Haim D, Santibañez C, Araya AV, Smok G, Csendes A, Gutierrez L, Rojas J, Castillo J, Korn O, Maluenda F, Díaz JC, Rencoret G, Poniachik J (2009) Liver NF-kappaB and AP-1 DNA binding in obese patients. Obesity (Silver Spring) 17: 973–979. https://doi.org/10.1038/oby.2008.601

Wang D, Jiang Y, Yang X, Wei Q, Wang H (2018) 6-Shogaol reduces progression of experimental endometriosis in vivo and in vitro via regulation of VGEF and inhibition of COX-2 and PGE2-mediated inflammatory responses. Korean J Physiol Pharmacol 22: 627–636. https://doi.org/10.4196/kjpp.2018.22.6.627

Wei S, Zhou H, Wang Q, Zhou S, Li C, Liu R, Qiu J, Shi C, Lu L (2019) RIP3 deficiency alleviates liver fibrosis by inhibiting ROCK1-TLR4-NF-kappaB pathway in macrophages. FASEB J 33: 11180–11193. https://doi.org/10.1096/fj.201900752R

Wree A, Eguchi A, McGeough MD, Pena CA, Johnson CD, Canbay A, Hoffman HM, Feldstein AE (2014) NLRP3 inflammasome activation results in hepatocyte pyroptosis, liver inflammation, and fibrosis in mice. Hepatology 59: 898–910. https://doi.org/10.1002/hep.26592

Xu F, Liu C, Zhou D, Zhang L (2016) TGF-beta/SMAD pathway and its regulation in hepatic fibrosis. J Histochem Cytochem 64: 157–167. https://doi.org/10.1369/0022155415627681

Yang L, Yang F, Teng L, Katayama I (2020) 6-Shogaol protects human melanocytes against oxidative stress through activation of the Nrf2-antioxidant response element signaling pathway. Int J Mol Sci 21: 3537. https://doi.org/10.3390/ijms21103537

Yin C, Evason KJ, Asahina K, Stainier DY (2013) Hepatic stellate cells in liver development, regeneration, and cancer. J Clin Invest 123: 1902–1910. https://doi.org/10.1172/JCI66369

Yocum GT, Hwang JJ, Mikami M, Danielsson J, Kuforiji AS, Emala CW (2020) Ginger and its bioactive component 6-shogaol mitigate lung inflammation in a murine asthma model. Am J Physiol Lung Cell Mol Physiol 318: L296–L303. https://doi.org/10.1152/ajplung.00249.2019

Yoo W, Lee J, Noh KH, Lee S, Jung D, Kabir MH, Park D, Lee C, Kwon KS, Kim JS, Kim S (2019) Progranulin attenuates liver fibrosis by downregulating the inflammatory response. Cell Death Dis 10: 758. https://doi.org/10.1038/s41419-019-1994-2

Zhang H, Wang Q, Sun C, Zhu Y, Yang Q, Wei Q, Chen J, Deng W, Adu-Frimpong M, Yu J, Xu X (2019) Enhanced oral bioavailability, anti-tumor activity and hepatoprotective effect of 6-shogaol loaded in a type of novel micelles of polyethylene glycol and linoleic acid conjugate. Pharmaceutics 11: 107. https://doi.org/10.3390/pharmaceutics11030107

Zheng H, Wang X, Zhang Y, Chen L, Hua L, Xu W (2019) Pien-Tze-Huang ameliorates hepatic fibrosis via suppressing NF-kappaB pathway and promoting HSC apoptosis. J Ethnopharmacol 244: 111856. https://doi.org/10.1016/j.jep.2019.111856

Zhou L, Qi L, Jiang L, Zhou P, Ma J, Xu X, Li P (2014) Antitumor activity of gemcitabine can be potentiated in pancreatic cancer through modulation of TLR4/NF-kappaB signaling by 6-shogaol. AAPS J 16: 246–257. https://doi.org/10.1208/s12248-013-9558-3

Zhuang X, Deng ZB, Mu J, Zhang L, Yan J, Miller D, Feng W, McClain CJ, Zhang HG (2015) Ginger-derived nanoparticles protect against alcohol-induced liver damage. J Extracell Vesicles 4: 28713. https://doi.org/10.3402/jev.v4.28713
