Regular paper

Anticancer effects of zapotin flavone in human gastric carcinoma cells are mediated via targeting m-TOR/PI3K/AKT signalling pathway

Yunlan Chen1#, Jiangqiong Han2#, Guoqin Wang3, Bin Qian4 and Hua Zhao5✉

1Department of Cadre Medical, the Third Affiliated Hospital of Kunming Medical University and Yunnan Cancer Hospital, Kunming, Yunnan, China; 2Department of Integrated Chinese and Western Medicine, the Third Affiliated Hospital of Kunming Medical University and Yunnan Cancer Hospital, Kunming, Yunnan, China; 3Biological Immunotherapy Center, the Third Affiliated Hospital of Kunming Medical University and Yunnan Cancer Hospital, Kunming, Yunnan, China; 4Department of Pharmacy, the First Affiliated Hospital of Kunming Medical University, Kunming, Yunnan, China; 5Department of Pharmacy, Shaanxi Provincial Cancer Hospital, Xi’an, Shaanxi, China

The current study aims to investigate the anticancer effects of zapotin flavone in human gastric carcinoma cells. MTT assay was performed to determine the cytotoxicity effects of zapotin against the gastric cancer cells (SNU-1) and normal gastric cells (GES-1). SNU-1 cell morphology was analyzed through phase-contrast microscopy. Apoptosis was identified through DAPI staining assay and quantified through annexin V/propidium iodide (PI) staining. The effects on cell migration and invasion were carried out through transwell assay. Apoptosis and m-TOR/PI3K/AKT signalling pathway related proteins were analysed through western blotting. Proliferation rate of gastric cancer SNU-1 cell line declined with enhanced zapotin concentrations in comparison to normal GES-1 cells. Substantial morphological changes after zapotin exposure, including nuclear condensation and membrane rupture was observed. Further, increasing number of apoptotic cells, suppression of both cell migration and invasion was observed with increased zapotin concentrations. Finally, western blotting indicated significant blocking of m-TOR/PI3K/AKT signalling pathway. We conclude that zapotin can act as a potential drug against the gastric cancer.

Key words: gastric cancer, flavone, zapotin, caspase, apoptosis

Received: 10 December, 2021; revised: 05 March, 2022; accepted:
05 March, 2022; available on-line: 09 June, 2022

✉e-mail: huazhao772@gmail.com

#These authors contributed equally to this work.

Abbreviations: Bcl-2, B-cell lymphoma 2; DAPI, 4’,6-diamidino-2-phenylindole; mTOR, mammalian target of rapamycin; NFR1, tumor necrosis factor 1; PI3K, phosphoinositide 3-kinase; PI, propidium iodide; TNF-α, tumor necrosis factor

INTRODUCTION

Flavonoids are polyphenolic compounds frequently found in a common human diet. Flavonoids are present at higher concentration in plants, including vegetables and fruits (Scalbert & Williamson, 2000). Polyphenolic phytochemicals (flavonoids) are presently of great clinical interest due to their immense pharmacological activities. Flavonoids act as antioxidants, have cardioprotective, anti-carcinogenic, and anti-inflammatory effects (Le Marchand, 2002; Tungmunnithum et al., 2018). Recent investigations of flavonoids have reported that they react with a wide range of signalling enzymes and alter their expression, like transcription factors and cellular proteins (Mansuri et al., 2014; Selvakumar et al., 2020). Apoptosis is a highly preserved process in multicellular organisms for maintaining homeostasis and orderly development of tissues. Apoptosis is a result of various extrinsic signals stimulated by Fas, radiation, TNF-α (tumor necrosis factor), and growth factor withdrawal (Elmore, 2007). Intrinsic factors that induced activation of apoptosis includes oxidative stress and p53 activation (Reed & Green, 2002; Ashkenazi & Dixit, 1998). Flavonoids have also been reported with apoptosis inducing potential against different human cancers like gastric cancer, ovarian cancer, cervical cancer, and others (Jaudan et al., 2018; Sak, 2014). Gastric cancer is a life-threatening distortion associated with the digestive system and accounts for high mortality rate across the globe. Gastric cancer incidence shows geographical variation, and in underdeveloped and developing countries higher number of gastric cancer cases have been reported (Crew & Neugut, 2006; Rawla & Barsouk, 2019). Dysregulation in the expression levels of telomerase and telomere length are associated with the progression of gastric cancer. Telomerase expression is tightly regulated in normal cells and during carcinogenesis telomerase is reactivated, which in turn maintains telomere length in rapidly proliferating cancer cells (Leao et al., 2018; Hannen & Bartsch, 2018). Gastric cancer is a lethal malignancy, and its lethality enhances due to lack of efficient treatment. Surgery is the major available strategy for the treatment of gastric cancer (Zhang et al., 2021). Chemotherapeutics commonly used against human cancers have not proved fruitful against gastric cancer (Song et al., 2017; Li et al., 2020). Thus, there is an immediate need to look for novel drugs that can prove effective in gastric cancer management. Zapotin – a flavone – is a major constituent of the tropical fruit zapote blanco (Casimiroa edulis). This fruit is consumed throughout the world, including Asia and Central America. Zapotin has been reported to activate apoptosis and differentiation potential against HL-60 leukemia cells (Maiti et al., 2007). Therefore, the current study aims to investigate the possible anticancer role of zapotin flavone in human gastric carcinoma cells.

MATERIAL AND METHODS

Evaluation of cell proliferation rate

The proliferation rate of human gastric SNU-1 cancer cells and normal gastric GES-1 cells was evaluated through MTT assay. Briefly, both cell lines were cultured in 96-well plates at a concentration of 6×103 cells/well. Cells were cultured 24 h prior to zapotin treatment at varying concentrations (0, 10, 20, 50, and 100 μM). Afterwards, both treated cells lines were incubated for 24 h at 37°C and 5% CO2. Thereafter, media was decanted, followed by addition of 200 μl MTT stock solution (5 mg/ml) to each well. Then the cells were left untouched for about 3 h followed by dissolving of formazan crystals with DMSO. Finally, absorbance was measured at 570 nm and 650nm using a microplate reader (Thermo Fisher Scientific Inc., Waltham, USA).

Morphological analysis through phase contrast microscopy

Cellular morphology was investigated via phase contrast microscopy. Gastric SNU-1 cancer cells were placed onto 6-well plates at a density of 3×104 cells/well. Thereafter, cancer cells were exposed to different zapotin concentrations (0, 20, 50 and 100 μM) for 24h followed by phosphate buffered saline (PBS) washing. All the cell media was decanted, and cell morphology was observed under inverted microscope (Leica DMI 300B, Germany).

Evaluation of apoptosis with DAPI and annexin V/PI staining

SNU-1 cells were plated in 96-well plates for determination of apoptotic cell morphology at a density of 3×105 cells/well. Seeded SNU-1 cells were exposed to zapotin (0, 20, 50, and 100 μM) and incubated for 24 h. Further, DAPI solution was added to the zapotin-treated cells, followed by washing with PBS. Thereafter, DAPI-stained cells were fixed with 10% formaldehyde. Apoptosis analysis was finally carried out under fluorescence microscope. Similar procedure was followed for annexin V/PI staining assay except staining with DAPI was replaced with annexin V/PI dual staining and analysis was performed through flow cytometry.

Observations of cell migration and cell invasion

SNU-1 cells were treated with zapotin at varying concentrations (0, 20, 50, and 100 μM). Treated cells were transferred to upper chambers of transwell chambers containing RMPI-1640 medium at a concentration of 1×103 cells. Lower chambers were filled with DMEM medium (600 μl) containing 10% FBS (Corning Incorporated, Corning, NY, USA). Transwells were then incubated for 12 h followed by fixation with methanol at 4oC for 10 min. Removal of un-migrated cells was performed using a cotton swab, while migrated cells were stained for 5min with crystal violet at room temperature. Finally, various sections were pictured with a light microscope under 200× magnification (TS100; Nikon Corporation, Tokyo, Japan). Invasive ability of SNU-1 cells was also observed through transwell chambers except that the transwell chambers were coated with Matrigel.

Western blotting analysis

SNU-1 gastric cancer cells were cultured and harvested at 70% of growth confluence. Cultured cells were subjected to zapotin exposure at changing concentrations (0, 20, 50, and 100 μM). Zapotin-treated cells were lysed with RIPA lysis buffer and protein content within each lysate was quantified by BCA assay. From each lysate about 40 μg of protein was loaded over SDS-PAGE and then electrophoretically transferred to nitrocellulose membranes. These membranes were blocked using TBS containing TBST (tween) with 5% non-fat dry milk for 12 h at 4°C. Thereafter, the membranes were incubated with primary antibodies against caspase-3, caspase-8, caspase-9, BAX, BCL-2, PI3K, AKT, and m-TOR overnight. Next to primary antibodies treatment the membranes were subjected to secondary antibodies treatment for 2 h at 25°C. Lastly, proteins were washed with TBST, and protein signals were recorded with enhanced chemiluminescence assay kit (Thermo Scientific, Rockford, USA).

Statistics

All experiments were performed in triplicate and the standards presented were means of three repeats ± S.D.s. Statistical analysis was carried with Student’s t-test using GraphPad prism 7 software. One-way analysis of variance (ANOVA) was used to compare multiple groups. P<0.05 was considered as statistically significant.

RESULTS

Zapotin induced cytotoxicity in human gastric SNU-1 cancer cells

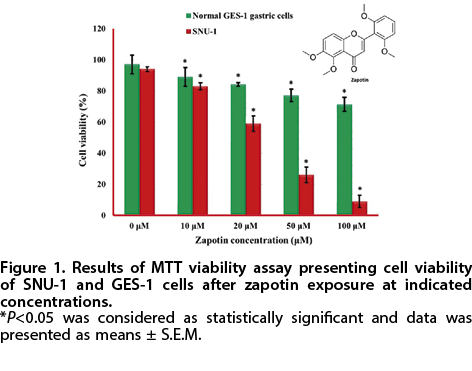

Cell proliferation rate of cells (SNU-1 and GES-1) was measured by MTT viability assay. The results revealed that zapotin molecule is a potential dose-dependent proliferation inhibitor against SNU-1 cells, but not in GES-1 cells. The percent viability of SNU-1 cells at 0, 10, 20, 50, and 100 μM was nearly 90%, 80%, 60%, 25%, and 10%, respectively (Fig. 1), thus indicating dose-dependent suppression of cell viability. However, the normal cells (GES-1) were less sensitive to zapotin treatment.

The effect of proliferation suppression of zapotin was very low against normal GES-1 cells.

Zapotin treatment modified cellular morphology of SNU-1 cells

The morphology of SNU-1 gastric cancer cells was investigated through phase contrast microscopy after the treatment with zapotin (0, 20, 50, and 100 μM). Control cells were observed with normal morphology with regular nucleus, membranes, and organelles. Drug-exposed cells showed completely changed morphology with irregular organelles, condensed nucleus, and ruptured membranes (Fig. 2). The effects of changing morphology of zapotin increased with enhanced concentrations. These modifications also indicated that the anti-proliferative effects of the molecule are due to its apoptosis inducing potential.

Apoptosis analysis of zapotin-treated SNU-1 cells

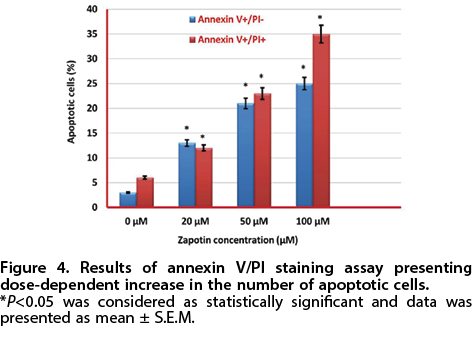

Apoptosis in zapotin-treated SNU-1 gastric cancer cells was analysed by DAPI staining and annexin V/PI staining. The results indicated significant dose-dependent increase in the number of apoptotic cells. DAPI staining indicated substantial morphological variations including randomly distributed chromatin along with dislocated, fragmented, condensed, and shrunken nuclei with better fluorescence (Fig. 3). In comparison to the controls no such morphological modifications were observed. Annexin V/PI staining results specified remarkable increase in apoptotic cell percentage with increased zapotin concentrations. The percentage of annexin V+/PI apoptotic cells was nearly 3%, 13%, 21%, and 25% at 0, 20, 50, and 100 μM, respectively. The annexin V+/PI+ apoptotic cell percentage was 6%, 12%, 23%, and 35% with the same drug concentrations as above (Fig. 4). Further, western blotting analysis indicated a caspase-dependent apoptosis inducing potential of zapotin. The expressions of caspase-9, caspase-8, caspase-3, and BAX proteins increased with increasing zapotin concentrations. The expression level of BCL-2 proteins reduced with enhanced zapotin concentrations (Fig. 5). Thus, these results predicted that zapotin induced caspase-dependent apoptosis in SNU-1 cells.

Zapotin reduced cell migration and invasion ability of SNU-1 cells

Transwell assay was performed to monitor cell migration ability of SNU-1 gastric cancer cells after zapotin exposure at varying concentrations (0, 20, 50, and 100 μM). The results indicated that zapotin reduced cell migration ability of SNU-1 cells dose-dependently (Fig. 6). Transwell chambers assay revealed dose-dependent reduction in the number of invasive cells (Fig. 7). Thus, both cell migration and invasion of SNU-1 cells reduced dose-dependently after zapotin exposure.

Zapotin targeted m-TOR/PI3K/AKT signalling pathway in SNU-1 cells

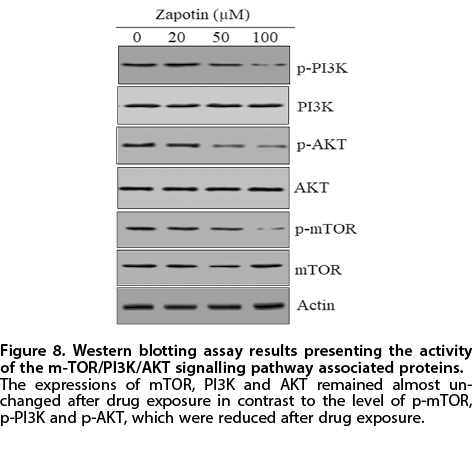

The effect of zapotin treatment on m-TOR/PI3K/AKT signalling pathway in SNU-1 cells was analysed through western blotting analysis. The results showed that the expressions of m-TOR/PI3K/AKT signalling pathway related proteins altered significantly with increasing zapotin concentrations. The expressions of mTOR, PI3K, and AKT remained almost unchanged in contrast to the p-mTOR, p-PI3K, and p-AKT, which were reduced after drug exposure (Fig. 8).

DISCUSSION

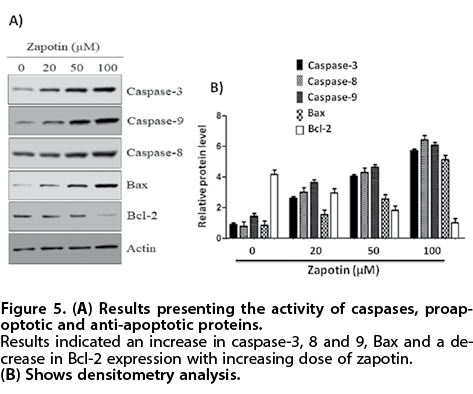

Cysteine-aspartic proteases (Caspases) belong to a family of cysteine proteases and play a pivotal role in bringing about necrosis, apoptosis, and inflammation (Fink & Cookson, 2005). Either death receptor mediation (extrinsic) or mitochondrial mediation (intrinsic) activates caspases in apoptotic pathways. The extrinsic pathway gets activated through death receptors present on plasma membrane like Fas/CD95 (Fas receptor/ cluster of differentiation 95) and TNFR1 (tumor necrosis factor 1). The intrinsic pathway is categorised by mitochondrial permeabilization and the release of cytochrome c into the cytoplasm. The release of cytochrome c results in the activation of caspase-9 and formation of apoptosome. Thus, caspase activation plays a vital role in bringing about apoptosis in cancer cells.

Flavonoids have been shown to induce anticancer effects in a wide range of human cancers. Galangin, a flavonoid molecule, has been reported to show anticancer effects in human kidney cancer cells and these effects are mediated via mitochondrial mediated apoptosis, suppression of cell migration and invasion, and targeting PI3K/AKT/m-TOR signalling pathway (Zhu et al., 2018). Silibinin, another flavonoid, inhibits the proliferation of BGC-823 (human gastric cancer cells) mediated through induction of mitochondrial mediated apoptosis (Li et al., 2017). It has been observed that zapotin and extracts or fractions containing zapotin possess different biological activities like anticancer, antibacterial, antioxidant, antifungal, antiviral, antianxiety, anticonvulsant, and antidepressant-like effects (Mata-Greenwood et al., 2001; Cuendet et al., 2008; Toton et al., 2012; Strawa et al., 2021). In the current study the anticancer effects of zapotin flavone were investigated in human gastric carcinoma cells mediated via caspase activation, cell apoptosis, suppression of cell migration and cell invasion, and targeting m-TOR/PI3K/AKT signalling pathway. MTT assay was performed to evaluate the effects of zapotin molecule on cell viability of gastric cancer SNU-1 cells and normal GES-1 cells and the results indicated that this molecule reduced the cancer cell viability (SNU-1) with a dose-dependent manner. Phase-contrast microscopy was carried out to analyse morphological changes induced by zapotin in SNU-1 cells, which showed significant variations in the morphology indicating that the anti-proliferative effects of zapotin might be due to its apoptosis-inducing potential. This was not the case in GES-1 normal cells. Therefore, DAPI and annexin V/PI staining assays were performed to identify and quantify apoptosis. The results indicated remarkable morphological alterations representing apoptosis and it was found that the number of apoptotic cells was enhanced with increasing drug concentration. Further, western blotting analysis indicated that zapotin induced caspase-dependent apoptosis in SNU-1 cells. Next, cell migration and invasion ability of gastric cancer SNU-1 cells was investigated by transwell assay showing zapotin dose-dependent suppression of both migration and invasion. Finally, western blotting assay was carried out to determine the effects of zapotin on m-TOR/PI3K/AKT signalling pathway. The results depicted no change in mTOR, PI3K, and AKT activity but the activity of phosphorylated mTOR, PI3K, and AKT was observed to be declining with enhanced zapotin concentrations.

CONCLUSION

All the above results indicate that zapotin flavone induces anticancer effects in human gastric carcinoma cells. The anticancer effects were associated with caspase activation, cell apoptosis, suppression of cell migration and invasion, and targeting m-TOR/PI3K/AKT signalling pathway.

Consent for publication

All the authors agree for publication.

Competing interests

The authors declare that they have no competing interests.

Authors’ contributions

YC and JH; designed and performed the experiments; GW and BQ analyzed and interpreted the results of the experiments; and HZ wrote and revised the manuscript.

Acknowledgements

Not applicable

REFERENCES

Ashkenazi A, Dixit VM (1998) Death receptors: signaling and modulation. Science 281: 1305–1308. https://doi.org/10.1126/science.281.5381.1305

Crew KD, Neugut AI (2006) Epidemiology of gastric cancer. World J Gastroenterol 12: 354–362. https://doi.org/10.3748/wjg.v12.i3.354

Cuendet M, Oteham CP, Maiti A, Craig BA, Cushman M, Moon RC, Pezzuto JM (2008) Zapotin prevents mouse skin tumorigenesis during the stages of initiation and promotion. Anticancer Res 28: 3705–3709

Elmore S (2007) Apoptosis: a review of programmed cell death. Toxicol Pathol 35: 495–516. https://doi.org/10.1080/01926230701320337

Fink SL, Cookson BT (2005) Apoptosis, pyroptosis, and necrosis: mechanistic description of dead and dying eukaryotic cells. Infect Immun 73: 1907-–1916. https://doi.org/10.1128/IAI.73.4.1907-1916.2005

Hannen R, Bartsch JW (2018) Essential roles of telomerase reverse transcriptase hTERT in cancer stemness and metastasis. FEBS Letters 592: 2023–2031. https://doi.org/10.1002/1873-3468.13084

Jaudan A, Sharma S, Malek SNA, Dixit A (2018) Induction of apoptosis by pinostrobin in human cervical cancer cells: Possible mechanism of action. PloS One 13: e0191523. https://doi.org/10.1371/journal.pone.0191523

Le Marchand L (2002) Cancer preventive effects of flavonoids--a review. Biomed Pharmacother 56: 296–301. https://doi.org/10.1016/s0753-3322(02)00186-5

Leao R, Apolonio JD, Lee D, Figueiredo A, Tabori U, Castelo-Branco P (2018). Mechanisms of human telomerase reverse transcriptase (hTERT) regulation: clinical impacts in cancer. J Biomed Sci 25: 22. https://doi.org/10.1186/s12929-018-0422-8

Li R, Yu J, Wang C (2017) Silibinin promotes the apoptosis of gastric cancer BGC823 cells through caspase pathway. J BUON 22: 1148–1153

Li Z, Gao X, Peng X, May Chen MJ, Li Z, Wei B, Wen X, Wei B, Dong Y, Bu Z, Wu A, Wu Q, Tang L, Li Z, Liu Y, Zhang L, Jia S, Zhang L, Shan F, Zhang J, Wu X, Ji X, Ji K, Wu X, Shi J, Xing X, Wu J, Lv G, Shen L, Ji X, Liang H, Ji J (2020) Multi-omics characterization of molecular features of gastric cancer correlated with response to neoadjuvant chemotherapy. Sci Adv 6: eaay4211. https://doi.org/10.1126/sciadv.aay4211

Maiti A, Cuendet M, Kondratyuk T, Croy VL, Pezzuto JM, Cushman M (2007) Synthesis and cancer chemopreventive activity of zapotin, a natural product from Casimiroa edulis. J Med Chem 50: 350–355. https://doi.org/10.1021/jm060915+

Mansuri ML, Parihar P, Solanki I, Parihar MS (2014) Flavonoids in modulation of cell survival signalling pathways. Genes Nutr 9: 400. https://doi.org/10.1007/s12263-014-0400-z

Mata-Greenwood E, Ito A, Westenburg H, Cui B, Mehta RG, Kinghorn AD, Pezzuto JM (2001) Discovery of novel inducers of cellular differentiation using HL-60 promyelocytic cells. Anticancer Res 21: 1763–1770

Rawla P, Barsouk A (2019) Epidemiology of gastric cancer: global trends, risk factors and prevention. Prz Gastroenterol 14: 26–38. https://doi.org/10.5114/pg.2018.80001

Reed JC, Green DR (2002) Remodeling for demolition: changes in mitochondrial ultrastructure during apoptosis. Mol Cell 9: 1–3. https://doi.org/10.1016/s1097-2765(02)00437-9

Sak K (2014) Cytotoxicity of dietary flavonoids on different human cancer types. Pharmacogn Rev 8: 122–146. https://doi.org/10.4103/0973-7847.134247

Scalbert A, Williamson G (2000) Dietary intake and bioavailability of polyphenols. J Nutr 130: 2073S–2085S. https://doi.org/10.1093/jn/130.8.2073S

Selvakumar P, Badgeley A, Murphy P, Anwar H, Sharma U, Lawrence K, Lakshmikuttyamma A (2020) Flavonoids and other polyphenols act as epigenetic modifiers in breast cancer. Nutrients 12: 761. https://doi.org/10.3390/nu12030761

Song Z, Wu Y, Yang J, Yang D, Fang X (2017) Progress in the treatment of advanced gastric cancer. Tumour Biol 39: 1010428317714626. https://doi.org/10.1177/1010428317714626

Strawa JW, Jakimiuk K, Tomczyk M (2021) Zapotin, a polymethoxyflavone, with potential therapeutic attributes. Int J Mol Sci 22: 13227. https://doi.org/10.3390/ijms222413227

Toton E, Lisiak N, Rubis B, Budzianowski J, Gruber P, Hofmann J, Rybczynska M (2012) The tetramethoxyflavone zapotin selectively activates protein kinase C epsilon, leading to its down-modulation accompanied by Bcl-2, c-Jun and c-Fos decrease. Eur J Pharmacol 682: 21–28. https://doi.org/10.1016/j.ejphar.2012.02.020

Tungmunnithum D, Thongboonyou A, Pholboon A, Yangsabai A (2018) Flavonoids and other phenolic compounds from medicinal plants for pharmaceutical and medical aspects: an overview. Medicines 5: 93. https://doi.org/10.3390/medicines5030093

Zhang H, Li X, Wu J, Zhang J, Huang H, Li Y, Li M, Wang S, Xia J, Qi L, Chen T, Ao L (2021) A qualitative transcriptional signature of recurrence risk for stages II-III gastric cancer patients after surgical resection. J Gastroenterol Hepatol 36: 2501–2512. https://doi.org/10.1111/jgh.15439

Zhu Y, Rao Q, Zhang X, Zhou X (2018) Galangin induced antitumor effects in human kidney tumor cells mediated via mitochondrial mediated apoptosis, inhibition of cell migration and invasion, and targeting PI3K/ AKT/mTOR signalling pathway. J BUO 23: 795–799
