Regular paper

Investigation of VEGF (rs 699947) polymorphism
in the progression of Rheumatoid Arthritis (RA) and
in-silico nanoparticle drug delivery of potential
phytochemicals to cure RA

Nageen Hussain1, Mohsin Mumtaz2, Muhammad Adil1, Abad Ali Nadeem3, Abid Sarwar3, Tariq Aziz4✉, Metab Alharbi5, Abdulrahman Alsahammari5, Abdullah F Alasmari5 and
Mousa Essa Alharbi6

1Institute of Microbiology and Molecular Genetics, University of the Punjab Lahore-54590, Pakistan; 2School of Women’s and Children’s Health, Faculty of Medicine and Health, the University of New South Wales, Australia; 3Food and Biotechnology Research Center PCSIR Laboratories, Lahore, Pakistan; 4Department of Agriculture, University of Ioannina, 47100 Arta, Greece; 5Department of Pharmacology and Toxicology, College of Pharmacy, King Saud University, P.O. Box 2455, Riyadh 11451, Saudi Arabia; 6Ministry of Health King of Saudi Arabia Riyadh, King of Saudi Arabia

Mutation in the VEGF gene disturbs the production of chondrocytes and angiogenesis which are essential for cartilage health. Cytokines and chemokines produced by auto-activation of B-cells degrade cartilage. Bruton’s Tyrosine Kinase (BTK) plays a crucial role in the activation of these B-cells. VEGF has a central part in angiogenesis, in the recruitment of endothelial cells, and is involved in mechanisms that result in tumour formation. The objective of this research is to investigate the potential role of VEGF polymorphism in the development of Rheumatoid Arthritis (RA) and the screening of potential natural, synthetic BTK inhibitor compounds as possible in-silico chemotherapeutic agents to control auto-activation of B-cells and cartilage degrading cytokines. In this study, it had been shown that allele A frequency was significantly higher than that of allele C in RA-positive patients as compared to controls. Hence it depicts that allele A of VEGF (rs699947) can increase the risk of RA while allele C has a protective role. The phytochemicals which showed maximum binding affinity at the inhibitory site of BTK include beta boswellic acid, tanshinone, and baicalin. These phytochemicals as BTK inhibitor give insights to use them as anti-arthritic compounds by nanoparticle drug delivery mechanism.

Keywords: angiogenesis, phytochemicals, Bruton’s tyrosine kinase, Rheumatoid Arthritis, VEGF gene

Received: 06 February, 2023; revised: 18 April, 2023; accepted:
21 April, 2023; available on-line: 05 September, 2023

✉e-mail: iwockd@gmail.com

Abbreviations: BTK, Bruton’s Tyrosine Kinase; RA, Rheumatoid Arthritis

Introduction

Rheumatoid Arthritis is an inflammatory auto-immune disorder of joints (van Delft & Huizinga, 2020). The inflammatory process enhances as new blood vessels originate and supply different growth factors, oxygen,and cytokines to the cells which leads to the development of irregular fibrous tissues and ultimately causesthe destruction of joints (Nakkala et al., 2021). A ratio of 1:3 between male and female susceptibility can be seen in previous studies. The worldwide prevalence of RA is 0.5–1% depending on geographical changes. The studies conducted in Pakistan and India represent the RA prevalence as 0.5% and 0.2–1% respectively (Bahari et al., 2021). Population diversity is responsible for the higher prevalence of RA in India (Otón & Carmona, 2019). There are some influential factors of RA that play a significant role in the susceptibility of RA like genetic factors and environmental factors. Almost 60% of the susceptibility is caused due to genetic factors. Although further studies are required to explain the role of environmental factors in the onset of RA, however, it is reported that smoking, dietary contents, micro-organisms, and silica exposure have a detrimental effect and they can also exacerbate the condition of RA patients (Ganesan et al., 2020). Dietary contents may also have a role in the severity of the disease. The majority of patients claimed that eating foods like dairy, red meat, green leafy vegetables, etc. made their medical state worse. Red meat contains high amounts of protein and fats whichenhance the pro-inflammatory process resulting in increasedseverity of the disease in patients with RA (Karami et al., 2019).

There are evidence and studies which support that many autoimmune ailments like rheumatoid arthritis along with systemic lupus erythematosus (SLE) and multiple sclerosis are linked with the VEGF gene (Martins & Fonseca, 2019). VEGF gene has eight exons with alternate splicing, and it is present on chromosome 6p 12. During embryonic developmental stages, the multiplication and migration of endothelial cells are induced by VEGF, and have crucial involvement in tumour development, angiogenesis, and wound healing (Jutley et al., 2017). In the synovial fluid of obstructed joints of RA patient, enhanced expression of VEGF is observed. The enhanced expression also results in inflammation, changes in joints, and different pathological conditions in patients along with angiogenesis. The severity of the disorder or disease can be determined by the VEGF level in the serum of patients. An elevated level of VEGF has been recorded in patients suffering from RA as compared to controls (healthy individuals) and osteoarthritis patients (Philippou et al., 2021). SNPs that are known and also illustrate a significant role in the expression of VEGF proteins are VEGF-2578 A/C (rs 699947), +405 G/C, –460 C/T +936 C/T (Aterido et al., 2017). According to a study in Korea, an association is seen between VEGF SNPs and RA (Qindeel et al., 2020).

Although VEGF is very significant to proliferate cartilage and bone cells but in RA auto-activation of B-cells produces chemicals that damage these cells so, this auto-activity of the B-cells must be controlled (Goswami et al., 2022). Their activation is mediated by a regulatory protein Burton’s Tyrosine Kinase. This protein stimulates B-cells to produce cytokines and chemokines. In a healthy individual, synoviocytes produce lubrication and nutrition for the surrounding cartilage tissue, and the synovium has a minimal number of cellular infiltrates. In RA, B-cells infiltrate the synovium and release cytokines, chemokines, and enzymes that promote joint deterioration and inflammation (Wang et al., 2021). It causes the synovium to enlarge, causing synoviocyte production and inflammatory cell penetration to form a pannus that eventually invades the nearby bone and cartilage. B-cell receptor-dependent cell proliferation is inhibited by BTK inhibition, which ultimately results in a decrease in inflammatory cytokines. Targeting the BTK’s activity may therefore result in the loss of B cell signaling, which in turn may open up a treatment option for RA. The cytoplasmic, non-receptor tyrosine kinase BTK transmits signals via numerous cell surface molecules. All hematopoietic cell types, except for T, NK, and plasma cells, express it (Miao et al., 2020). BTK communicates with chemokine receptors, Fc receptors, Toll-like receptors, B cells receptors, CD40, and B cells receptors. These activated proteins damage tissues, especially joints. A high level of BTK causes autoimmunity while a low level of BTK helps in improving autoimmune diseases like RA (De Vries et al., 2019). The abnormal activity of BTK might be ceased via various inhibitor synthetic as well as natural bioactive compounds. The core aim of this study was to find out VEGF SNP in the Pakistani population and possible chemotherapeutic drugs.

Methodology

Sampling

Samples of blood from 100 healthy individuals (controls) and 100 RA patients who were positive for Rheumatoid Factor were collected from two major cities of Pakistan. These blood samples were collected from D.H.Q Hospital Toba Tek Singh, Sheikh Zaid Hospital, Lahore, and Fatima Memorial Hospital Lahore. The participant’s approval was taken on an informed consent form and their disease history was recorded on a Performa (covered all aspects related to disease and the risk factors associated with RA). Afterwards the experimental work was carried out at the Institute of Microbiology and Molecular Genetics of the University of the Punjab, Lahore-Pakistan.

IRB approval

The ethical approval for this research study was granted by Departmental Research Ethics and Biosafety Committee under the issuance certificate D/2302/MMG, dated 6-12-2019.

DNA Isolation and Amplification

The fast DNA extraction method makes it simpler to extract DNA from blood and produces a significant volume of non-degraded DNA. The application of triton X-100 prevents DNA degradation (Shahraki et al., 2022). MgCl2 acts as a buffering agent in the red blood cell lysis buffer, whereas EDTA acts as a chelating agent, stops DNA deterioration, and concentrates DNA. Nuclear lysis buffer and red cell lysis buffer both lysed red blood cells, break the nuclear wall and release the nuclear material inside. SDS was added to the lysis buffer to solubilize proteins and lipids, and chloroform was used to breakdown proteins and purify DNA. Chloroform was used to separate the organic phase from the aqueous phase while maintaining DNA protection in the latter. The precipitation of DNA was accomplished using ethanol. The first procedure involved transferring 500 µl of blood into an Eppendorf tube and then adding 1000 µl of RBC lysis buffer. The Eppendorf was centrifuged for 2 minutes at 7000 rpm(revolutions per minute) after being lightly inverted or gently shaken. After that, the supernatant was removed, and the Eppendorf tube containing the pellet received another 1000 µl addition of RBCs lysis buffer. Once more, the particle was centrifuged at 7000 rpm for 2 minutes, three to four times, until the haemoglobin was eliminated. After RBC lysis buffer was added, the tube was vortexed to break up the pellet and remove the haemoglobin, revealing that the particle exclusively contained WBCs. The tube was then positioned downward on the tissue paper for a brief period of time. The Eppendorf tube was then filled with 600 µl of chloroform (kept at 4°C), 400 µl of nucleic lysis buffer, 100 µl of NaCl, and 400 µl of lysis buffer (kept at 4°C). After that, centrifugation took place for two minutes at 7000 rpm. The result was two phases, an organic phase and an aqueous phase, separated by a layer. Then, 800 µl of 100% ethanol (pre-chilled and maintained at –20oC) was added to the Eppendorf tube containing the supernatant after 400 µl of the supernatant had been emptied into another Eppendorf tube. After the vortex, the DNA manifested itself in the aqueous phase as a white thread-like structure. The tube was centrifuged at 12000 rpm for one minute, the supernatant was removed, and the tube was dried at room temperature (on tissue paper). After adding 100 µl of T.E. buffer, the tube was vortexed. The DNA-filled Eppendorf tube was then kept at –20°C. The stock solution for the primers was created using a 1:10 ratio.

50 µl were used to conduct the PCR reaction. Forward and reverse primers, genomic DNA, 10 µl of nuclease-free water, and 25 µl of the master mix were all added. The DNA strand was first denaturized at 95°C for 5 minutes, and then it was finally denaturized at 95°C for 30 seconds. For rs699947, the DNA strand was annealed at 67.3°C for 30 seconds, extended at 72°C for 1 minute, and finally extended for 5 minutes at 72°C. The PCR was run for 30 cycles. The PCR products had lengths of 183 bp and 299 bp for rs 699947 and were kept at a temperature of 4oC. On electrophoresis on 1.3% agarose gel, the amplified products were seen. The size of the PCR products was measured using Thermo Scientific’s quick ruler low-range DNA ladder (SM1103).

In-Silico Screening of BTK Inhibitor Chemicals

Plants have a variety of bioactive compounds that can block the activity of BTK to control the auto-activation of the B-cell, chemokines, and cytokines. Screening of these phytochemicals has been done by using computational tools and online databases. To avoid a huge number of resources, funding, and wastage of time to sort out a particular chemical as a BTK inhibitor, in-silico screening is the best approach to screen out target bioactive chemicals. The target protein BTK was found in PDB to have a 3D structure (ID-6J6M). Using PyMol (version 2.5.2), water molecules and already-bound ligands were removed (Hari, 2017). Target ligand information was gathered from a variety of sources, and 3D ligand structures were acquired in SDF format from online chemical databases like Zinc 15, PubChem, and CHEMBL database. Then, using Swiss ADME and Lipinski’s Rule of Five, the ligands’ drug resemblance was evaluated. Online SMILES Translator (nih.gov) was used to convert the SDF format of the ligands to the PDB format, and Auto Dock Vina (version 1.5.7) was used to convert the PDB to the PDBQT format and then docking by using the command prompt (Samdani & Vetrivel, 2018).

Results

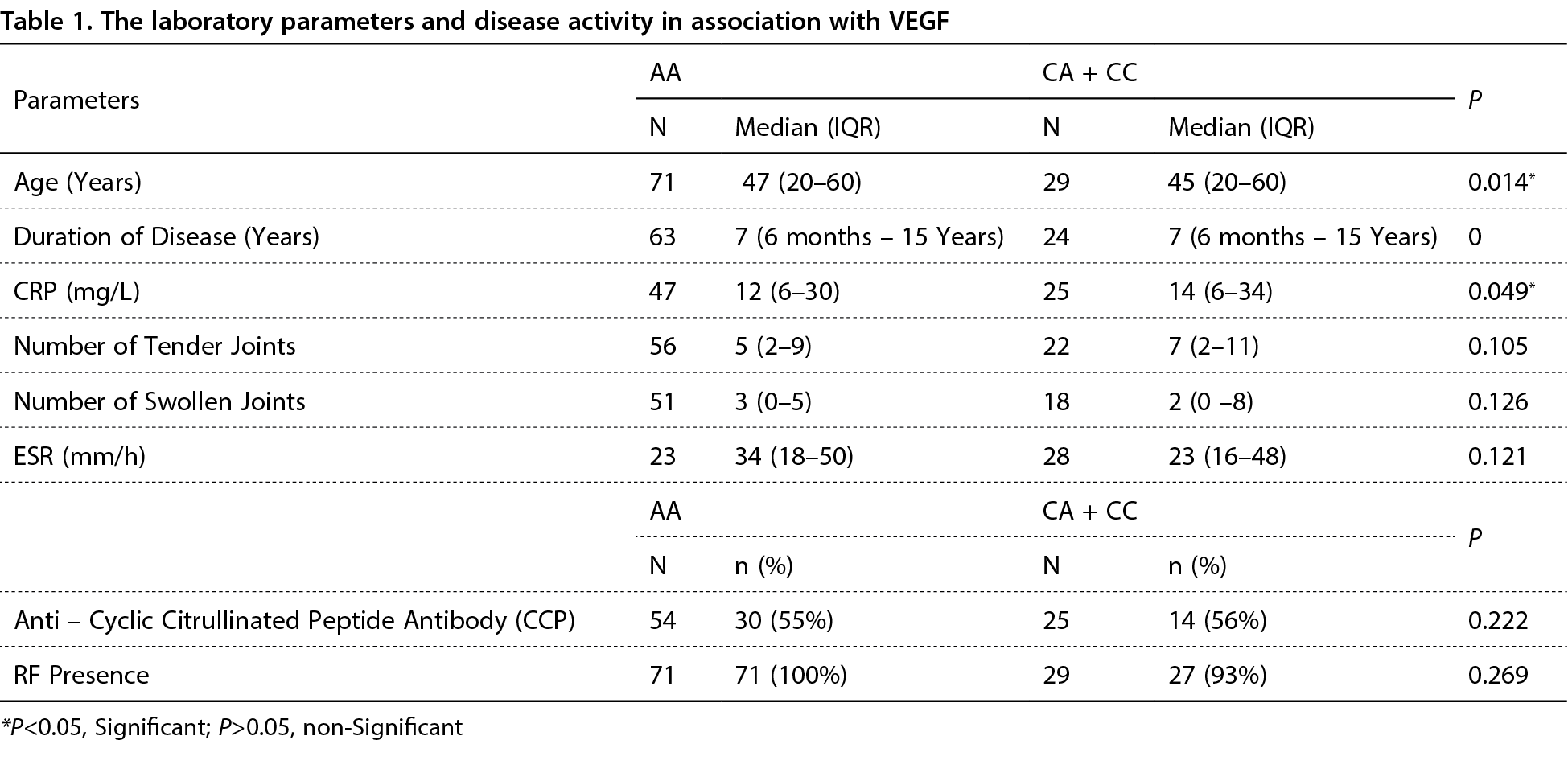

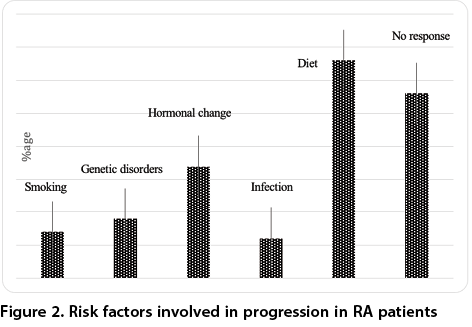

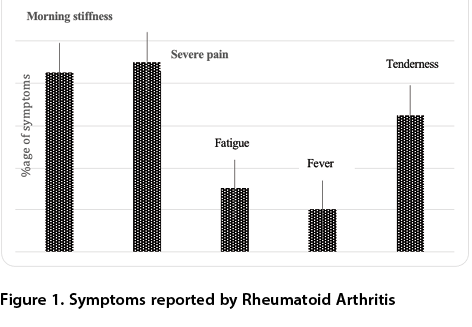

Patients were diagnosed according to the criteria defined AmericanCollege of Rheumatology (ACR) in 2010. Among those 100 patients, males were only 33% while females constitute a major proportion (67%) of the study. The common symptoms in RA patients, whose blood samples were used, found morning stiffness (82%), tenderness in the joints (78%), fatigue (25%), severe pain in joints (85%), fever (20%), and joint Swelling (63%) (Fig. 1) (Ganesan et al., 2020). The risk factors associated with RA were genetic disorder (9%), smoking (7%), diet (33%), hormonal changes (17%), other infectious diseases (6%), and no response (28%) (Fig. 2).

Single Nucleotide Polymorphism in DNA due to extrinsic or intrinsic factors has both deleterious and beneficial effects depending on its nature. In this study, a base change in the VEGF gene in different populations showed significant results in the progression of rheumatoid arthritis. In Table 1, a possible linkage between VEGF polymorphism with RA disease activity was analyzed based on the demographic and clinical condition of the patients. The alleles of the VEGF gene were correlated with disease duration, rheumatoid factor, age of patients and C-reactive protein level.

The appearance of 183bp DNA bands on agarose gel electrophoresis indicated A allele (Fig. 3) and 299bp DNA bands represented C allele (Fig. 4), and the DNA ladder used was Fermantas SM1103. In VEGF, C allele functions as a major allele and A allele as a minor allele. The frequencies of genotype and allele were considerably different in patients and controls. The percentage of AA genotype in RA patients and in controls was 71% and 39% respectively. However, the percentage of CC genotype in RA patients and control was 23% and 52% respectively.

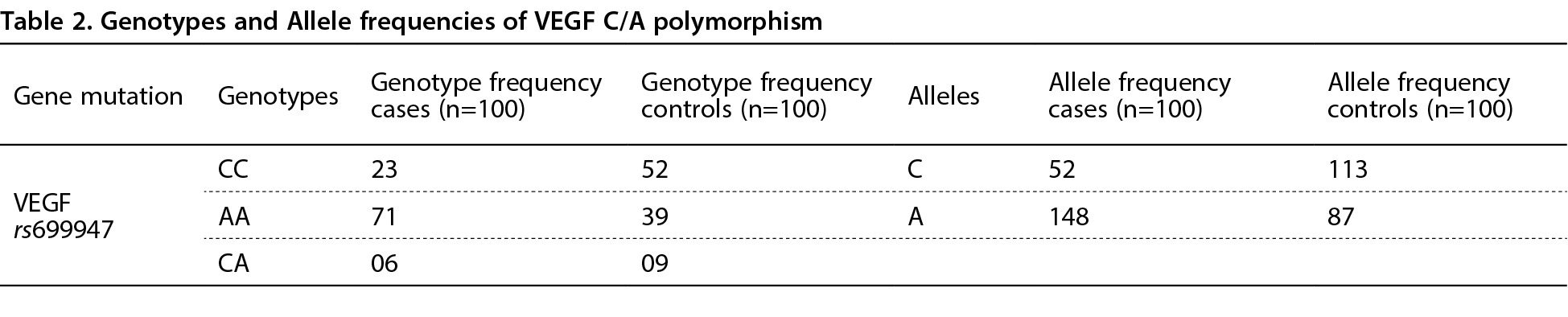

Moreover, in heterogeneous conditions where both alleles (A and C) were present, the percentage of AC genetic constitution in patients and controls was 06% and 09% respectively. Hence, the above data endorsed that VEGF A/C polymorphism hasa role in association with the risk of rheumatoid arthritis. Table 2 and Table 3 revealed different frequencies of genotypes and frequencies of alleles in controls and patients. Our findings suggested that the AA genotype of VEGF was observed considerably higher in RA patients but lower in healthy individuals that depicted the role of SNPs in the severity of RA.

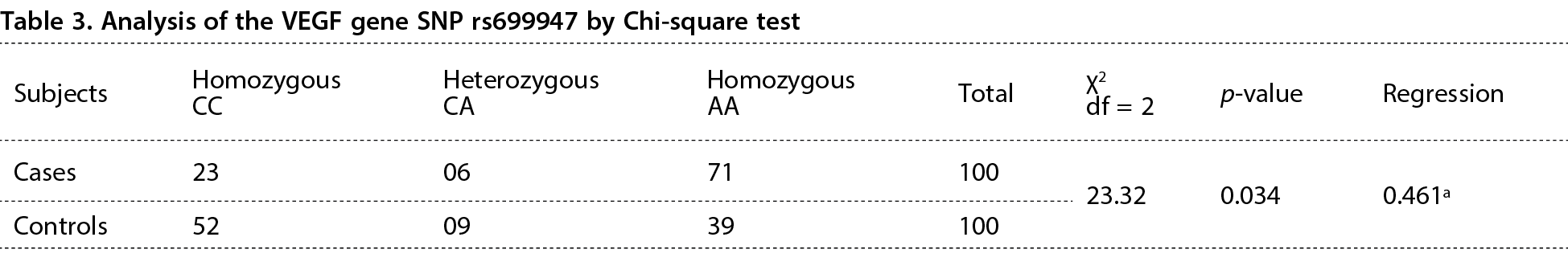

The chi-square test was done by keeping a degree of freedom (df) value 2, the p-value was 0.034 which is less than 0.05, and the regression value was 0.461. All these values showed that the VEGF gene SNP has a significant influence on rheumatoid arthritis progression.

Bioactive Compounds to Inhibit BTK Activity

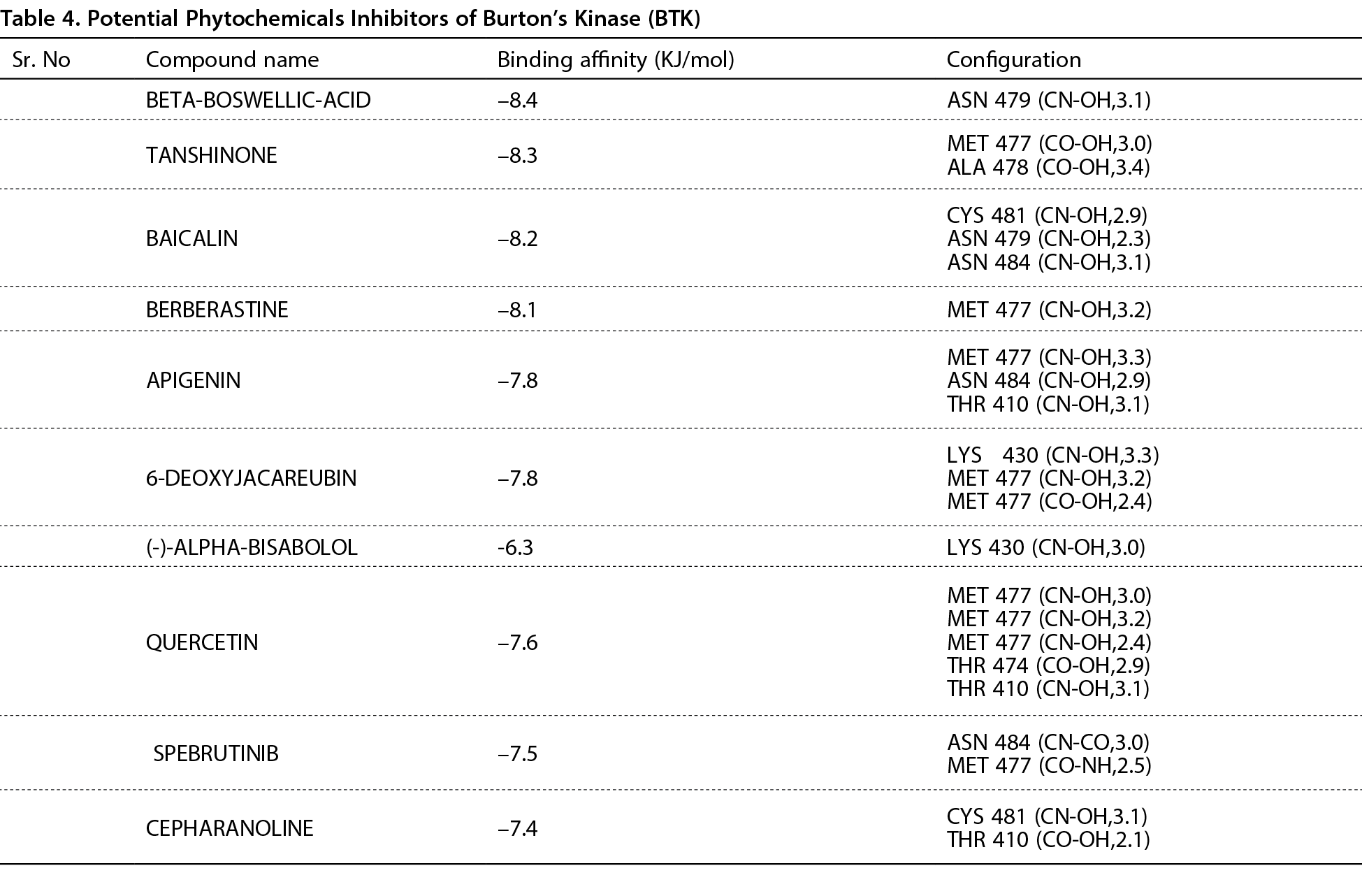

Plants have a variety of bioactive compounds capable of curing rheumatoid arthritis. These compounds can be screened out in-silico by using different computational tools. The results of docked compounds have been given in Tables 4 and 5 showing binding affinities to block BTK. Protein-ligands docking was done by targeting THR 474, GLU 475, MET 477, and CYS 481 residues of BTK. The results were observed in PyMol (Version: 2.5.2) and noted binding affinities in KJ/mol shown in Fig. 5. The Pleckstrin homology (PH) domain, the Tec homology (TH) domain, the Src homology (SH3) domain, the SH2 domain, and the C-terminal region containing kinase activity are the five sections that make up BTK, according to its structures. BTK inhibitors can be divided into two categories based on how they bind to BTK and how their chemical scaffold structures and mechanisms of action. The amino acid residue CYS 481 in the ATP-binding region of BTK is a covalently bonded target for irreversible BTK inhibitors (Wang et al., 2021). The other class of BTK inhibitors are reversible inhibitors, which bind to an inactive form of the kinase by accessing the particular SH3 pocket of BTK. In order to treat RA, phytochemicals are delivered as drugs via nanoparticles, acting as a BTK inhibitor (Fig. 6).

Discussion

The VEGF gene has a prominent role in the onset of many other autoimmune diseases. There are almost thirteen studies that depict the evidence that VEGF was higher in RA patients in contrast to healthy individuals, and hence are in favour of an association between RA and the VEGF gene. But contrary to that there are also many studies that deny this and report no association among VEGF and the risk of RA like + 936 T/C, VEGF-634 C/G, -1154 A/G and –2578 A/C polymorphisms have no relation with RA. In another study, a significant association was observed between VEGF (rs 699947) SNPs and RA (Paradowska-Gorycka et al., 2016). The studies show a relationship between the VEGF gene and RA in terms of severity along with overlapping of various other disease parameters i.e., activity of disease, functional disability, and joint damage. The main objective behind this work was to access the risk of single nucleotide polymorphism of the VEGF gene in RA patients. Two alleles A and C were studied, and their frequency was determined. It had been shown that allele A frequency was significantly higher than that of allele C in RA-positive patients. On the other hand, controls have more frequency of allele C as compared to allele A. Hence it depicts that allele C plays a minor role in the risk or severity of the RA disease. Recent studies also indicated that allele A of VEGF (rs699947) can increase the risk of RA; however, only a protective role is seen in the case of allele C (Saravani et al., 2019). A low level of VEGF is due to allele A and its genotype AA can be its risk factor. While in the case of atherosclerosis, allele C has a protective effect. A relationship has been observed between low serum level and the AA genotype of VEGF in RA patients, as illustrated by a cohort study of 419 patients (Laurindo et al., 2022). Similarly, another research study elucidates that functional polymorphism of VEGF (A/C) may increase the risk of RA in older and Anti-Citrullinated Peptide Antibody negative patients (Arleevskaya et al., 2021). There are some other factors that may be involved in the progression of RA like auto-activation of BTK protein, age, and CRP (Alam et al., 2017).

Rheumatoid arthritis is a multifactorial joint disorder, and VEGF SNP is one of those factors at a genetic level and abnormally activated BTK protein is another one. Only we found that mutation in this gene causes disturbance in angiogenesis proliferation and cartilage repair which is the major possible effect of a mutated VEGF gene. On the other hand, targeting the BTK protein is a phenotypic therapeutic approach which is involved in the destruction of joint lining. So, it is better to cease the damaging effects of this abnormally activated BTK protein to protect the remaining joints’ assets. The effect of SNP on the VEGF product protein is the formation of abnormal heparin-binding protein which does not involve in repairing the cartilage and in the proliferation of new blood vessels (Huang and Wang, 2020).

Tanshinone showed binding affinity -8.3 (kJ/mol) at MET 477 (CO-OH,3.0), and ALA 478 (CO-OH,3.4). This chemical is extracted from red sage or commonly known as behmansurkh which is a root of Salvia miltiorrhiza and belongs to the Labiatae family of plant kingdom native to China and Japan (Li et al., 2021). For 2000 years ago in China, it is also being used to treat cardiovascular and cerebrovascular disorders, functions of blood flowing into the heart and liver by removing blood stasis according to Traditional Chinese Medicine (TCM) (Deng et al., 2019).

Baicalin showed binding energy of -8.2 (kJ/mol) at CYS 481 (CN-OH,2.9), ASN 479 (CN-OH,2.3), ASN 484 (CN-OH,3.1) residues. It is a flavonoid phytochemical obtained from the root of Scutellaria baicalensis belonging to the mint family of flowering plants. This plant is commonly known as Chinese Skullcap or Huangqin. It has powerful antioxidant properties greater than ascorbic acid which can scavenge toxic free radicals like superoxide ion, hydroxyl ion, hydroquinone, and polycyclic aromatic compounds (Shakya et al., 2023). It has anti-inflammatory, anti-allergic, anti-bacterial, anti-hypertensive, and food condiment (Ma et al., 2021). Berberastine showed binding energy of –8.1 (KJ/mol) at MET 477 (CN-OH,3.2). It is a phytochemical obtained from the rhizome of Hydrastis canadensis belonging to the Ranunculaceae family of angiosperm plants. It is utilized as a yellow dye, astringent, and insect repellent. Goldenseal contains various alkaloids like hydrastine, berberine, canadine, tetrahydroberberastine and berberastine which have great pharmaceutical importance (Brullo et al., 2021).

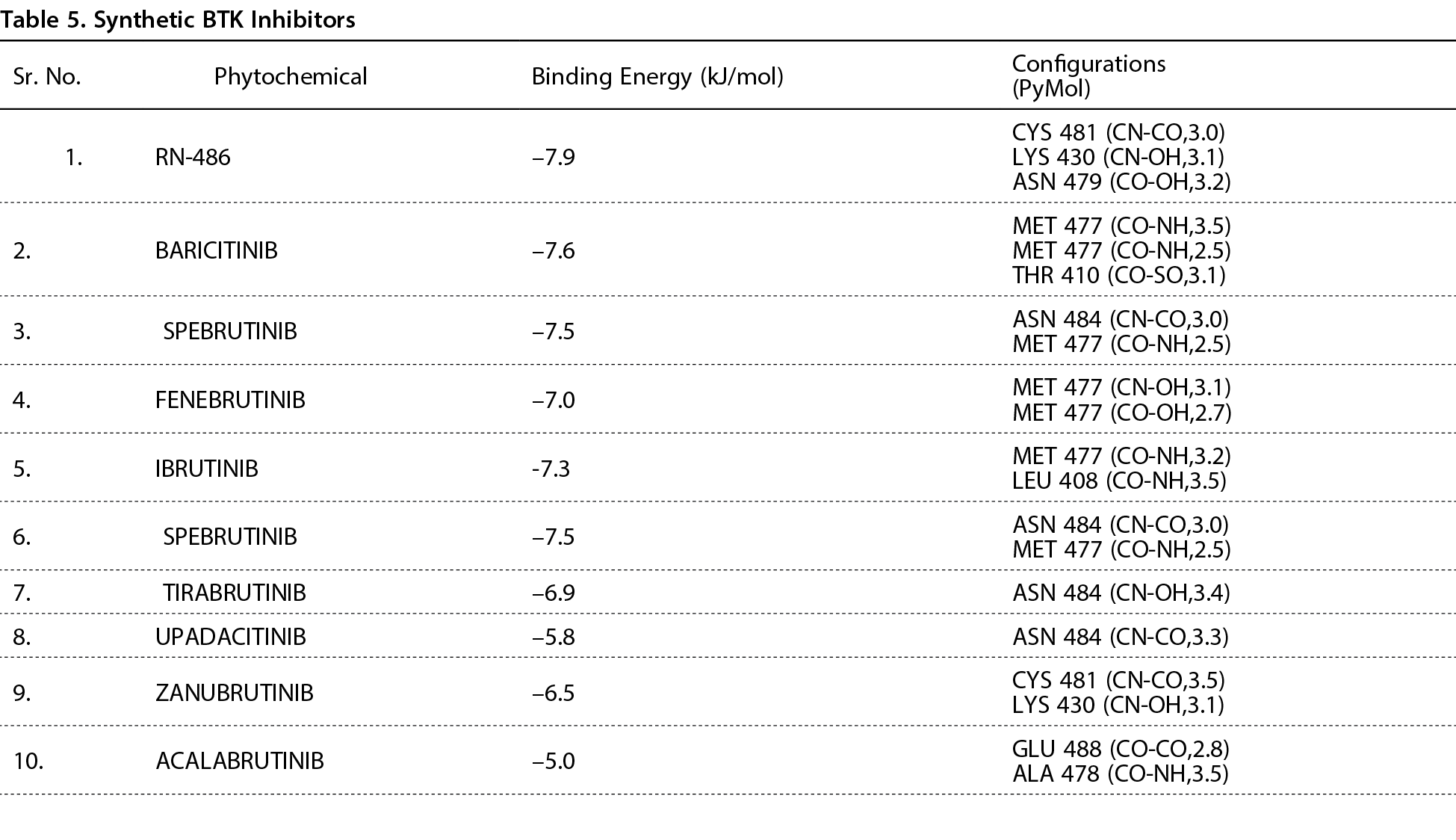

RN-486 is a synthetic chemical under development which showed binding energy of –7.9 (kJ/mol) at CYS 481 (CN-CO,3.0), LYS 430 (CN-OH,3.1), and ASN 479 (CO-OH,3.2). It binds directly to CYS 481 amino acid to inhibit the enzyme, Bruton’s Tyrosine Kinase. RN-486 inhibits inflammation of joints and other systemic inflammation alone or along with methotrexate. It potentially inhibits BTK as small molecule disease-modifying drugs to treat rheumatoid arthritis and other auto-immune disorders (Sakthivel and Habeeb, 2018). It is a potent reversible BTK inhibitor. It also blocks the signals of BCR to inhibit phosphorylation of both BTK and PLC-2 in B-cells. RN-486 shows similar activities in both human and rodent models to prevent type I and type III hypersensitivity responses effectively (Arneson et al., 2021). Ibrutinib is a commercially available synthetic drug, but it has some side effects like diarrhea, upper respiratory tract infection, bleeding, fatigue and cardiac side effects. But RN-486 is a synthetic and under development chemical which has only in-silico trials as compared to phytochemicals which showed more binding affinity than RN-486 to inhibit BTK. Moreover, synthetic drugs take more time and expense, but phytochemicals are ready-made with less or no side effects at the very cheapest cost and can be extracted from plants (Aziz et al., 2023a; Naveed et al., 2023a; Naveed et al., 2023b; Naveed et al., 2023c; Naveed et al., 2022a; Naveed et al., 2022b).

Conclusions

From this study, it is concluded that AA and CC were the most common genotypes. The allele A of VEGF (rs699947) can increase the risk of RA; however, only a protective role is seen in the case of allele C. There are some possible chemotherapeutic drugs in plants like beta boswellic acid, tanshinone, baicalin etc. that can be used via nanoparticle drug delivery to cure RA by inhibiting BTK, auto-activation of B-cells and cytokines that damage cartilage. There are some limitations of this study in that the genetic variability cannot be accessed entirely by the polymorphism on a functional basis because RA is an autoimmune and multifactorial disease, and the genome of the Pakistani population is relatively homogenous because of the cousin marriages.

Declarations

Author Contributions. Conceptualization, N.H, M.A, M.M, A.A.N and A.S..; methodology, N.H, M.A, M.M, A.A.N and A.S software, T.A; validation, A.A.S; formal analysis, T.A.; investigation, N.H, M.A, M.M, A.A.N and A.S ; resources, M.A and A.A.S.; data curation, T.A.; writing—original draft preparation, T.A and A.S.; writing—review and editing, M.E.A, A.F.A and A.S; visualization, N.H; supervision, T.A.; project administration, A.A.S and M.A; funding acquisition, T.A

Funding. This research work received no external funding.

Acknowledgments. The authors greatly acknowledge and express their gratitude to the Researchers Support- ing Project number (RSP2023R335) King Saud Univer- sity, Riyadh, Saudi Arabia.

Conflicts of Interest. The authors declare no conflict of interest.

References

Aziz T, Ihsan F, Ali Khan A, Ur Rahman S, Zamani GY, Alharbi M, Alshammari A, Alasmari AF (2023) Assessing the pharmacological and biochemical effects of Salvia hispanica (Chia seed) against oxidized Helianthus annuus (sunflower) oil in selected animals. Acta Biochim Pol 70: 211–218. https://doi.org/10.18388/abp.2020_6621.

Alam J, Jantan I, Bukhari SNA (2017) Rheumatoid arthritis: recent advances on its etiology, role of cytokines and pharmacotherapy. Biomed Pharmacotherap 92: 615–633. https://doi.org/10.1016/j.biopha.2017.05.055

Arleevskaya M, Takha E, Petrov S, Kazarian G, Novikov A, Larionova R, Renaudineau Y (2021) Causal risk and protective factors in rheumatoid arthritis: A genetic update. J Transl Autoimmun 4: 100–119. https://doi.org/10.1016/j.jtauto.2021.100119

Arneson LC, KJ Carroll, EM Ruderman, (2021) Bruton’s tyrosine kinase inhibition for the treatment of rheumatoid arthritis. ImmunoTargets Therap 10: 333–342. https://doi.org/10.2147/itt.s288550

Aterido A, Julià A, Carreira P, Blanco R, López-Longo, JJ, Venegas JJP, Marsal S (2017) Genome-wide pathway analysis identifies VEGF pathway association with oral ulceration in systemic lupus erythematosus. Arthritis Res Therap 19: 1–11. https://doi.org/10.1186/s13075-017-1345-6

Bahari G, Tabasi F, Hashemi M, Zakeri Z, Taheri M (2021) Association of P2X7 receptor genetic polymorphisms and expression with rheumatoid arthritis susceptibility in a sample of the Iranian population: a case-control study. Clin Rheumatol 40: 3115–3126. https://doi.org/10.1007/s10067-021-05645-3

Brullo C, Villa C, Tasso B, Russo E, Spallarossa A (2021) Btk Inhibitors: a medicinal chemistry and drug delivery perspective. Int J Mol Sci 22: 7641. https://doi.org/10.3390/ijms22147641

De Vries TJ, El Bakkali I, Kamradt T, Schett G, Jansen ID, D’Amelio P (2019) What are the peripheral blood determinants for increased osteoclast formation in the various inflammatory diseases associated with bone loss?. Front Immunol 10: 505. https://doi.org/10.3389/fimmu.2019.00505

Deng C, Hao X, Shi M, Fu R, Wang Y, Zhang Y, Kai G (2019) Tanshinone production could be increased by the expression of SmWRKY2 in Salvia miltiorrhiza hairy roots. Plant Sci 284: 1–8. https://doi.org/10.1016/j.plantsci.2019.03.007

Ganesan S, Gaur GS, Negi VS, Sharma VK, Pal GK (2020) Effect of yoga therapy on disease activity, inflammatory markers, and heart rate variability in patients with rheumatoid arthritis. J Alternat CompMed 26: 501–507. https://doi.org/10.1089/acm.2019.0228

Goswami AG, Basu S, Huda F, Pant J, Ghosh Kar A, Banerjee T, Shukla VK (2022) An appraisal of vascular endothelial growth factor (VEGF): the dynamic molecule of wound healing and its current clinical applications. Growth Factors 40: 73–88. https://doi.org/10.1080/08977194.2022.2074843

Hari S (2019) In silico molecular docking and ADME/T analysis of plant compounds against IL17A and IL18 targets in gouty arthritis. J Appl Pharm Sci 9: 018–026. http://dx.doi.org/10.7324/JAPS.2019.90703

Huang L, Wang L (2020) Association between VEGF gene polymorphisms (11 sites) and polycystic ovary syndrome risk. Biosci Rep 40: BSR20191691. https://doi.org/10.1042/bsr20191691

Jutley GS, Latif ZP, Raza K (2017) Symptoms in individuals at risk of rheumatoid arthritis. Best Practice Res Clin Rheumatol 31: 59–70. https://doi.org/10.1016/j.berh.2017.09.016

Karami J, Aslani S, Jamshidi A, Garshasbi M, Mahmoudi M (2019) Genetic implications in the pathogenesis of rheumatoid arthritis; an updated review. Gene 702: 8–16. https://doi.org/10.1016/j.gene.2019.03.033

Laurindo LF, de Maio, MC, Barbalho SM, Guiguer EL, Araújo AC, de Alvares Goulart R, Bechara MD (2022) Organokines in rheumatoid arthritis: A critical review. Int J Mol Sci 23: 6193. https://doi.org/10.3390/ijms23116193

Li H, Gao C, Liu C, Liu L, Zhuang J, Yang J, Wu, J (2021) A review of the biological activity and pharmacology of cryptotanshinone, an important active constituent in Danshen. Biomed Pharmacotherap 137: 111332. https://doi.org/10.1016/j.biopha.2021.111332

Ma XD, Zhang XG, Guo SJ, Ma GY, Liu WJ, Wang N, Su Y (2021) Application of enzyme-assisted extraction of baicalin from Scutellaria baicalensis Georgi. Prep Biochem Biotechnol 51: 241–251. https://doi.org/10.1080/10826068.2020.1808791

Martins P, Fonseca JE (2019) How to investigate: pre-clinical rheumatoid arthritis. Best Practice Res Clin Rheumatol 33: 101438. https://doi.org/10.1016/j.berh.2019.101438

Miao R, Lim VY, Kothapalli N, Ma Y, Fossati J, Zehentmeier S, Pereira JP (2020) Hematopoietic stem cell niches and signals controlling immune cell development and maintenance of immunological memory. Front Immunol 11: 600127. https://doi.org/10.3389/fimmu.2020.600127

Nakkala JR, Li Z, Ahmad W, Wang K, Gao, C (2021) Immunomodulatory biomaterials and their application in therapies for chronic inflammation-related diseases. Acta Biomaterialia 123: 1–30. https://doi.org/10.1016/j.actbio.2021.01.025

Naveed M, Waseem M, Aziz T, Hassan Ju, Makhdoom SI, Ali U, Alharbi M, Alsahammari A (2023) Identification of bacterial strains and development of anmRNA-based vaccine to combat antibiotic resistance in Staphylococcus aureus via in vitro and in silico approaches. Biomedicines 11: 1039. https://doi.org/10.3390/biomedicines11041039

Naveed M, Shabbir MA, Ain NU, Javed K, Mahmood S, Aziz T, Khan AA, Nabi G, Shahzad M, Alharbi ME, Alharb, M, Alshammari A (2023) Chain-engineering-based de novo drug design against MPXVgp169 virulent protein of monkeypox virus: a molecular modification approach. Bioengineering 10: 11. https://doi.org/10.3390/bioengineering10010011

Naveed M, Shabbir MA, Ain NU, Javed K, Shabbir MA, Alharb, M, Alshammari A., Alasmari AF (2023) Artificial intelligence assisted pharmacophore design for philadelphia chromosome-positive leukemia with gamma-tocotrienol: a toxicity comparison approach with Asciminib. Biomedicines 11: 1041. https://doi.org/10.3390/biomedicines11041041

Naveed M, Makhdoom SI, Ali U, Jabeen K, Aziz T, Khan AA.,Jamil S, Shahzad M, Alharbi M, Alshammari A (2022) Immunoinformatics approach to design multi-epitope-based vaccine against machupo virus taking viral nucleocapsid as a potential candidate. Vaccines 10: 1732. https://doi.org/10.3390/vaccines10101732

Naveed M, Sheraz M, Amin A, Waseem M, Aziz T, Khan AA, Ghani M, Shahzad M, Alruways MW, Dablool AS, Elazzazy AM, Almalki AA, Alamri AS, Alhomrani M (2022) Designing a novel peptide-based multi-epitope vaccine to evoke a robust immune response against pathogenic multidrug-resistant Providencia heimbachae. Vaccines 10: 1300. https://doi.org/10.3390/vaccines10081300

Otón T, Carmona L (2019) The epidemiology of established rheumatoid arthritis. Best Practice Res Clin Rheumatol 33: 101477. https://doi.org/10.1016/j.berh.2019.101477

Paradowska Gorycka A, Pawlik A, Romanowska Prochnicka K, Haladyj E, Malinowski D, Stypinska B, Olesinska, M (2016) Relationship between VEGF gene polymorphisms and serum VEGF protein levels in patients with rheumatoid arthritis. PloS One 11: e0160769. https://doi.org/10.1371/journal.pone.0160769

Philippou E, Petersson SD, Rodomar C, Nikiphorou E (2021) Rheumatoid arthritis and dietary interventions: systematic review of clinical trials. Nutrit Rev 79: 410–428. https://doi.org/10.1093/nutrit/nuaa033

Qindeel M, Ullah MH, Ahmed N (2020) Recent trends, challenges and future outlook of transdermal drug delivery systems for rheumatoid arthritis therapy. J Contr Rel 327: 595–615. https://doi.org/10.1016/j.jconrel.2020.09.016

Sakthivel S, Habeeb S (2018) Combined pharmacophore, virtual screening and molecular dynamics studies to identify Bruton’s tyrosine kinase inhibitors. J Biomol Struct Dynam 36: 4320–4337. https://doi.org/10.1080/07391102.2017.1415821

Samdani A, Vetrivel U (2018) POAP: A GNU parallel based multithreaded pipeline of open babel and AutoDock suite for boosted high throughput virtual screening. Comp Biol Chem 74: 39–48. https://doi.org/10.1016/j.compbiolchem.2018.02.012

Saravani M, Rokni M, Mehrbani M, Amirkhosravi A, Faramarz S, Fatemi, Nematollahi MH (2019) The evaluation of VEGF and HIF-1α gene polymorphisms and multiple sclerosis susceptibility. J Gene Med 21: e3132. https://doi.org/10.1002/jgm.3132

Shahraki S, Bideskan AE, Aslzare M, Tavakkoli M, Bahrami AR, Hosseinian S, Rad AK (2022) Decellularization with triton X-100 provides a suitable model for human kidney bioengineering using human mesenchymal stem cells. Life Sci 295: 120167. https://doi.org/10.1016/j.lfs.2021.120167

Shakya AK, Mallick B, Nandakumar KS (2023) A perspective on oral immunotherapeutic tools and strategies for autoimmune disorders. Vaccines 11: 1031. https://doi.org/10.3390/vaccines11061031

van Delft MA, Huizinga TW (2020) An overview of autoantibodies in rheumatoid arthritis. J Autoimmun 110: 102392. https://doi.org/10.1016/j.jaut.2019.102392

Wang Y, Wu H, Deng R (2021) Angiogenesis as a potential treatment strategy for rheumatoid arthritis. Eur J Pharmacol 910: 174500. https://doi.org/10.1016/j.ejphar.2021.174500
